Australian customers ordered 2 cyclones from our company.
The customer's requirements are as follows:
1) Voltage is 415V 3-phase 50Hz
2) With rotary valve (turn off fan)
3) Cyclone with glass window
4) Material: 304 stainless steel
5) 304 stainless steel sanitary clamp fittings for pipes (about 105mm or the nearest 4-inch standard pipe); quick-detachable flange for easy disassembly and cleaning;
And other requirements.

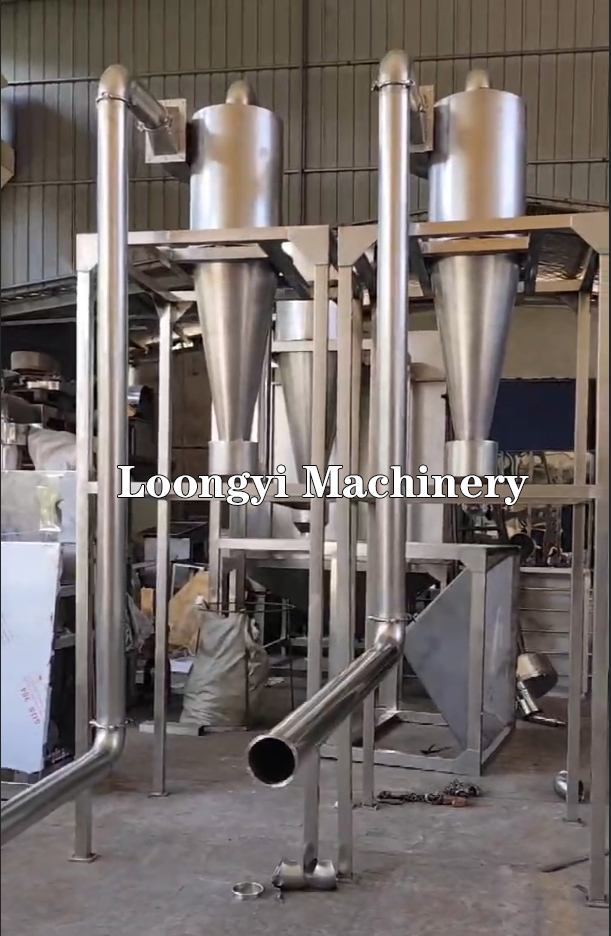

After 15 working days of production, 2 customized cyclones are ready.It will be sent to Australia.
The function of cyclone:
During the crushing process of Air Classifying Mill, Universal Grinder, etc., fine dust will be generated after the material is crushed. These dusts need to be separated to ensure the purity and quality of the product and prevent dust from polluting the environment. The cyclone separator uses the principle of centrifugal force to separate materials of different densities.
Specifically, when the crushed material and airflow enter the cyclone separator, a rotating airflow will be formed in the container. Since the dust particles are heavier than air, they will be affected by the centrifugal force and thrown to the inner wall of the container, and then slide along the wall to the collector below. The lighter airflow will go up and be discharged from the center of the separator.
In this way, the cyclone separator can effectively separate the dust from the airflow, thereby realizing the recovery and purification of the dust, ensuring the cleanliness and environmental protection of the production process.
In short, the cyclone separator plays a key collection and purification role in Ultra Fine Grinder, Universal Crusher and other pulverizers. It can separate qualified powder from the airflow and recycle or treat dust, ensuring the quality of the product and the cleanliness of the environment.
