CH Series Trough Type Mixer

As a whole stainless steel horizontal tank type mixer,this machine is widely used for mixing of powdery or paste material in chemical, pharmaceutical and food industries.

inquiry

Description

Product Introduction:

As a whole stainless steel horizontal tank type mixer,this machine is widely used for mixing of powdery or paste material in chemical, pharmaceutical and food industries.

Working Principle:

S type agitating paddle is rotated,through mechanical driving,which pushes the material turn repeatedly and mix uniformly.operate with electrical control,it can set mixing time to realize automatic stop and electric discharge upon expiration,thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.

Technical Data:

Model	CH-100	CH-200	CH-300	CH-400
Blades form	S-type single propeller
Volume	100	200	300	400
Agitation speed(rpm)	24	24	24	24
Mixing motor(kw)	2.2	4	7.5	11
Dumping motor(kw)	0.55	0.75	0.75	2.2
External dimension(mm)	1500 × 500 × 1000	1900 × 600 × 1200	2000 × 750 × 1250	2200 × 900 × 1300

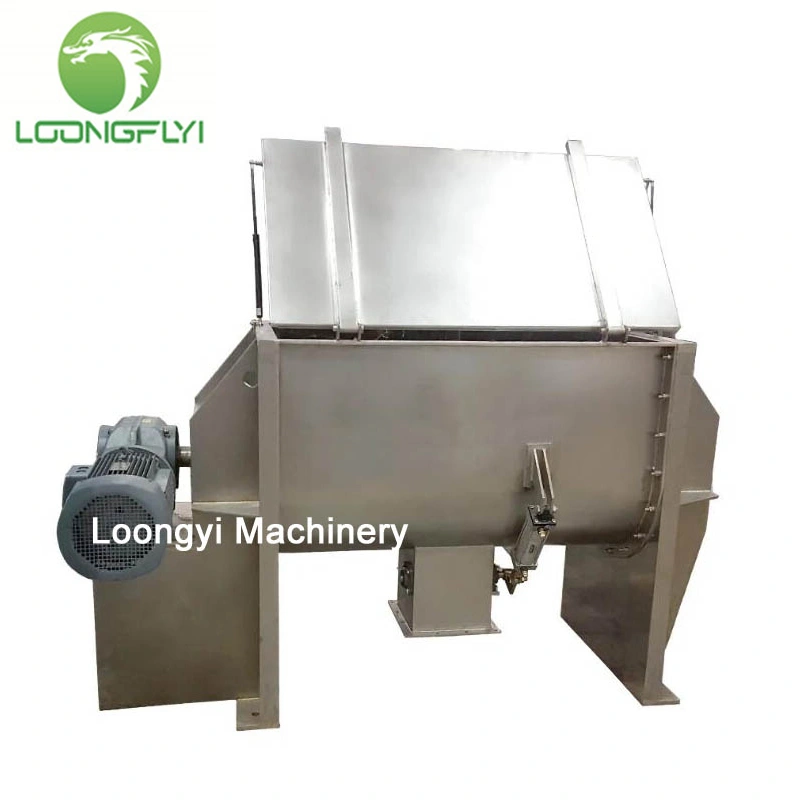

Product Pictures:

CH Series Trough Type Mixer
