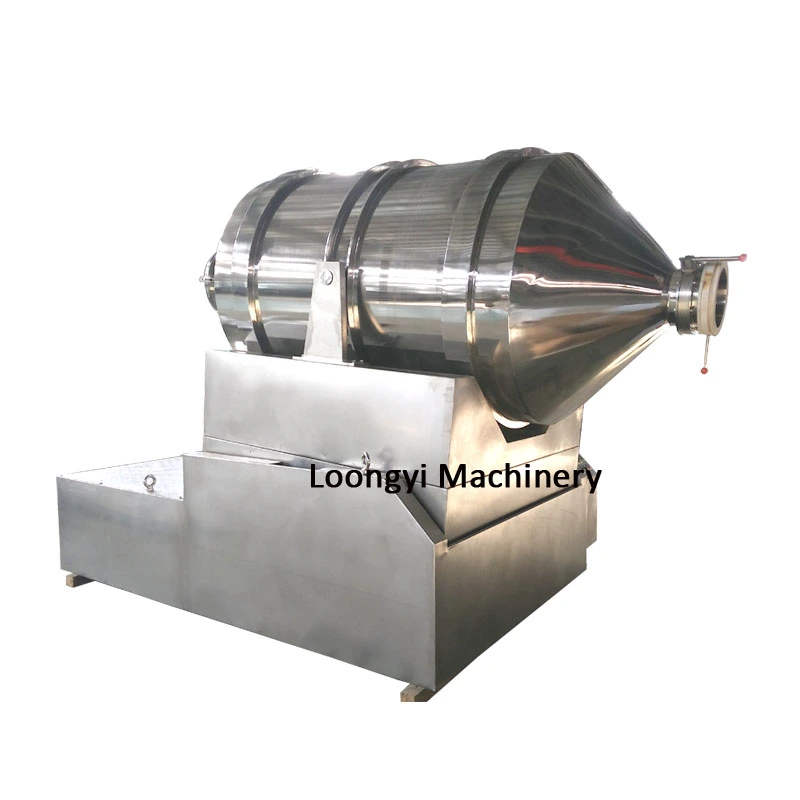

Chemical dry cereal starch powder mixer machine dye mixing machine

Description

Product Introduction:

This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative industries.

Features:

The mixing tank is a cylinder-shape barrel without any dasher inside, which makes the self-rotation around its symmetry axis and also produces convert swing movement around its plane axis synchronized. Therefore, the target materials inside of the barrel could be mixed diffusely and moveably with the features of short mixing time, high uniformity, and grinding and mixing at same time.This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative industries.

Technical Data:

Type	Volume (L)	Feed Ratio	Feed Weight (kg)	Overall dimension(mm)						Power(kw)
Type	Volume (L)	Feed Ratio	Feed Weight (kg)	A	B	C	D	M	H	Ture	Sway
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	78	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	210	5000	4400	18.5	15

EYH Two-dimensional Motion Mixer
