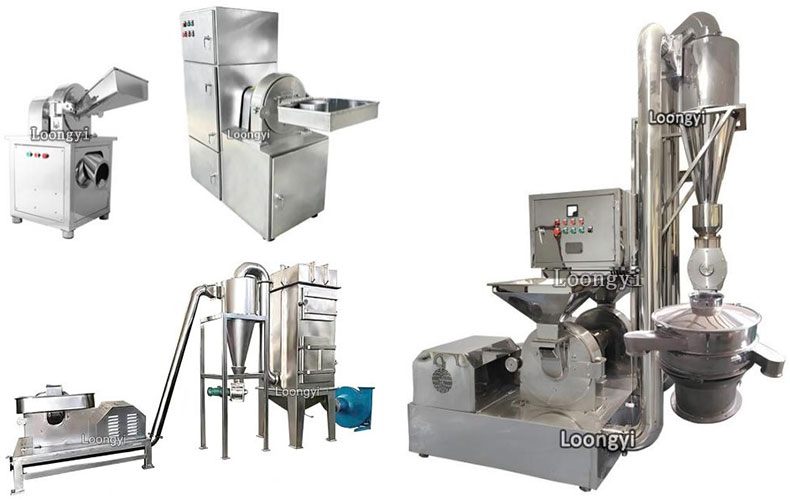

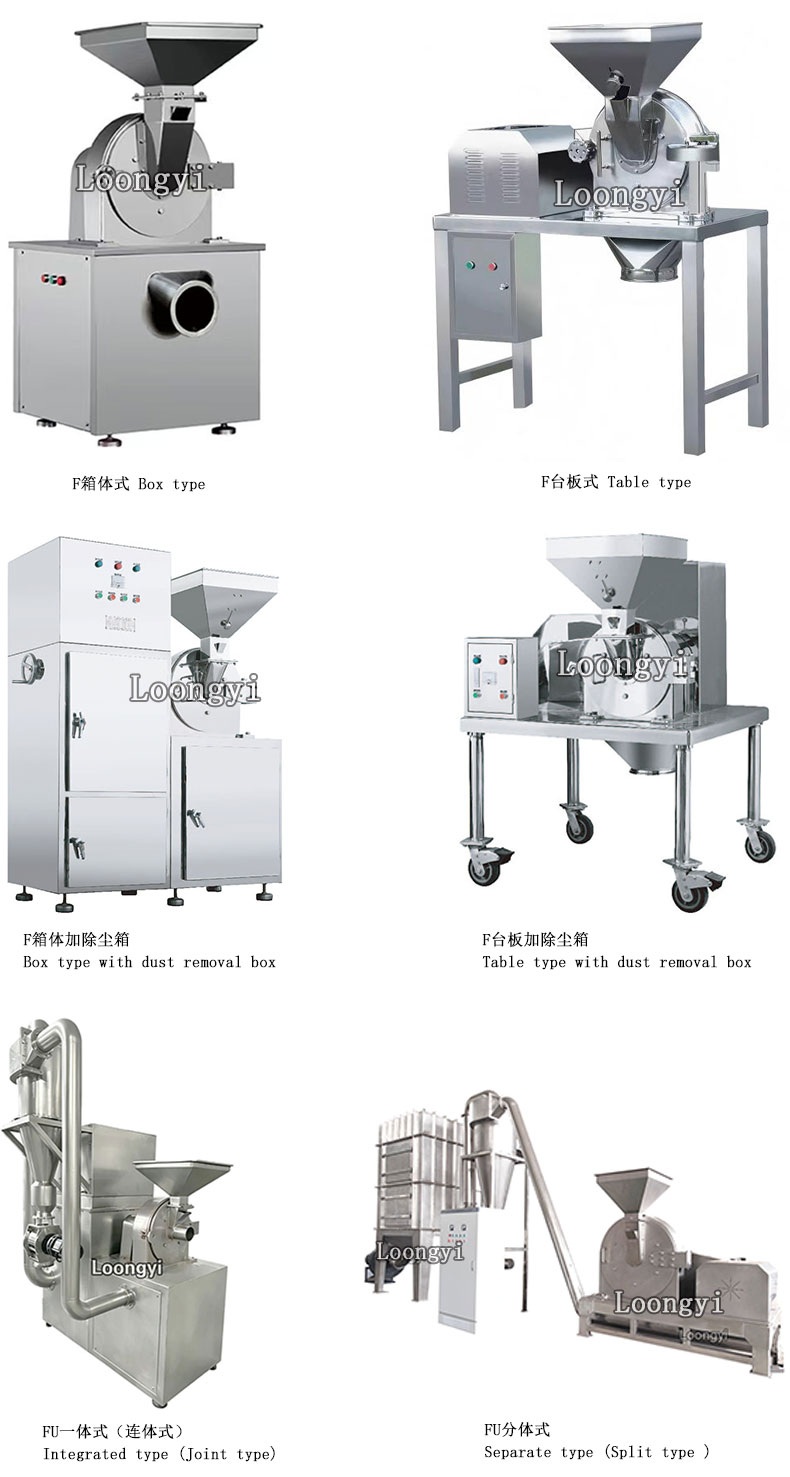

There are 6 styles of Multifunctional Grinder:
Style Description:
1.The FU and F are the same machine, with the same grinding host and same crushing effect.
FU adds a cyclone separator and a pulse dust collector on the basis of the F single machine.
FU grinder unit=F type crusher (single machine)+ a cyclone+a pulse dust collector.
The function of a cyclone is to separate finished powder and ultra fine dust, and it can be
continuously discharged for 24-hour continuous production;
The function of the pulse dust collector is to collect ultra fine dust, and there is no dust flying during
the production process. Moreover, the ultra fine dust can be collected without loss.

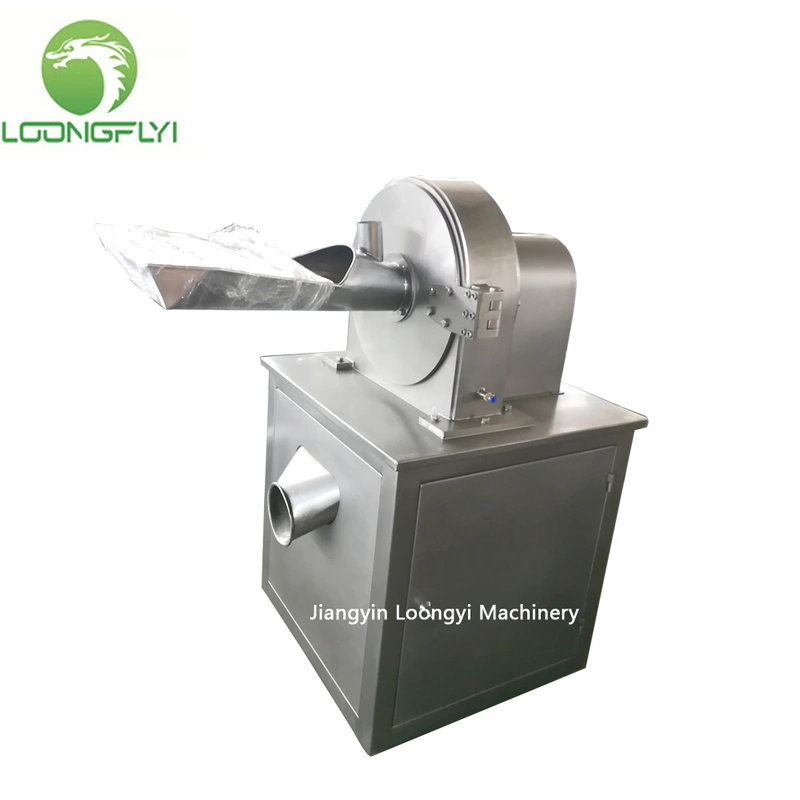

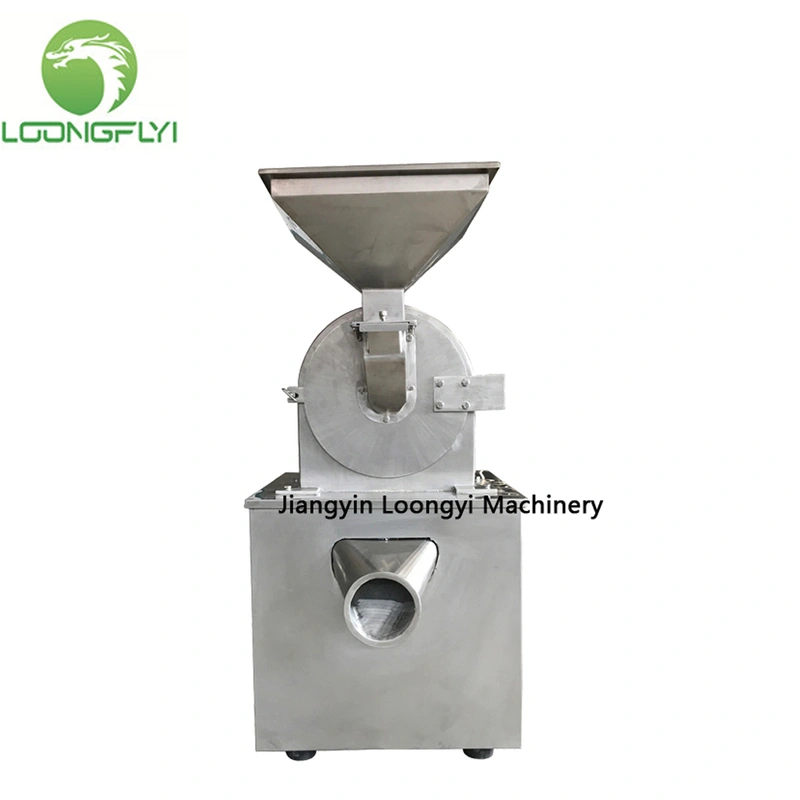

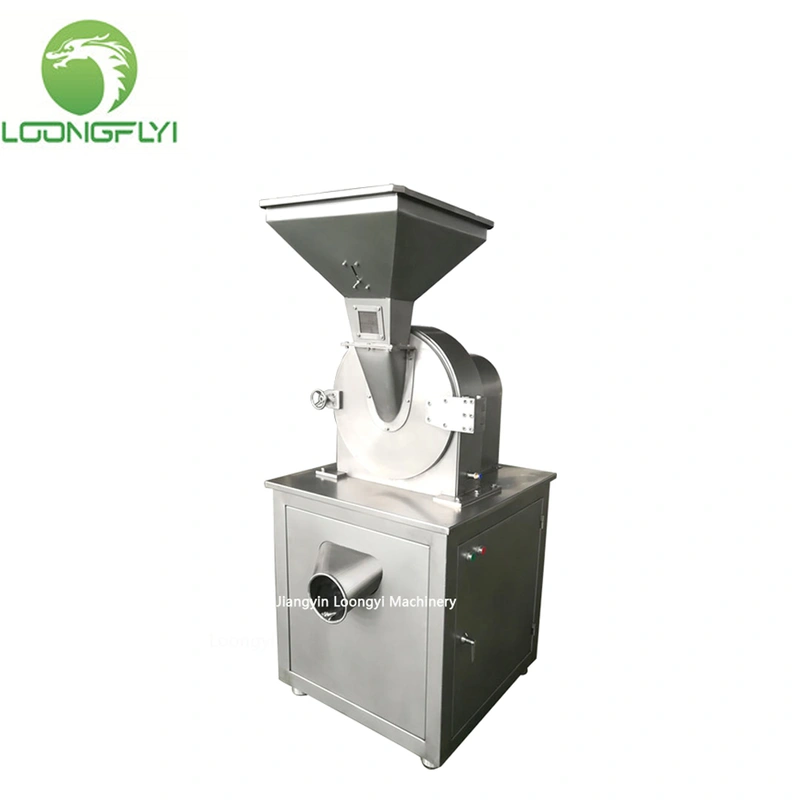

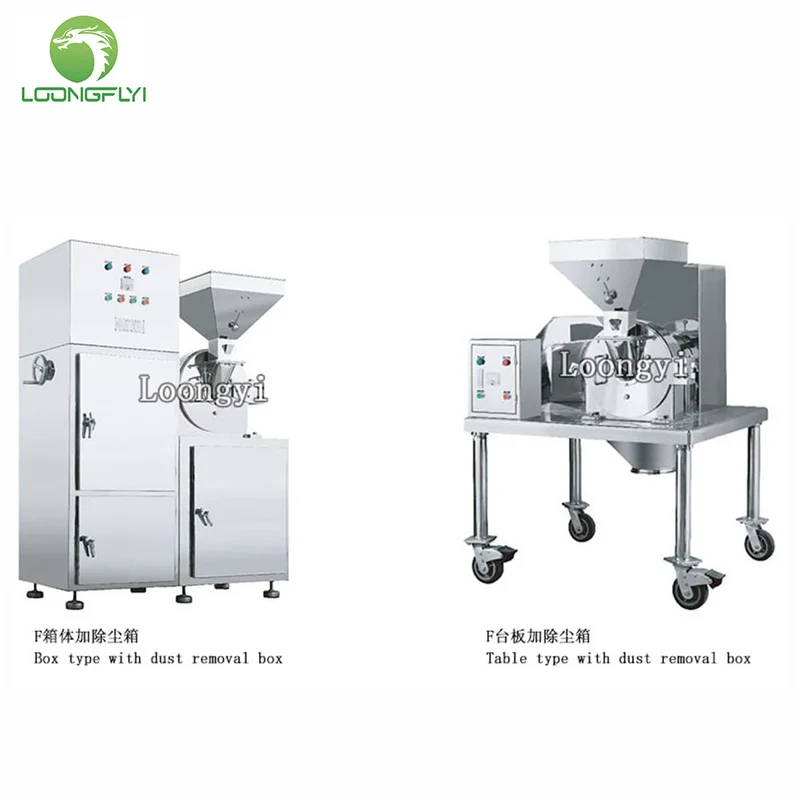

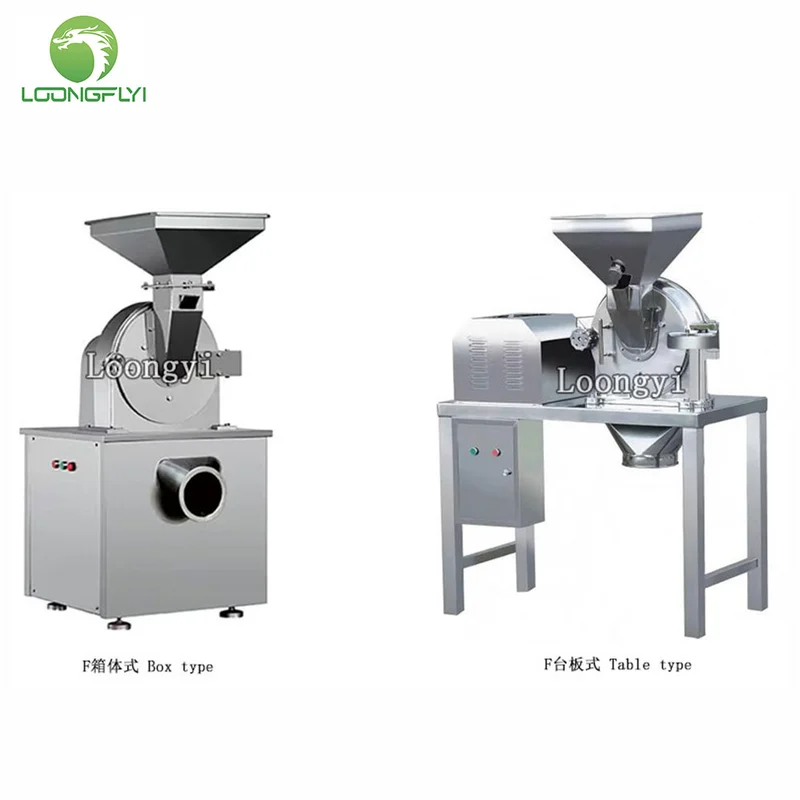

F is a standalone model (single machine) with a simple structure, small footprint, easy cleaning, and
intermittent operation, when the cloth bag or bin is full, the machine needs to be stopped, which is
suitable for users with small production capacity requirements.

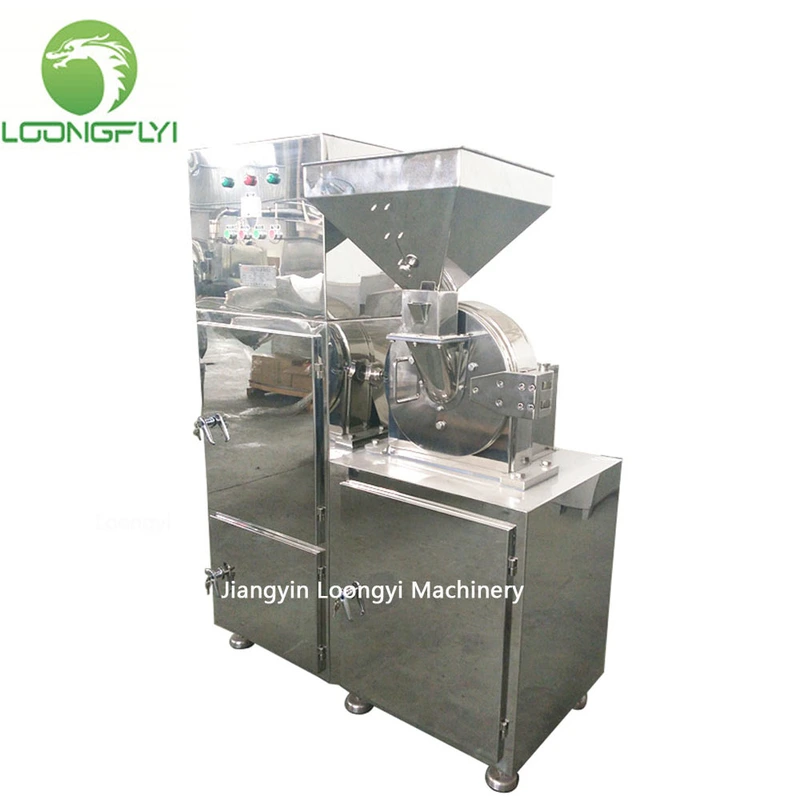

FU is a machine unit with a large footprint, suitable for continuous production and users with high
production capacity requirements.

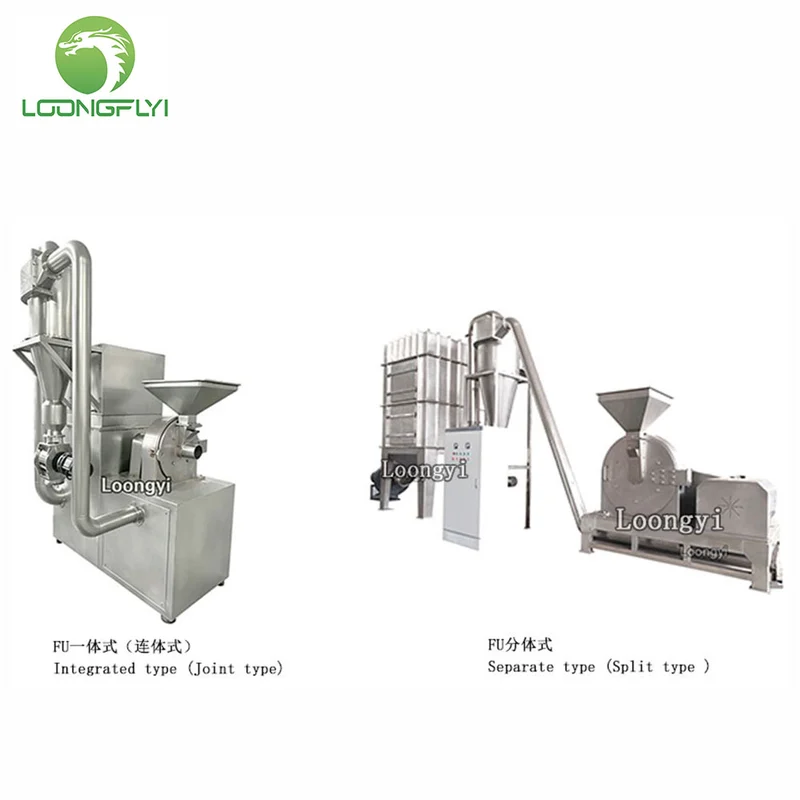

2.FU grinder has 2 types, Split type and Integrated type.
Split type is suitable for big factory with enough room space and big production requirement;

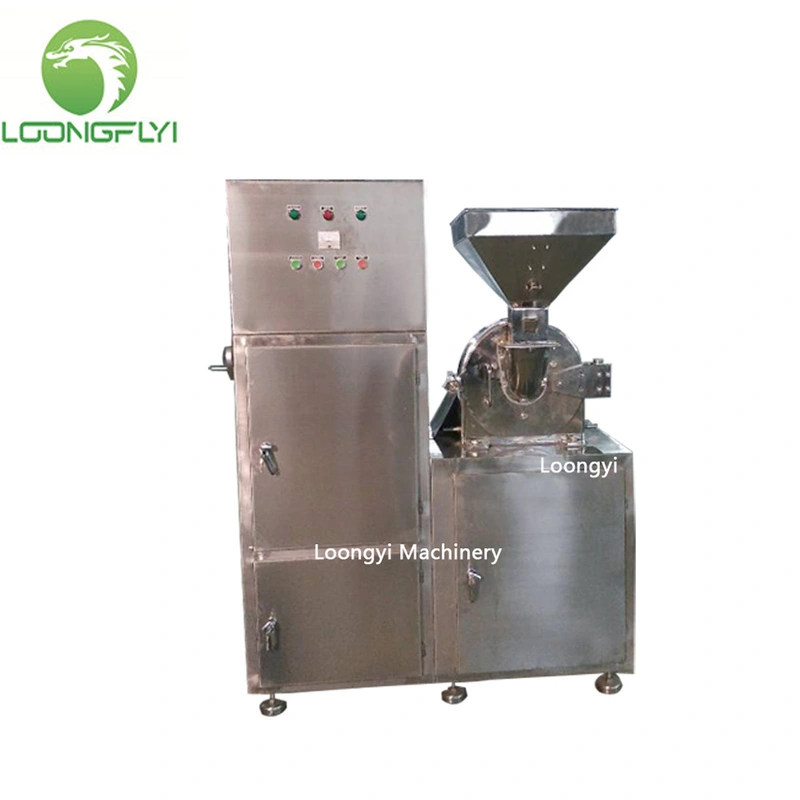

Integrated type has more compact structure and occupies a small area, which is suitable for small
capacity requirement. Only FU-30B, FU-40B and FU-50B can be designed into this structure.
Product Introduction:
This grinder is suitable for the material crushing by the industries of pharmaceutic, chemical,
foodstuff etc. This machine utilizes the relative motion between the movable disc and the fixed
disc to crush the material through knife impact, collision, and friction, and the different size is
obtained by changing of the screen.If you want to lower the temperature of the machine and
powder, a cold air system can be added. For high sugar and high oil materials, such as sesame,
peanut, medlar, etc., and your want 20-80 mesh powder, this machine can be fed with liquid
nitrogen, and supports customized liquid nitrogen system.

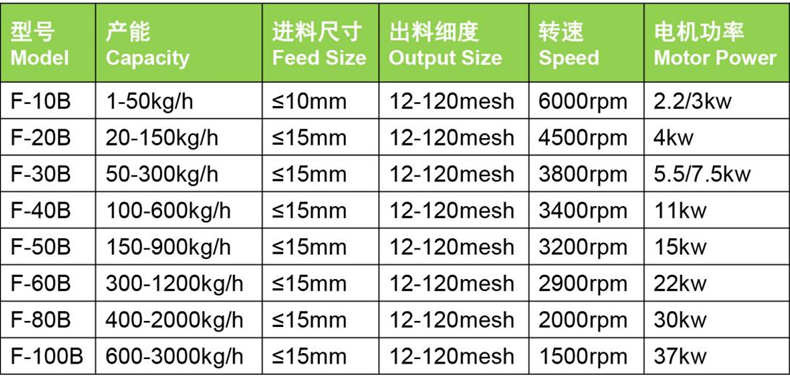

Technical Data:
F Series Multifunctional Crusher-Single Machine

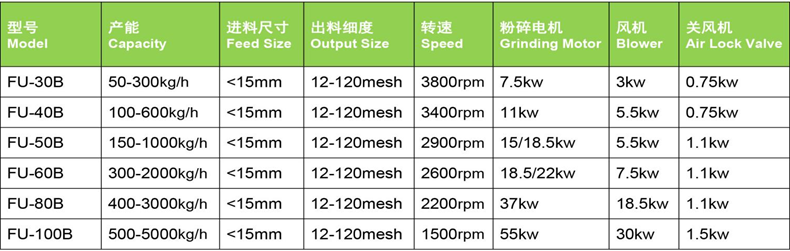

FU Series Multifunctional Grinder Machine Unit

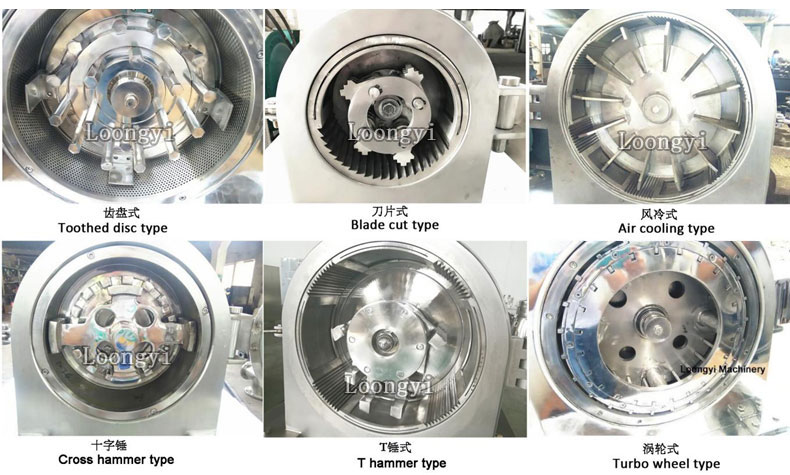

This machine has 6 types of cutter heads:
Toothed disc is more suitable for crushing crystalline and brittle materials;
Blade cut type is more suitable for crushing fibrous materials;
Cross hammer and T hammer are relatively universal and suitable for crushing most materials;
Air cooled and turbine type are more suitable for crushing thermal sensitive and oily materials.
We will recommend suitable cutter heads based on the specific materials and requirements of the
user.
The internal structure of the toothed disc and cross hammer disc grinding chambers is different
from the other four types of disc cutters, so they cannot be replaced and used; The other four types
of cutter heads have the same internal structure, so they can be replaced and used
Other Styles：
For materials with relatively long feeding sizes, such as lemongrass, barley grass, herbs, etc., the
feeding hopper can be used as a long trough. The shape, volume, and size of the feeding hopper
can be customized.

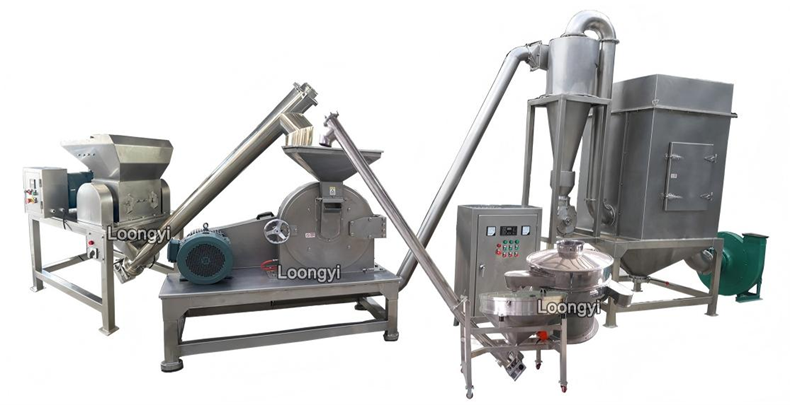

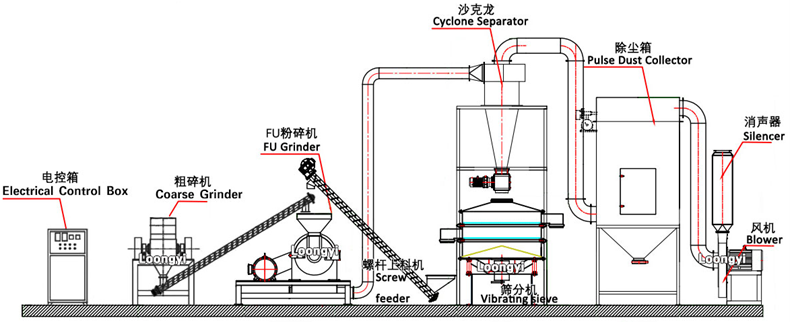

FU Two-Stage Multifunctional Grinder Unit With Separation Sieve And Coarse Powder Back Milling System:

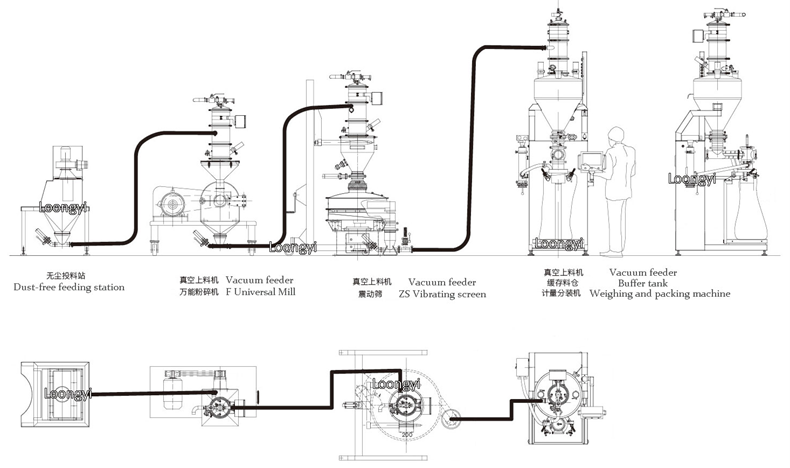

More powder solutions:
