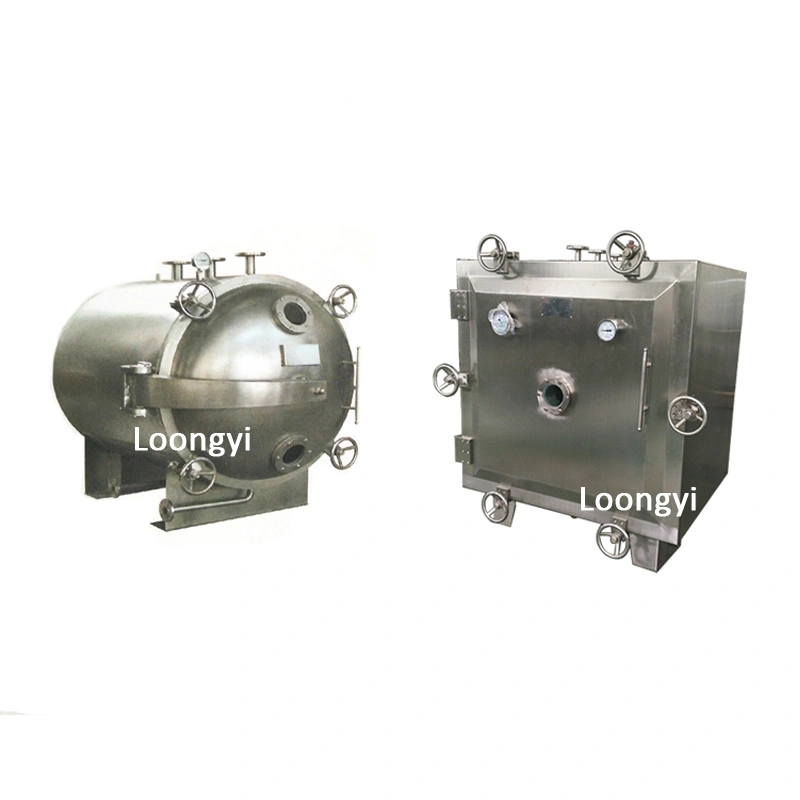

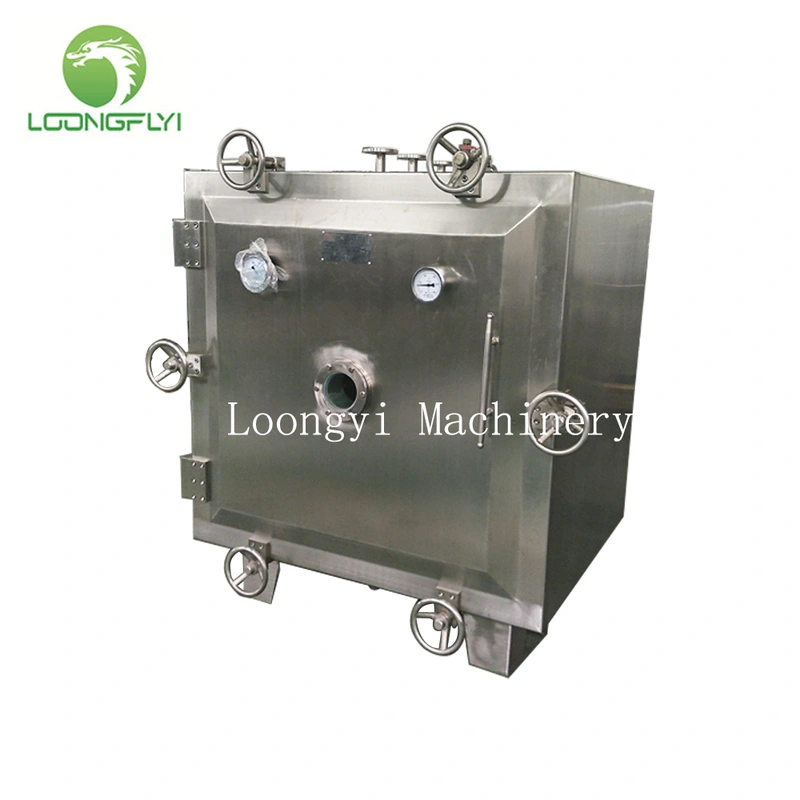

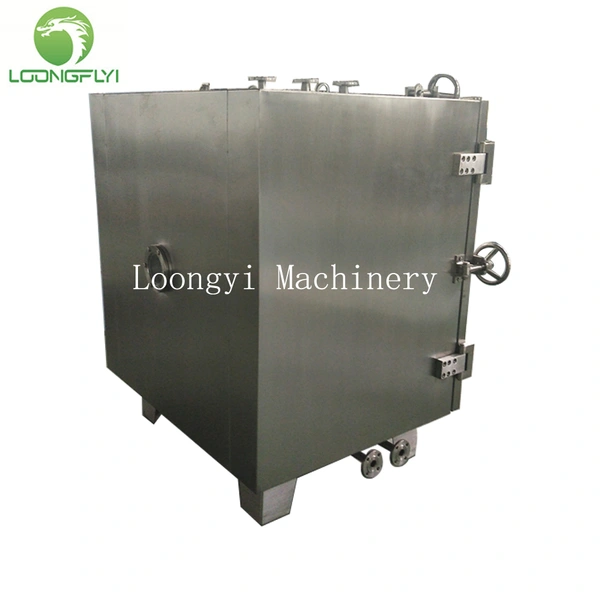

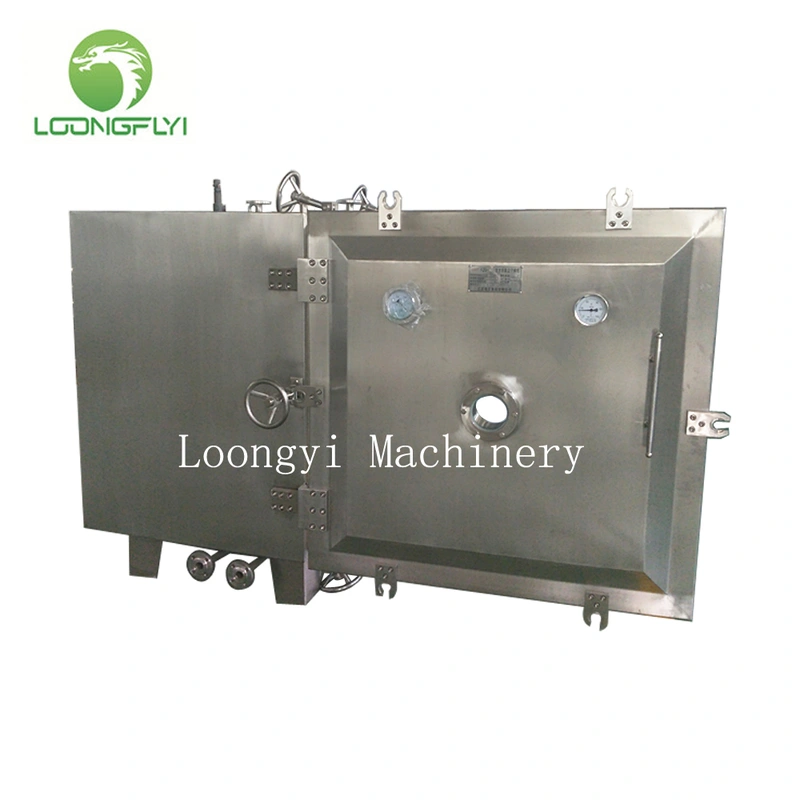

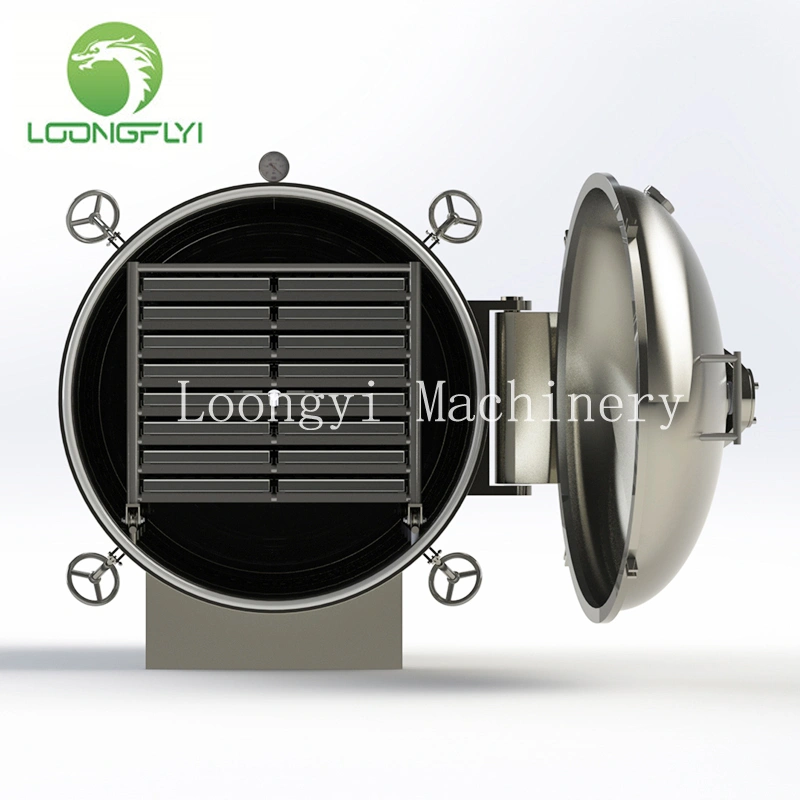

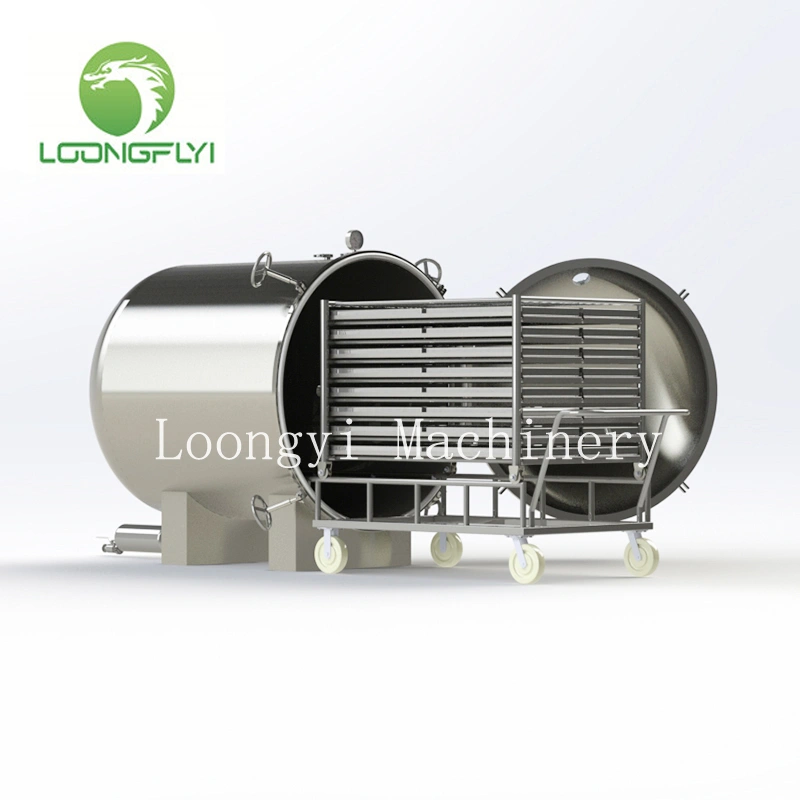

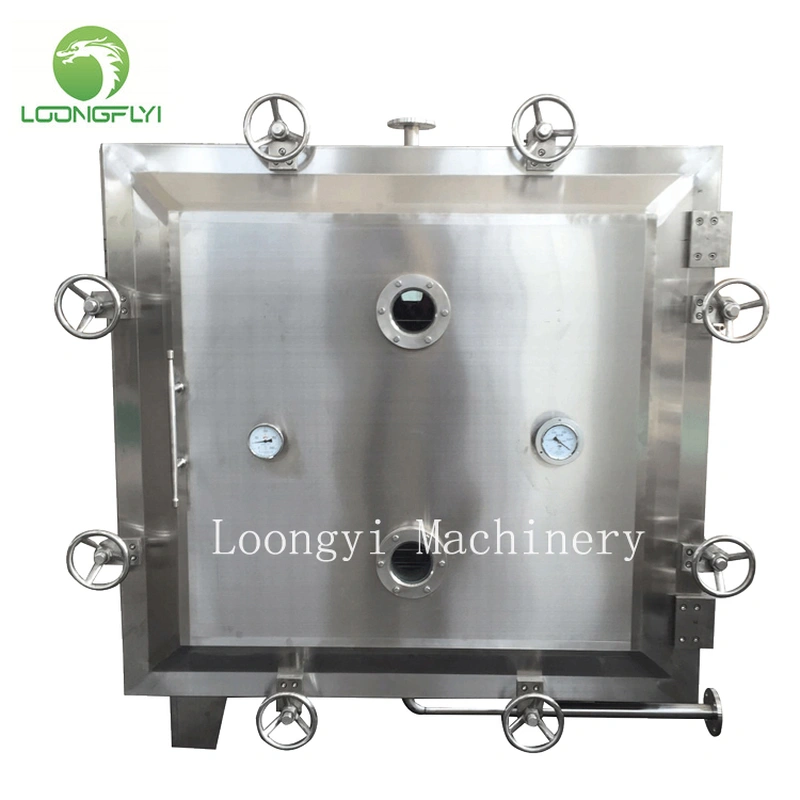

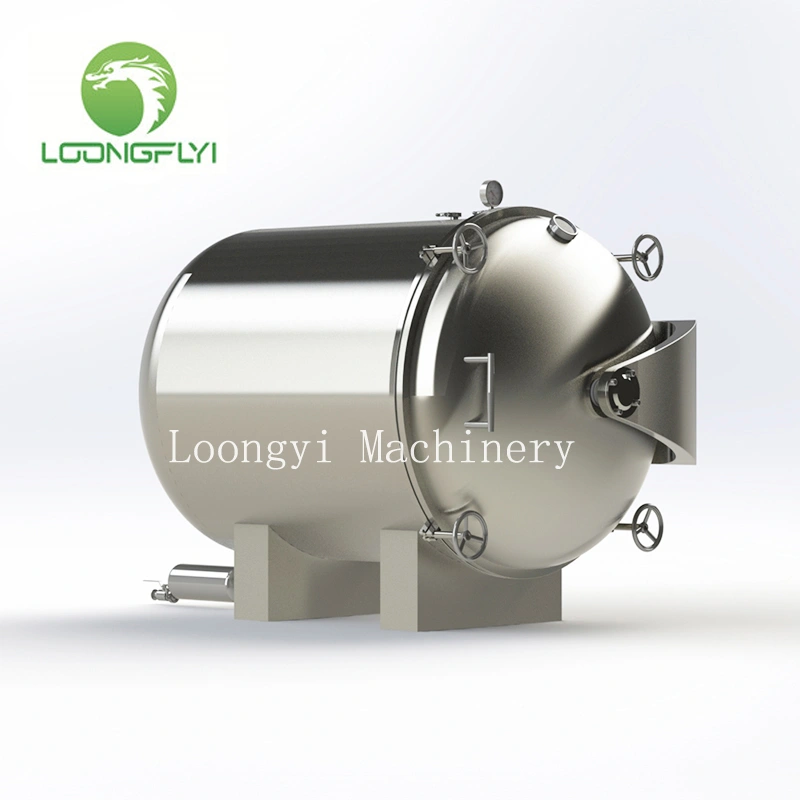

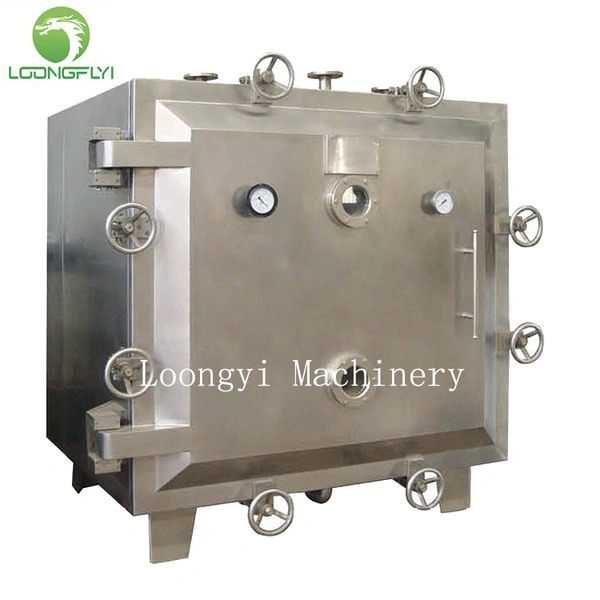

FZG Series Square And YZG Series Round Vacuum Dryers

Description

Product Introduction:

It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in medicine, chemical, foodstuff and electronic industries.

Main Features:

· Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.

· The heat source for evaporation may be low pressure steam or surplus heat steam. The heat loss is less.

· Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.

· It belongs to static dryer, so the shape of raw material to be dried should not be destroyed.

Technical Data:

Model	FZG-10	FZG-15	FZG-20	YZG-600	YZG-1000	YZG-1400
Inner size of drying box(mm)	150010601220	150014001220	150018001220	Φ600×976	Φ1000×1527	Φ1400×2054
Outer size of drying box(mm)	192417201513	151319242060	192425001513	1135×810×1020	1693×1190×1500	2386×1675×1920

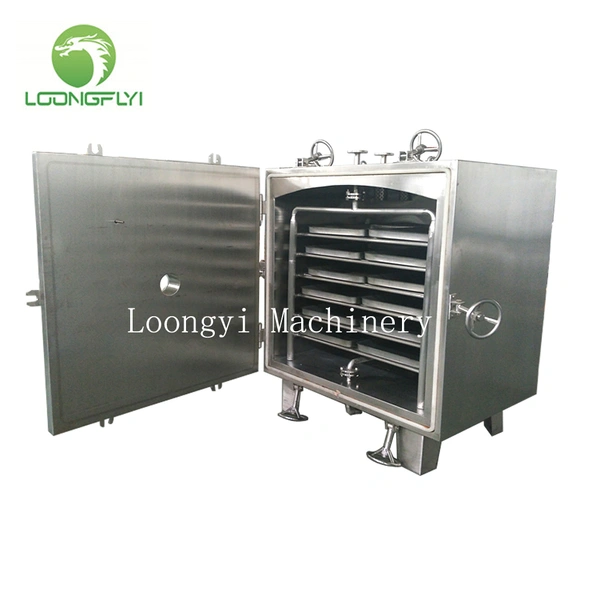

Layer of dry rack	5	8	12	4	6	8
Distance between layers(mm)	122	122	122	81	102	102
Size of dry tray(mm)	480630 45	480630 45	480630 45	310×600×45	250×410×45	400×600×45
Number of dry tray	20	32	48	4	24	32
Use press inside of pipe(Mpa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Use temperature of rack(℃)	35～150	35～150	35～150	35～150	35～150	35～150
No load vacuum inside box(MPa)	-0.1	-0.1	-0.1	1330(10mmHg)	1330(10mmHg)	1330(10mmHg)
Weight(kg)	1400	2100	3200	250	800	1000
