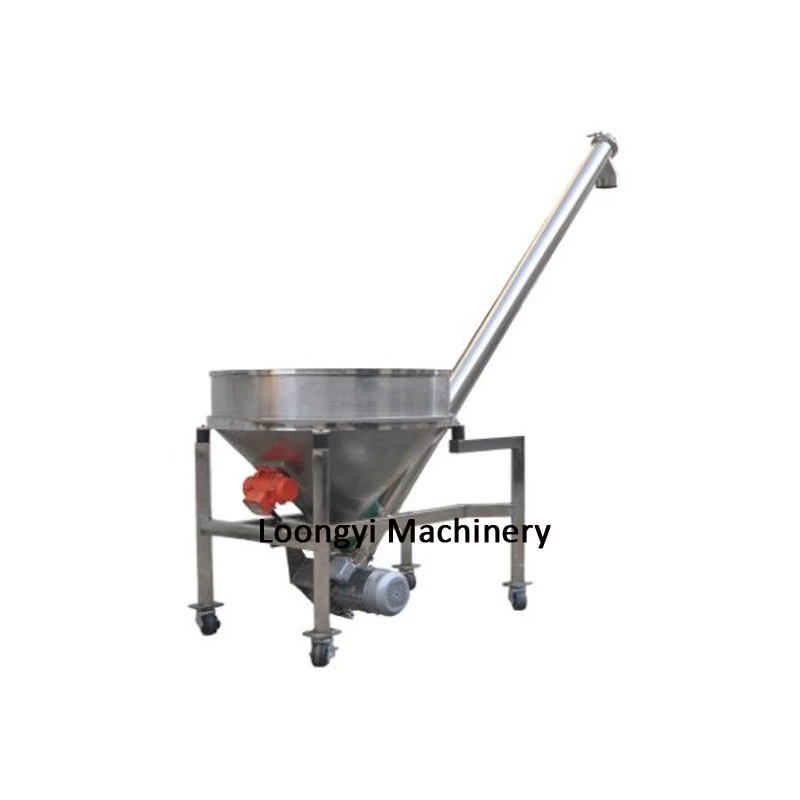

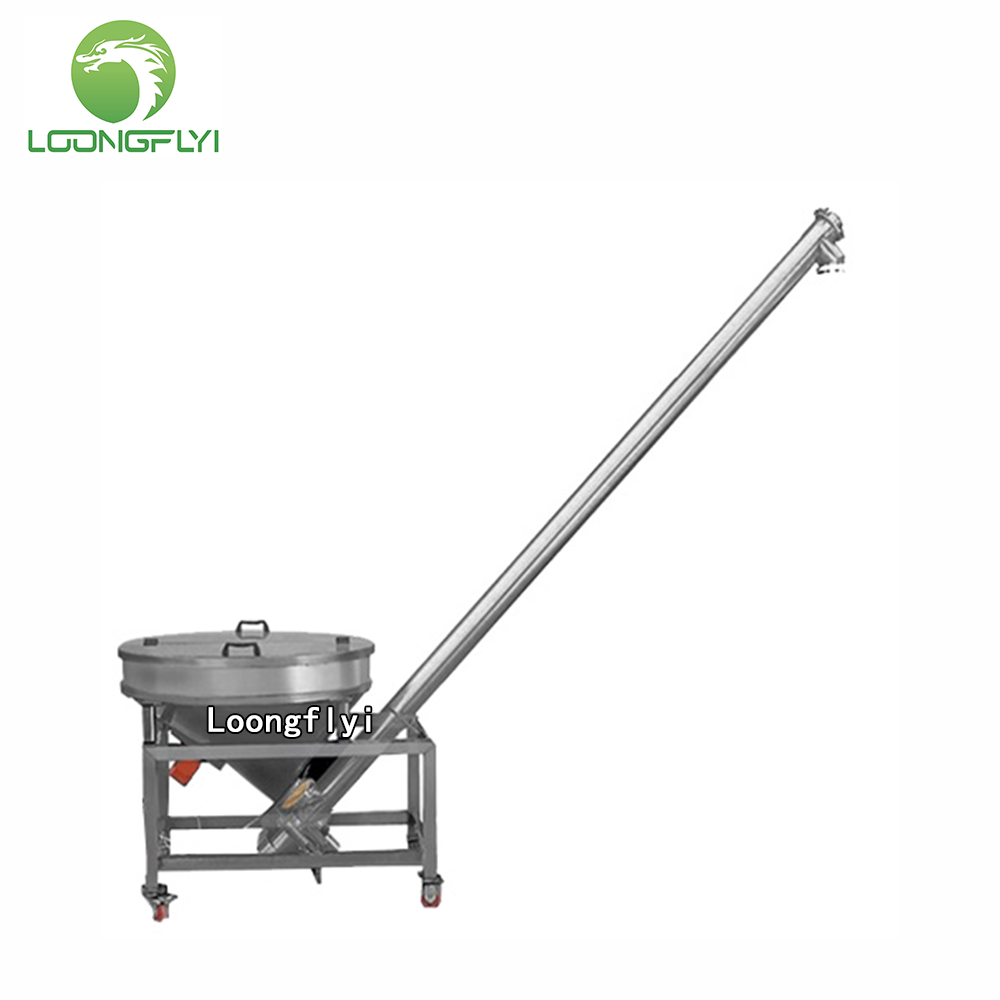

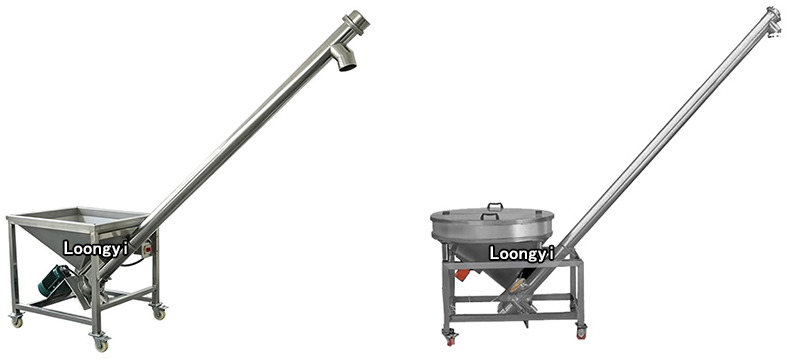

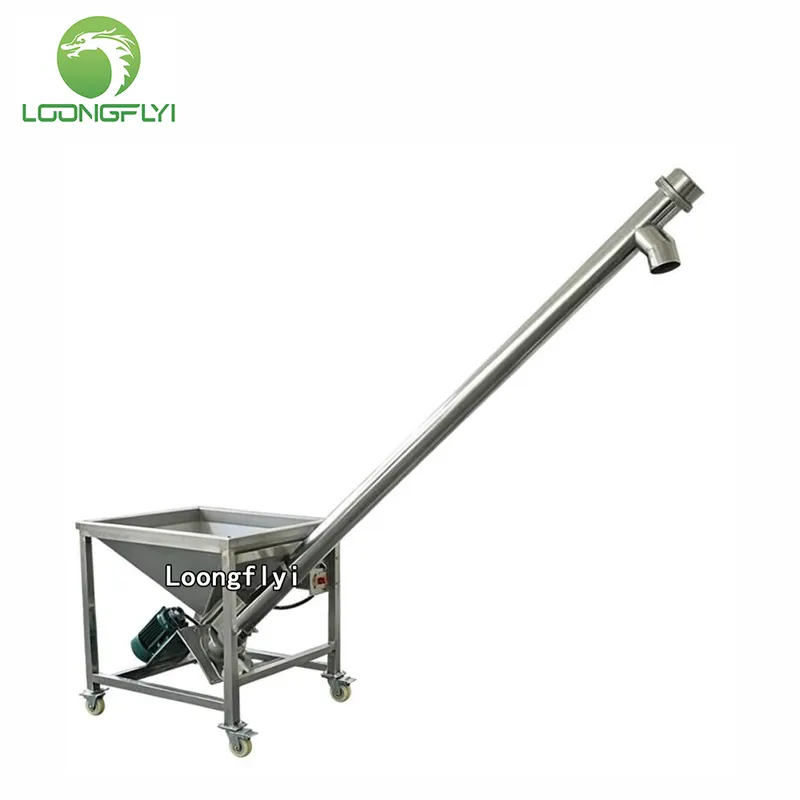

LS Series Screw Feeder

Main Usage:

Compatible with many packing equivalents for powder or granule products. Applicable with food pharmaceutical and chemical industry etc

powder, granules etc.

Main Features:

Humanization design, easy dismantle, separate product contact parts for cleaning without tools, no uncovered corners, particularly suitable for

food packing industry. It takes one person one minute to complete the entire dismantlement process. It saves time and energy, safe and efficient.

Hopper with arch breaker device to help you to solve bridge issue.

Upgrade component: Polished screw, Semi-opening tube.

This model offers both standard and customized machine of your choice.

Technical Data:

Model	LS-127	LS-133	LS-159	LS-168	LS-219
Rated conveying capacity(kg/h)	500	800	1200	2000	3000
Feeding motor power(kw)	1.5	2.2	2.2	3	4
Feeding tube diameter(mm)	127	133	159	168	129
Storage box capacity(kg)	50	75	100	150	200
Storage box size(cm)	550550750	640640750	700700750	800800750	10001000750
