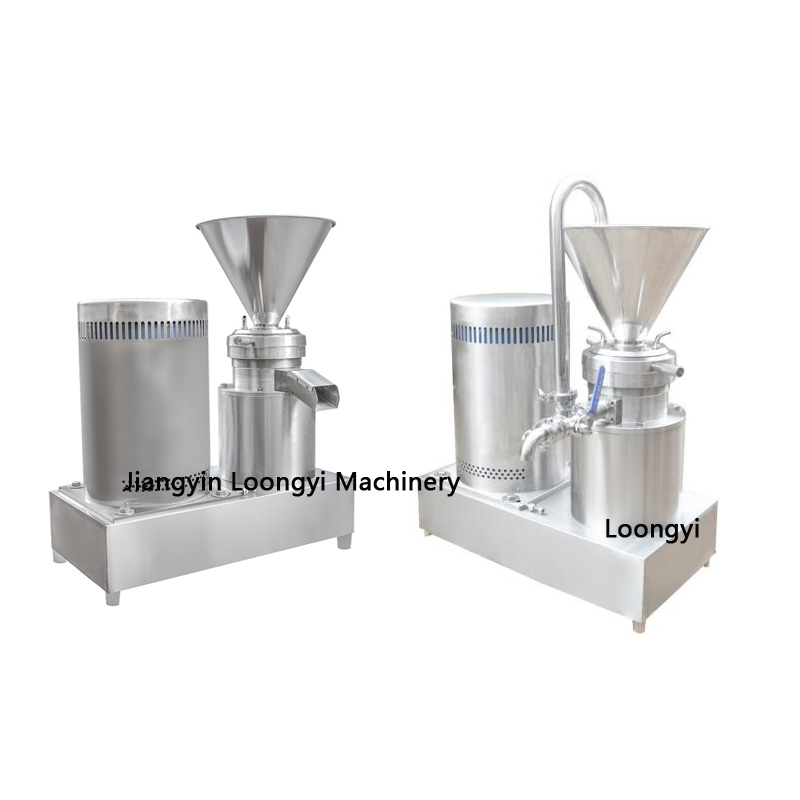

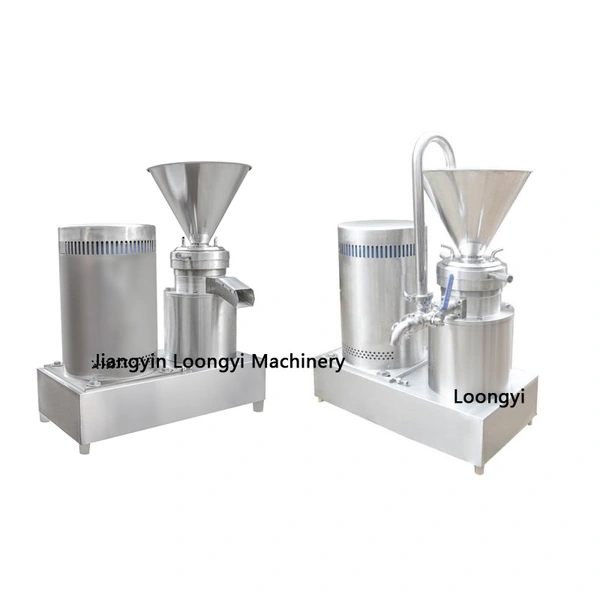

Industrial colloid mill sesame tahini peanut butter making machine

LYCM Series Colloid mill

Colloid mill works with shearing, grinding high-speed stirring Grinding process occurs in the relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The above forces effectively evenly disperse, emulsify, smash the material.

Description

Product Introduction:
LYCM colloid mill is a machine for fine processing of fluid material, with superior ultra-fine crushing, dispersion emulsification, homogenization, mixing and other effects. the material particle size can reach from 2-50 microns
after processing with this machine, and the degree of homogeneity is more than 90%, which is ultra fine ideal
equipment for processing.This mill is suitable for ultra fine crushing of wet material (pharmaceutical, food, chemical and other industries).


Main Features:

The machine is the relative motion of the grinding disk and the fixed steel grinding disk with different geometrical shape. The machine is pulverized by cutting, grinding, and high frequency vibration. Crushing chamber is equipped with two grinding area, level of fine grinding area, secondary for superfine grinding
area, the problem of steel mill grinding fineness can be adjusted up and down, can effectively one-time need superfine grinding effect, the machine has compact structure, smooth operation, low noise, corrosion resistant, easy cleaning, maintenance is convenient wait for a characteristic, the current domestic wet grinding is the
most ideal equipment.


Technical Data:

Model

Motor (kw)

Speed

(r/min)

Fineness

(um)

Capacity(t/h)

Grind disc

diameter

(mm)

Cooling water

pipe(mm)

Output

(mm)

Feed port

(mm)

Weight

(kg)

Overall Size

(mm)

LYCM-50

1.5

2900

2-40

0.01-0.1

50

10

20

30

60

255*500*700

LYCM-65

2.2

2900

2-40

0.02-0.5

65

10

20

30

65

500*345*675

LYCM-80

3

2900

2-40

0.3-1

80

12

25

48

150

700*570*920

LYCM-100

5.5

2900

2-40

0.5-2

100

12

25

66

240

800*645*900

LYCM-120

7.5

2900

2-40

0.5-3

120

12

32

66

250

800*645*900

LYCM-140

11

2900

2-40

0.5-4

140

12

32

66

275

800*750*1020

LYCM-200

18.5

2900

2-40

1-10

200

12

38

100

400

900*850*1200
