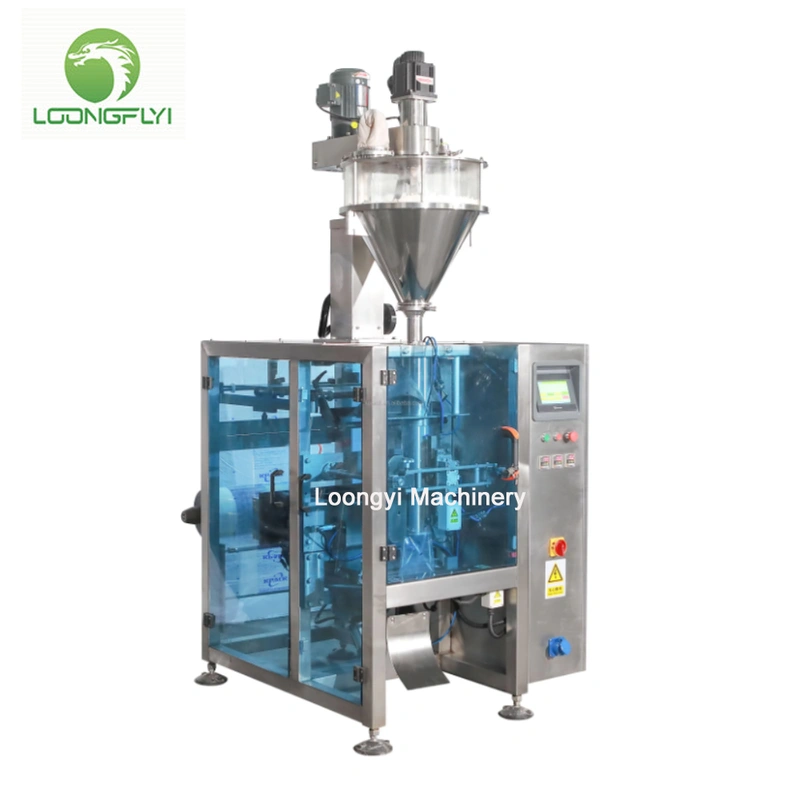

LYPM Series Automatic Powder Packing Machine

Description

Introduction:

Our automatic powder packing machine mainly includes screw scale and BSPM vertical packing machine

BSPM powder packing machine uses PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.

Main Usage:

This system can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar,coffee, feedstuff, solid medicine, powder type additive, and dye, etc.

Technical Data:

(1)Screw Scale (it is suitable for powder)

Model	25L	50L	70 L
Hopper size	25L	50L	70L
Metering weight	10~500g	10~2000g	10~5000g
Measurement accuracy	≤±0.5%~1%	≤±0.5%~1%	≤±0.5%~1%
Metering speed	30~45times/min	10~45 times/min	5~45 times/min
Power	1.6 KW	2.5 KW	3.5 KW
Weight	250 KG	280 KG	280 KG

(2)BSPM vertical automatic packing machine

Models	LYPM-320	LYPM-420	LYPM-520	LYPM-620	LYPM-720	LYPM-820
Bag size(mm)	W:50-150	W:80-200	W:100-250	W:120-300	W:150-350	W:200-400
Bag size(mm)	L:50-200	L:80-250	L:100-300	L:120-350	L:150-400	L:200-450
Bag Shape	Back Seal
Power(kw)	2.5			3.5
Packaging weight range (powder) (g)	≤200	≤500	≤1500	≤3000	≤4000	≤6000
Packing speed (bag /min)	25-60 (according to material characteristics and packing weight)
Packaging Accuracy	±1% (according to material characteristics and packing weight)

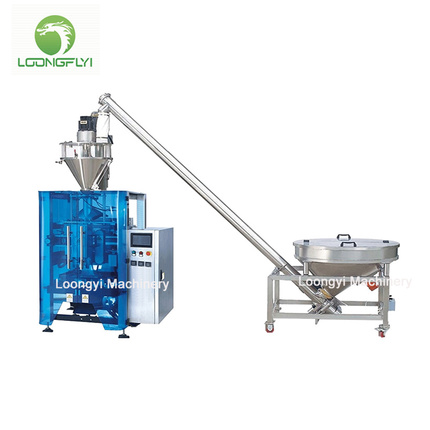

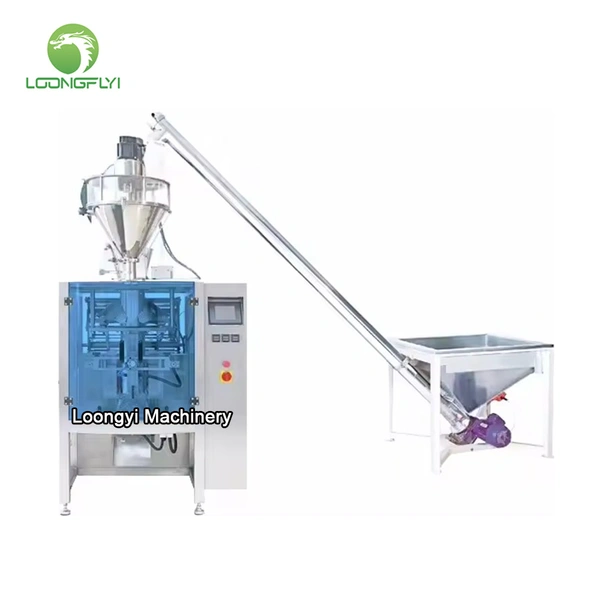

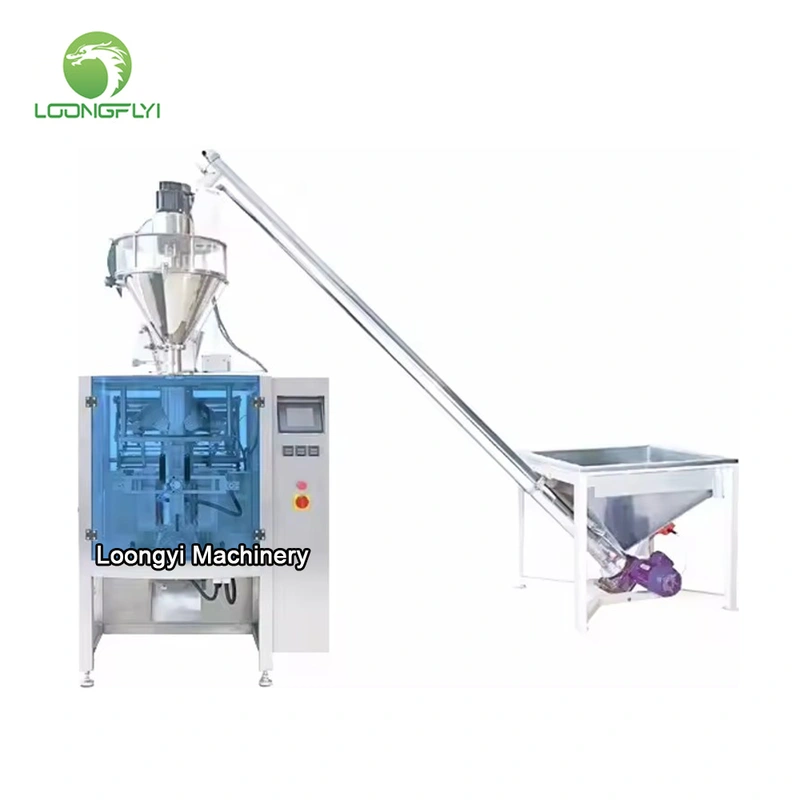

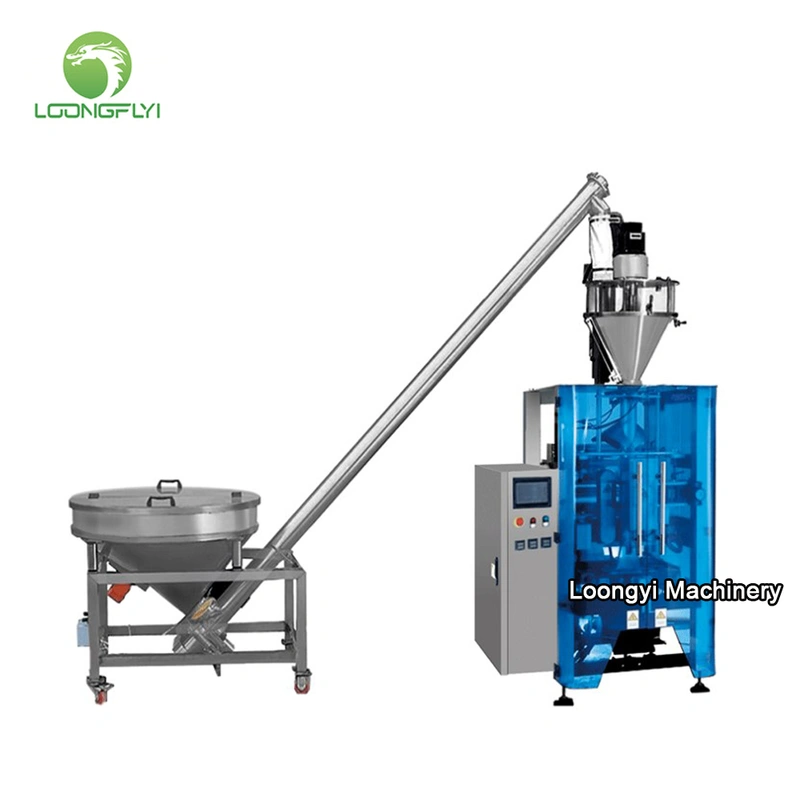

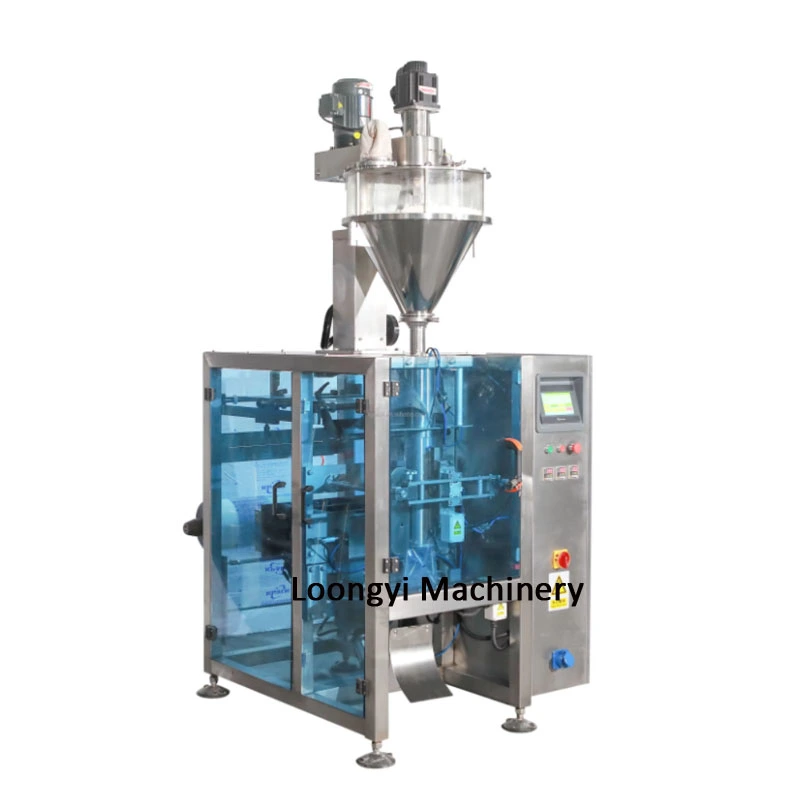

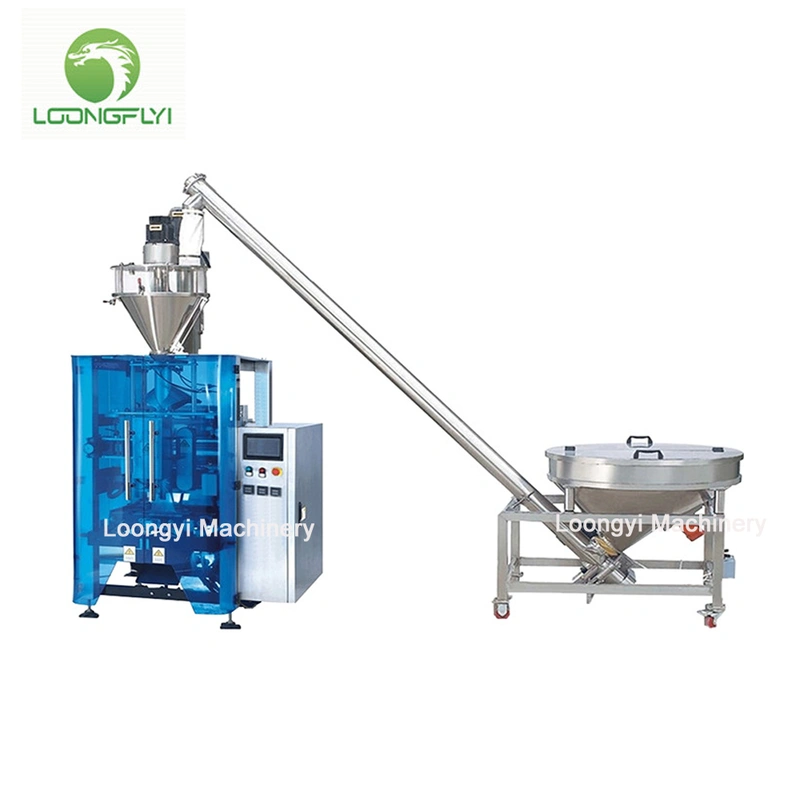

Product Pictures:
