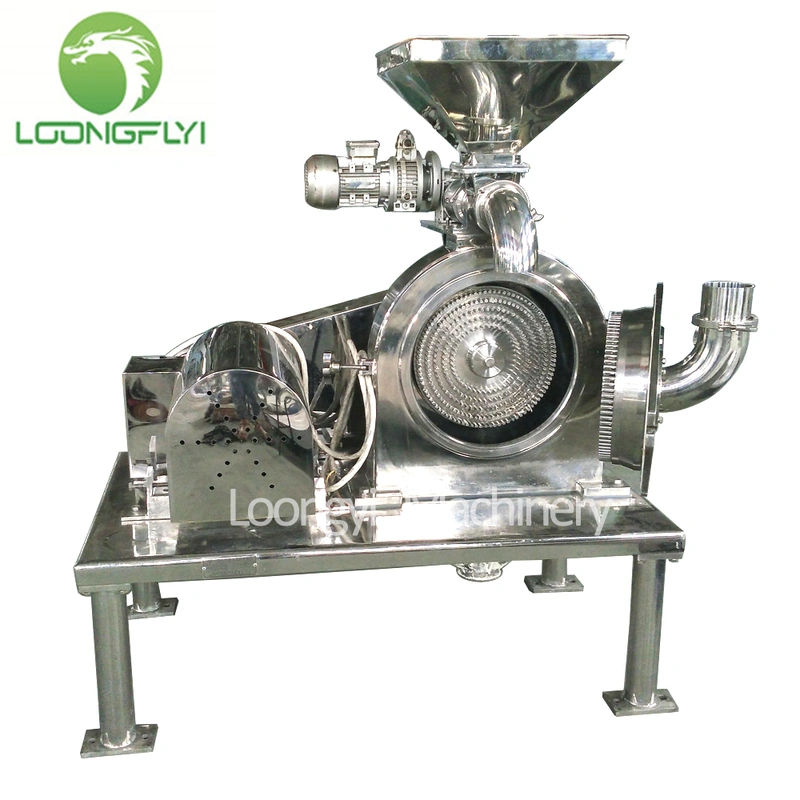

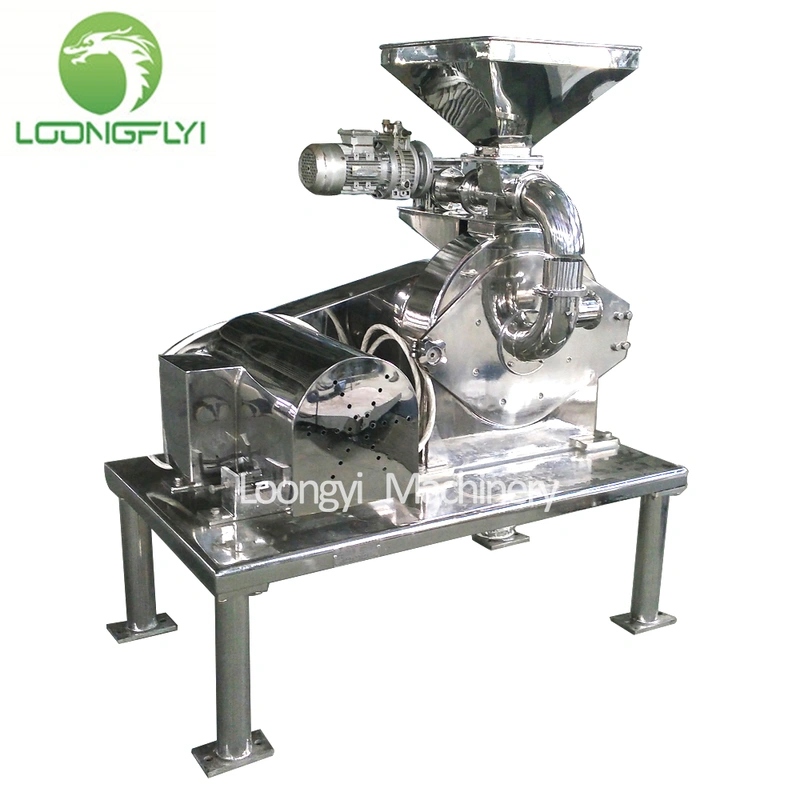

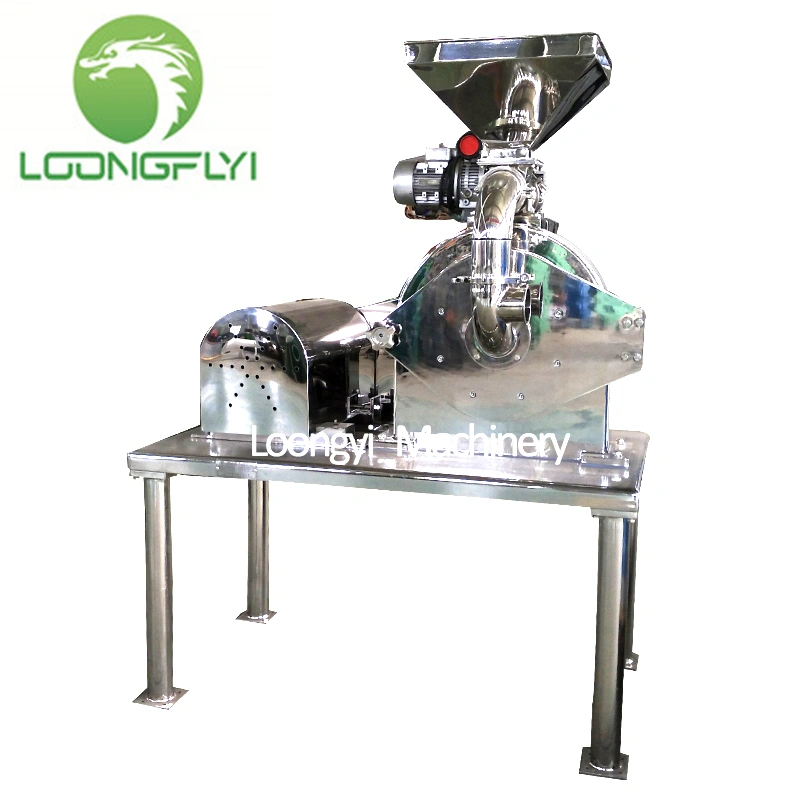

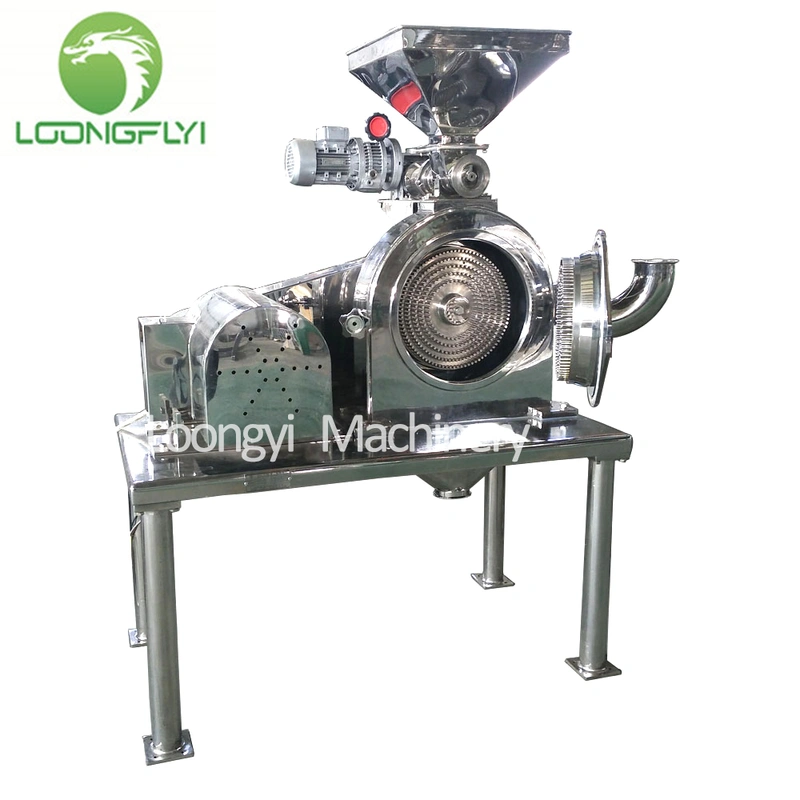

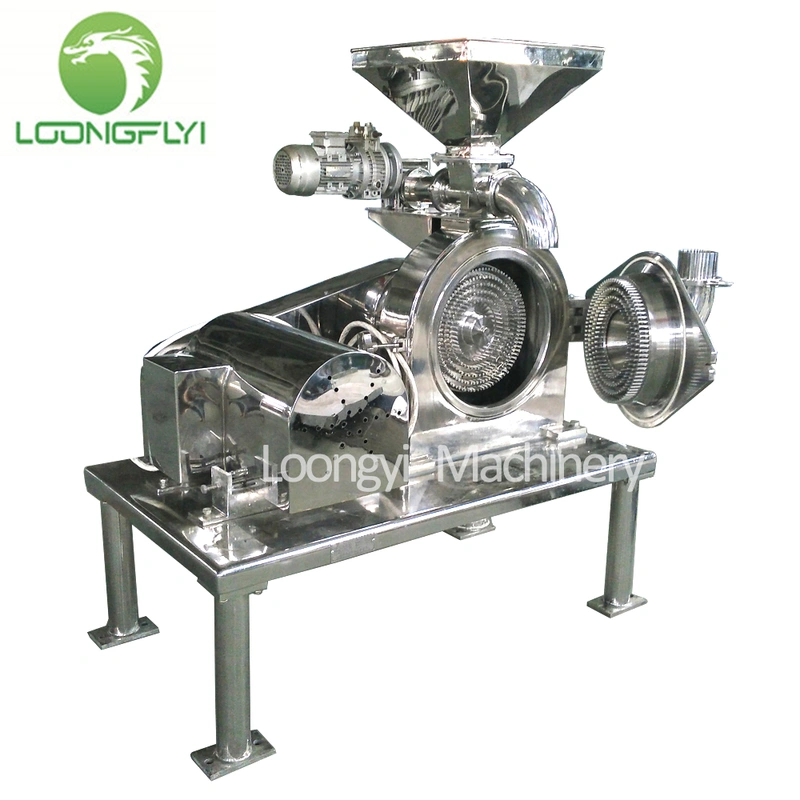

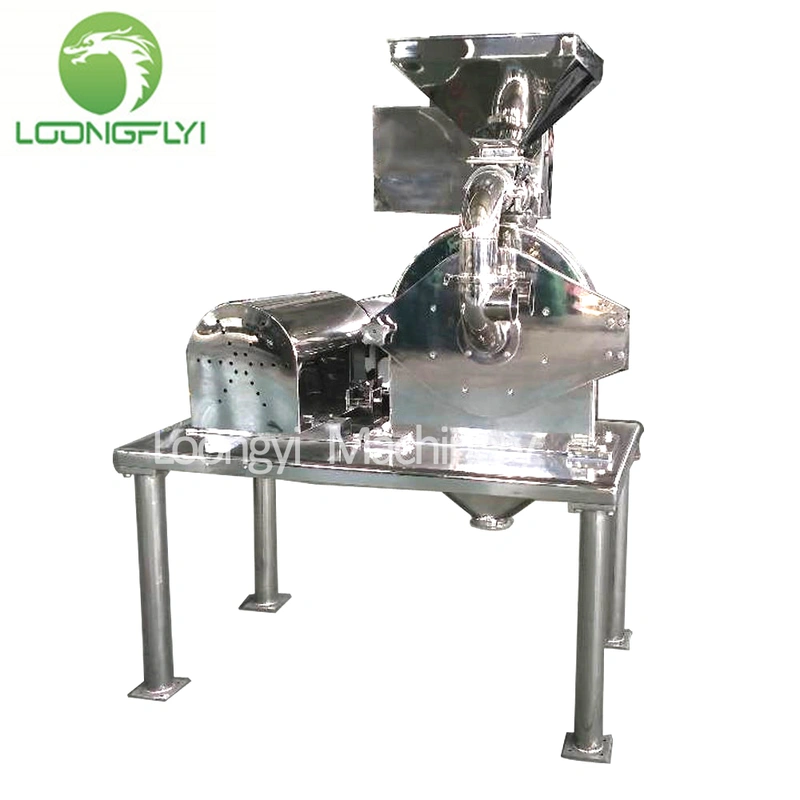

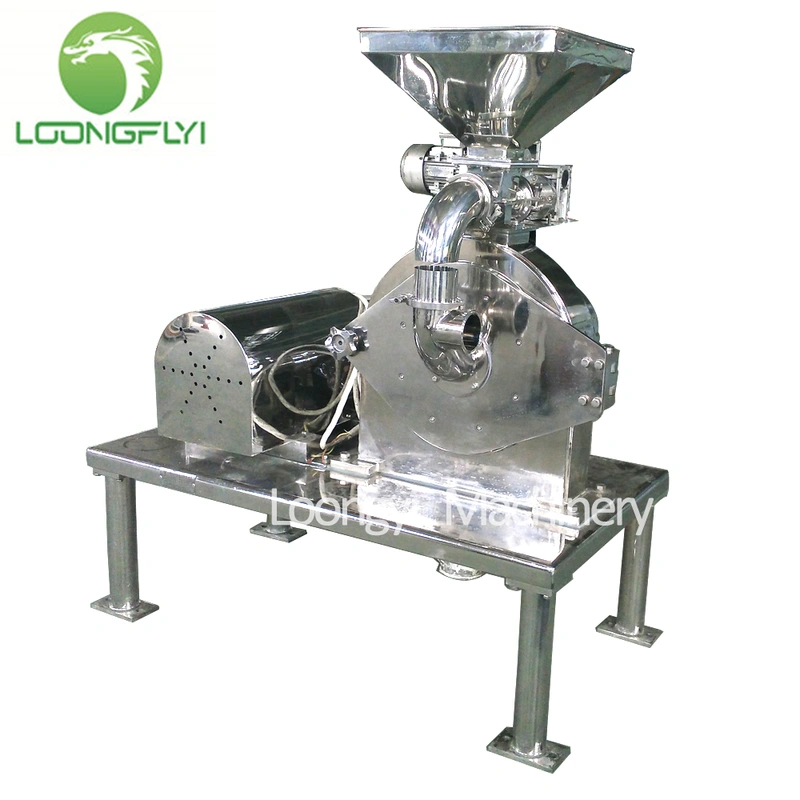

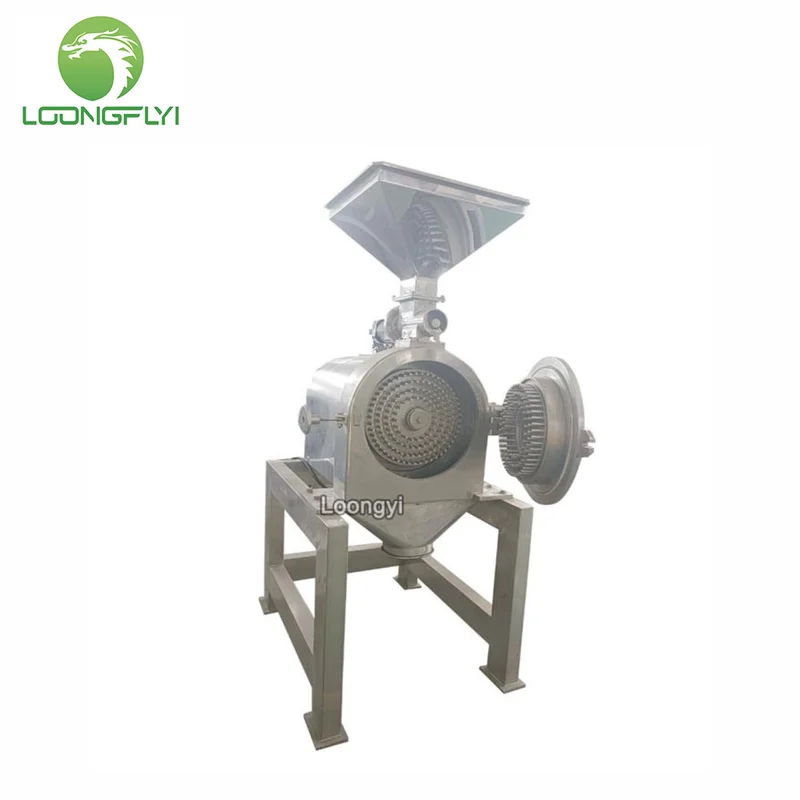

Stainless steel cocoa sugar spice grinder pin mill grinding machine

LYPM Series Pin Mill

Pin mills can be used on both dry substances and liquid suspensions.Pin mills are commonly use in the manufacture of
pharmaceuticals, as they can achieve particle sizes as low as a few micrometers.
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.
At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.
The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.

Description

Product Introduction:

This machine is used for crushing hard materials in soft goods, especially suitable for crushing

low melting point, adhesive material and the freezing of heat sensitive material crushing, such

as grease, pulping, peanut pulp powder, cocoa, spices, garlic, tomatoes, apples, red jujube, rubber

and other fields.

Working Principle:

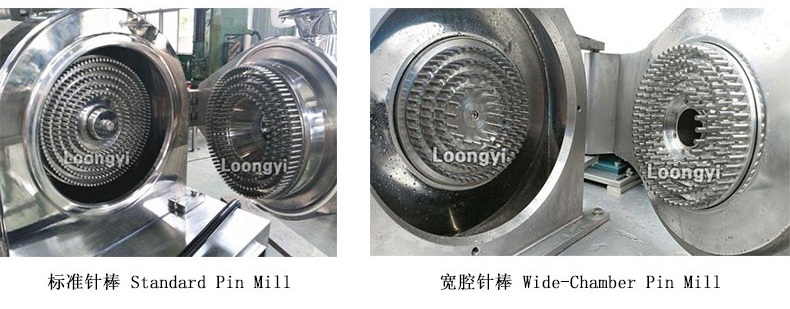

After materials are sent to the crushing chamber through the screw conveyor from the hopper, they

will be impacted, cut and crushed by high-speed rotating blades (needle bar types) and fixed needle

bar disks. The different output sizes can be obtained by adjusting the grinding speed. It is mainly

applicable to the crushing processing of crystalline materials from chemical industry, dyestuff,

auxiliaries, feed, food, medicine, and non-metal minerals. It has the advantages of high output, fine

particle size, low noise, low energy consumption, simple maintenance and easy installation.The body

with two concentric circular high-speed operation in reverse, shear, impact material crushing effect,

material from the middle of the rotating disc into the disc uniform distribution impact on column,

through the role of the centrifugal force, the material to the outgoing gradually spread, crushing

effect, the machine is the needle type ground combination of surveying and mapping the Italian

C&M company German buhler products manufacturing.

Technical Data:

Model	Capacity (kg/h)	Feed Size(mm)	Output size(mesh)	Weight (kg)	Total Power (KW)
LYPM-400	150	＜ 15	40-325	1000	23
LYPM-500	200	＜ 15	40-325	1300	39
LYPM-600	400	＜ 15	40-325	1600	45
