Peanut Sesame Walnut Almond Cumin Powder Roller Pulverizer Machine

LYRM Series Oil Materials Roller Mill

Roller Mill Machine is specially designed for the materials that contain much oil content, such as sesame, peanut, almond, walnut, nut, cashew, black pepper, white pepper, mustard, cumin, coriander seeds, cocoa beans, coffee beans...etc.

It can grind oily materials at normal temperature.

Output size: 10-60mesh. (Adjustable)

Description

Product Introduction:

Roller Mill Machine is specially designed for the materials that contain much oil content,

such as sesame, peanut, almond, walnut, nut, cashew, black pepper, white pepper, mustard,

cumin, coriander seeds, cocoa beans, coffee beans...etc.

It can grind oily materials at normal temperature.

Output size: 10-60mesh. (Adjustable)

Roller mill is well designed and developed by our company, it is filled a gap in the oil mill,

which had reached the international advanced level.

Working Principle:

The raw materials are feed into the roller area from hopper, they are milled into powder

by the squeezed of the rollers. You can get different sizes of final production by adjusting

the distance of two rollers.

Technical Data:

Model		LYRM150-3	LYRM150-4	LYRM250-3	LYRM250-4	LYRM500-3	LYRM500-4
Size	length（mm）	780	780	920	920	1340	1340
	Width（mm）	670	670	720	720	1210	1210
	Height（mm）	1600	1850	1750	2000	2000	2250
Weight（kg）		350	520	580	750	1200	1400
Capacity（kg/h）		50-200	50-200	100-400	100-400	200-500	200-500
Motor power(kw)		2.2	3	5.5	7.5	11	15
Roller diameter（mm）		ϕ150	ϕ150	ϕ150	ϕ150	ϕ219	ϕ219
Roller length（mm）		150	150	250	250	500	500

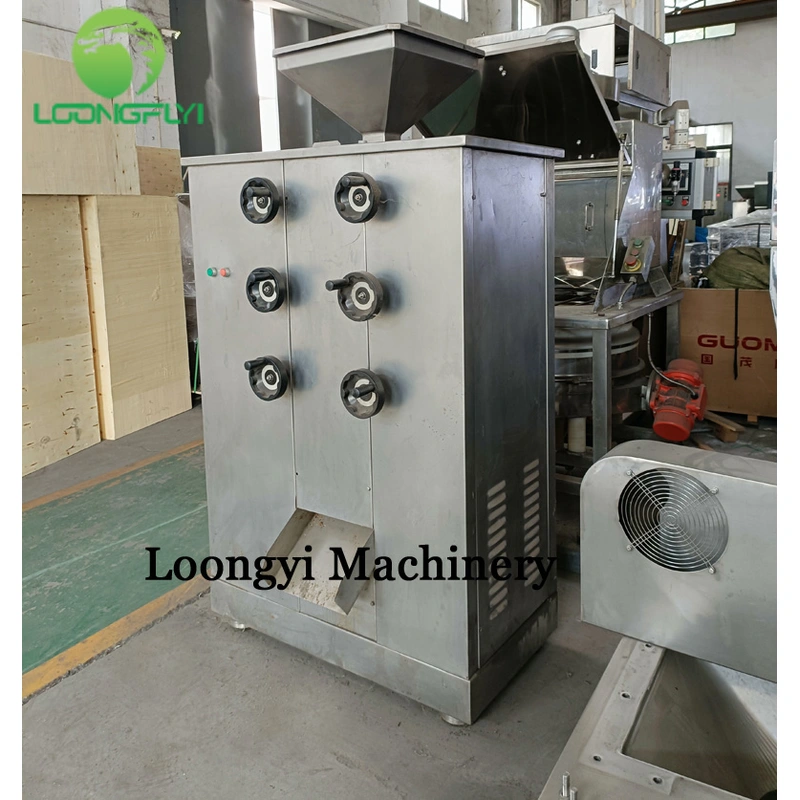

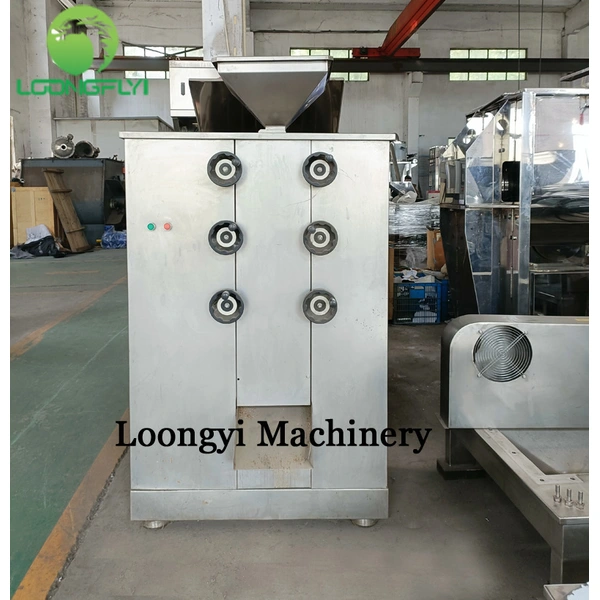

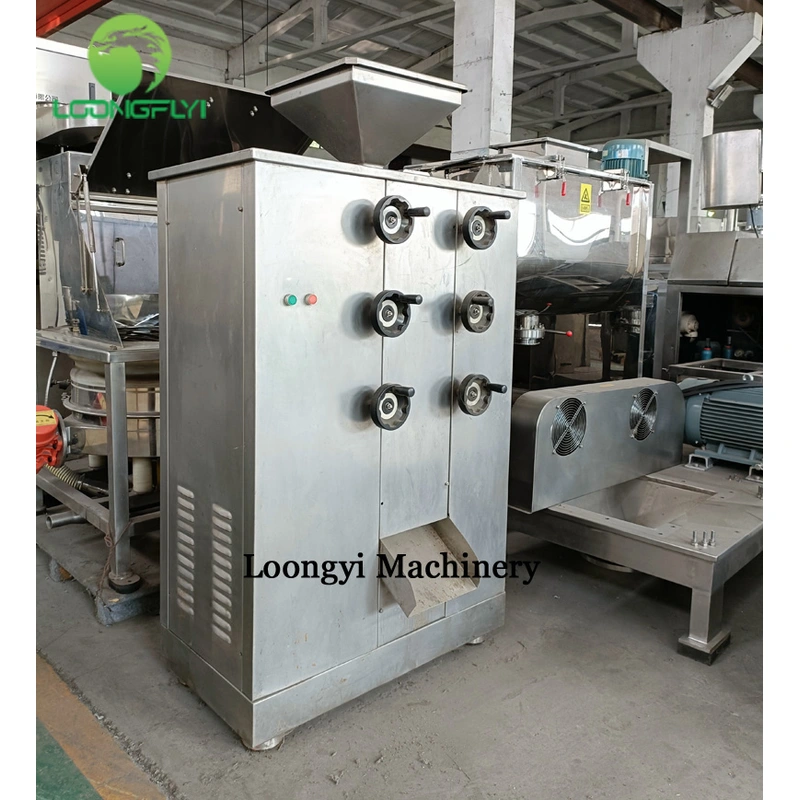

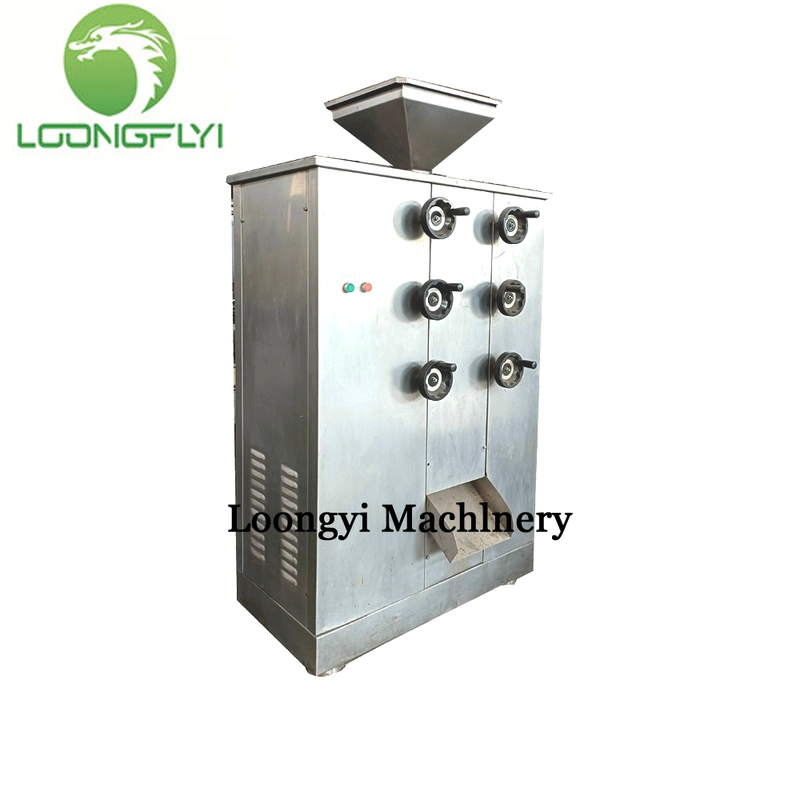

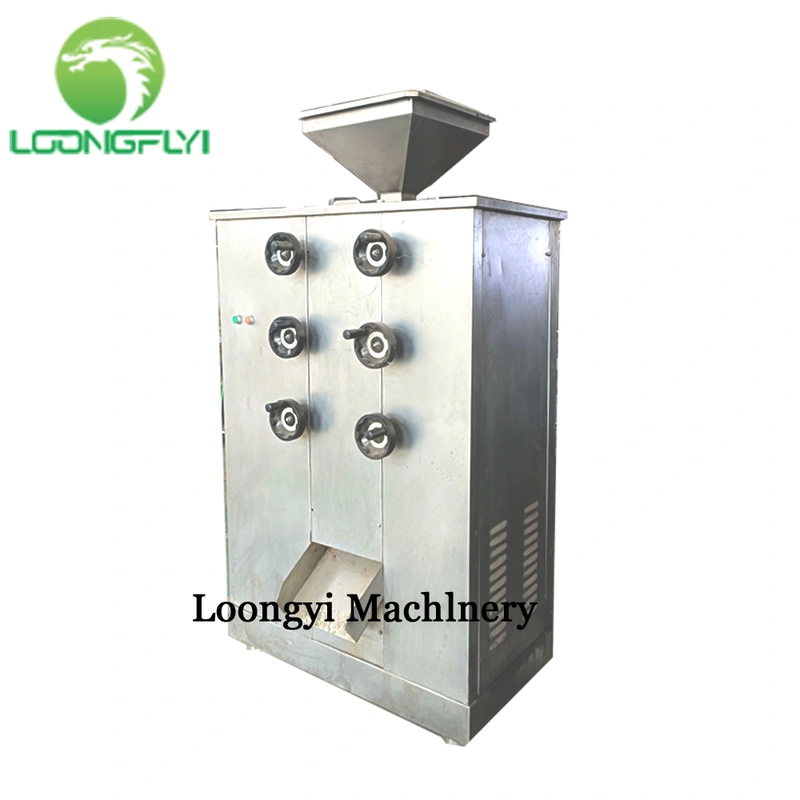

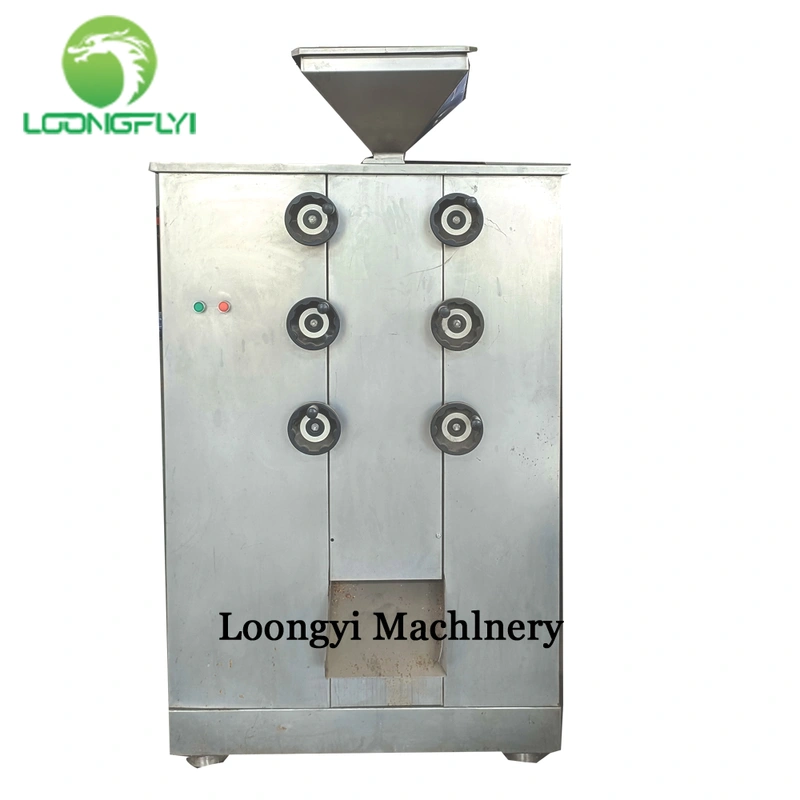

Product Pictures:

LYRM Series Oil Materials Roller Mill
