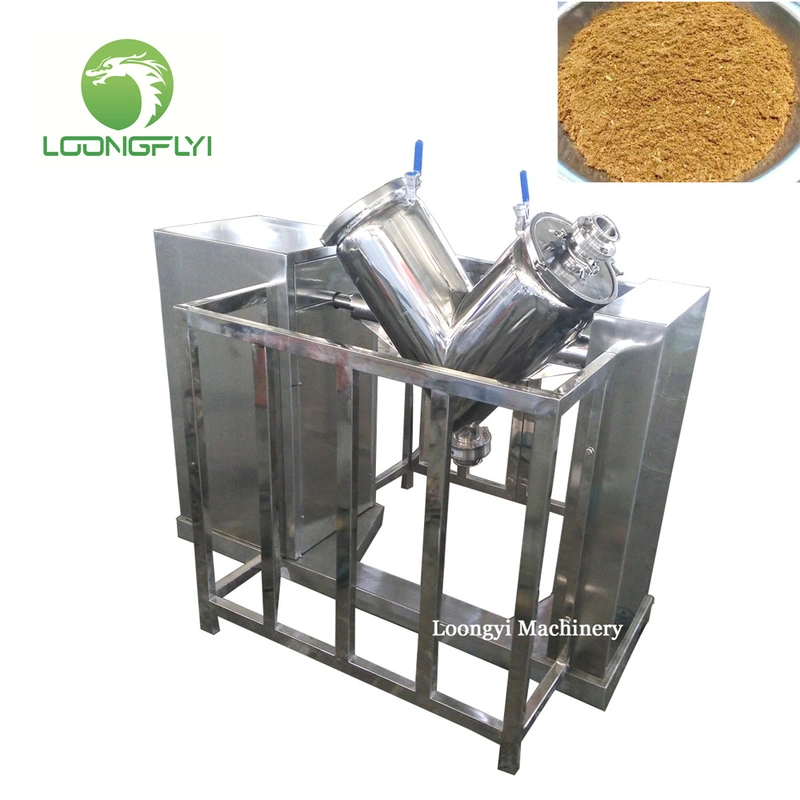

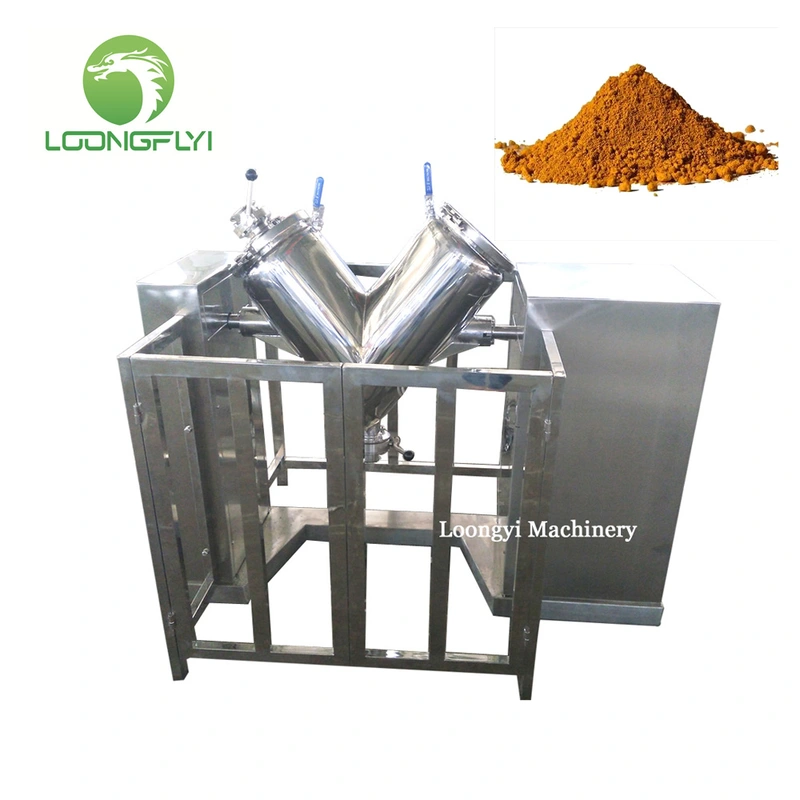

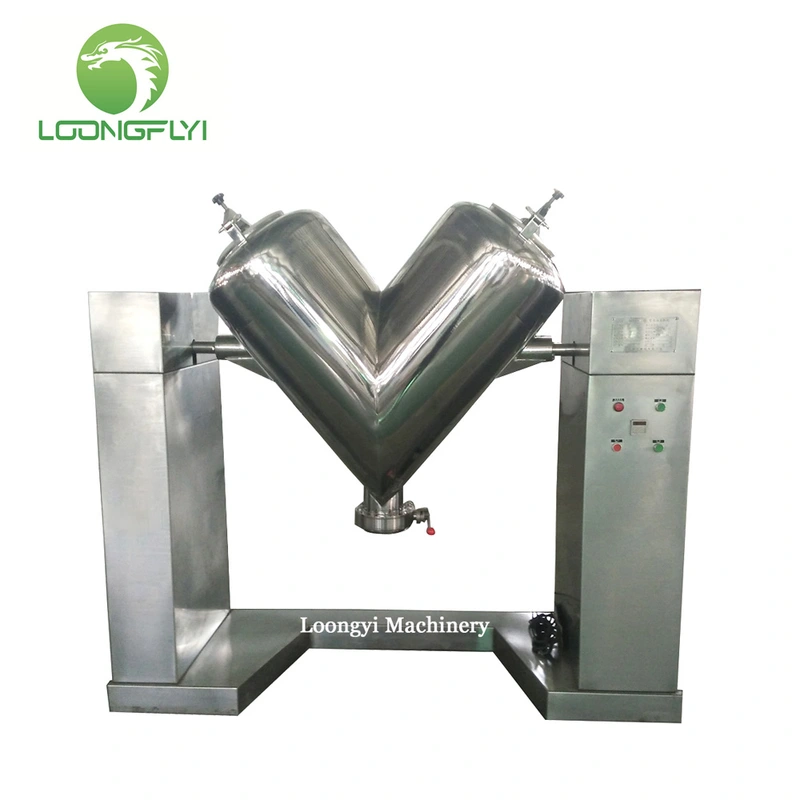

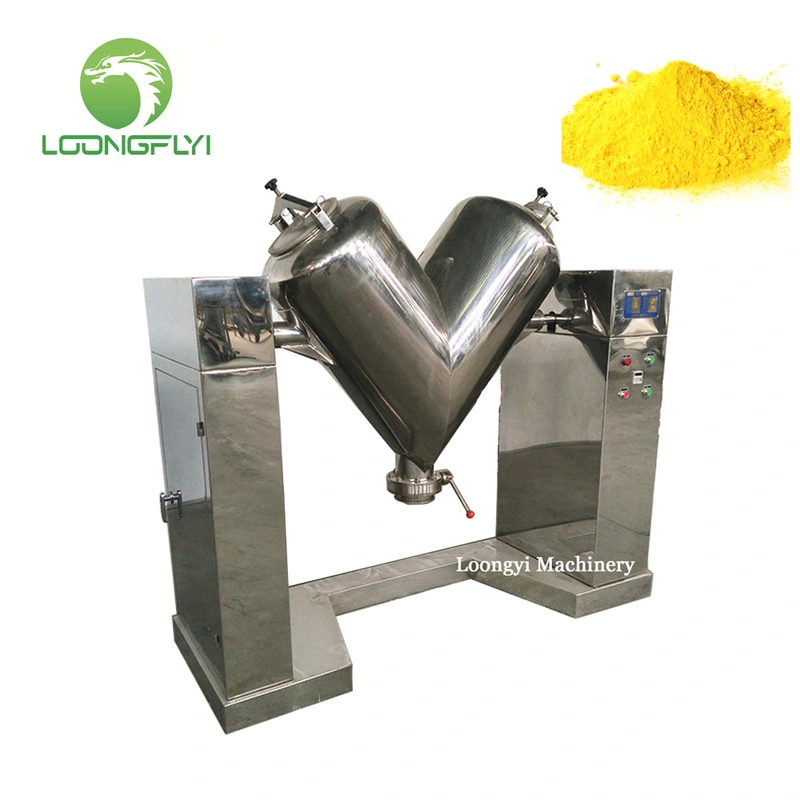

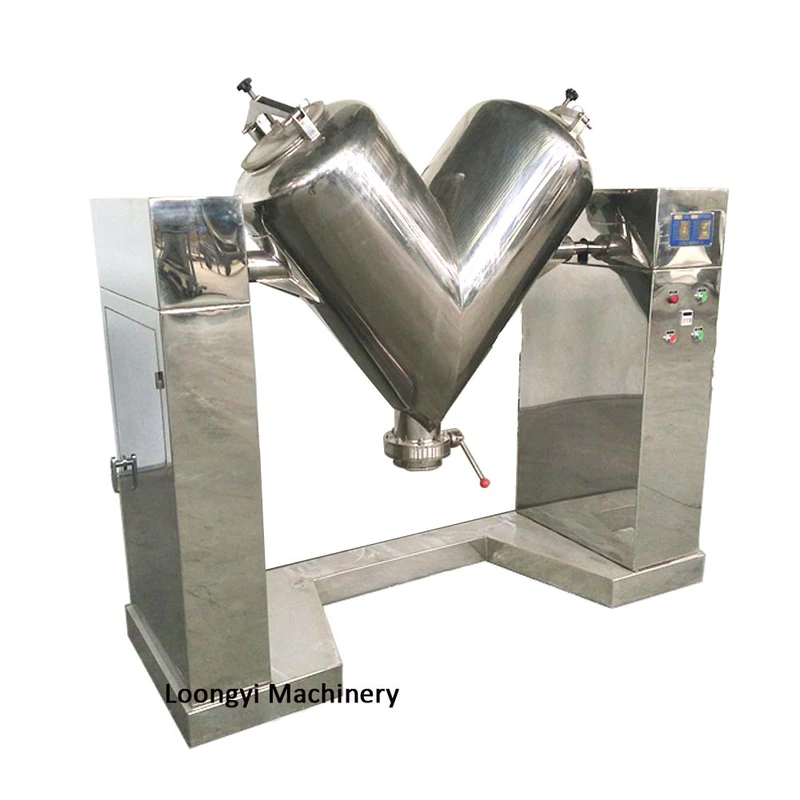

Protein vitamin sugar cocoa powder flour V mixer blender machine

Description

Product Introduction:

V type mixer is widely used in pharmaceutical, food, chemical industry, building materials industry, coating, condiment of industries such as powder mix the raw materials.

Working Principle:

V type cylinder in the drive shaft driving to rotate around the center for the rotary motion, one of the material also with V type two tilt cylinder for gravity diffusion movement, when V type cylinder (bottom) the joint of the rotation is located in position, and when V type cylinder is located in the joint of the rotating position, together in the bottom of the material be shunted to the two inclined the cylinder body, make each inclined cylinder materials and the mouth can be connected to another inclined in the cylinder. With the constantly rotating cylinder, the location of the changes,V type cylinder material being repeatedly dislocation, translation, and the diffusion, so as to realize the mixture evenly.

Technical Data:

Model (LYV)	100	200	300	500	1000	1500	2000	2500	3000
Revolution(L)	100	200	300	500	1000	1500	2000	2500	3000
Production Capacity(L)	50	100	1500	250	500	750	1000	1250	1500
Mixing Time(min)	4-8	6-10	6-10	6-10	6-10	6-10	8-10	10-12	10-12
Agitation speed(rpm)	12	12	12	12	10	10	10	10	10
Power(kw)	1.1	1.1	2.2	2.2	4	4	5.5	7.5	11
Overall size(mm)	1500 × 600 × 1330	1900 × 610 × 1700	2300×600×1800	2700 × 650 × 1950	2900×720×2100	3150×900×2600	3600×1200×2950	3900×1350×3100	4300×1600×3860
Weight（kg）	250	335	400	550	700	1150	1500	1900	2400

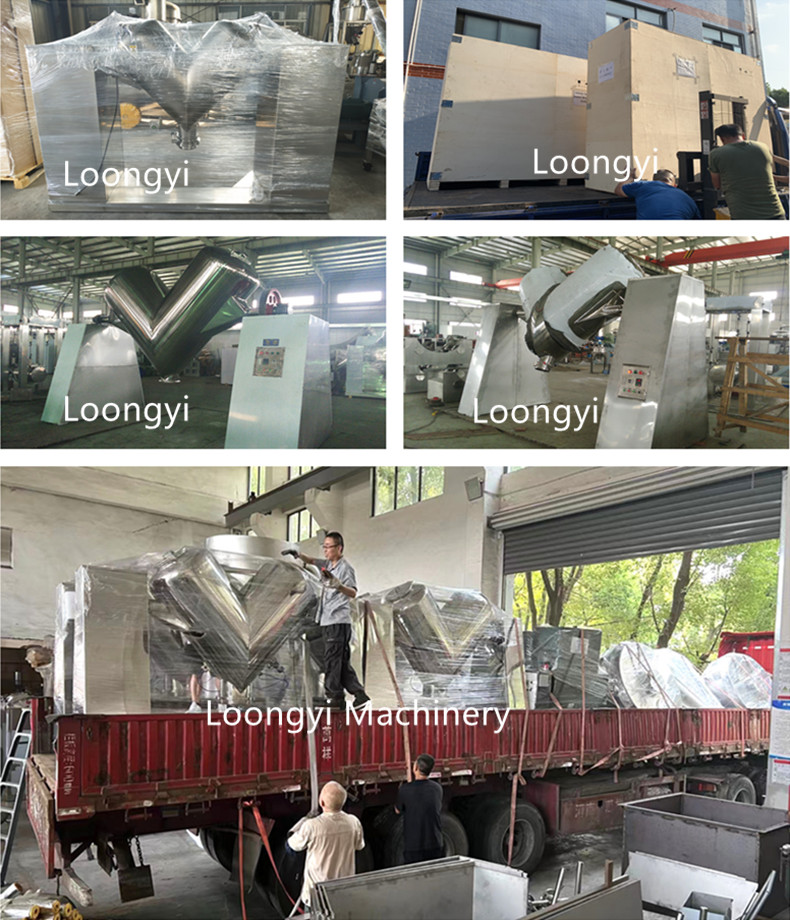

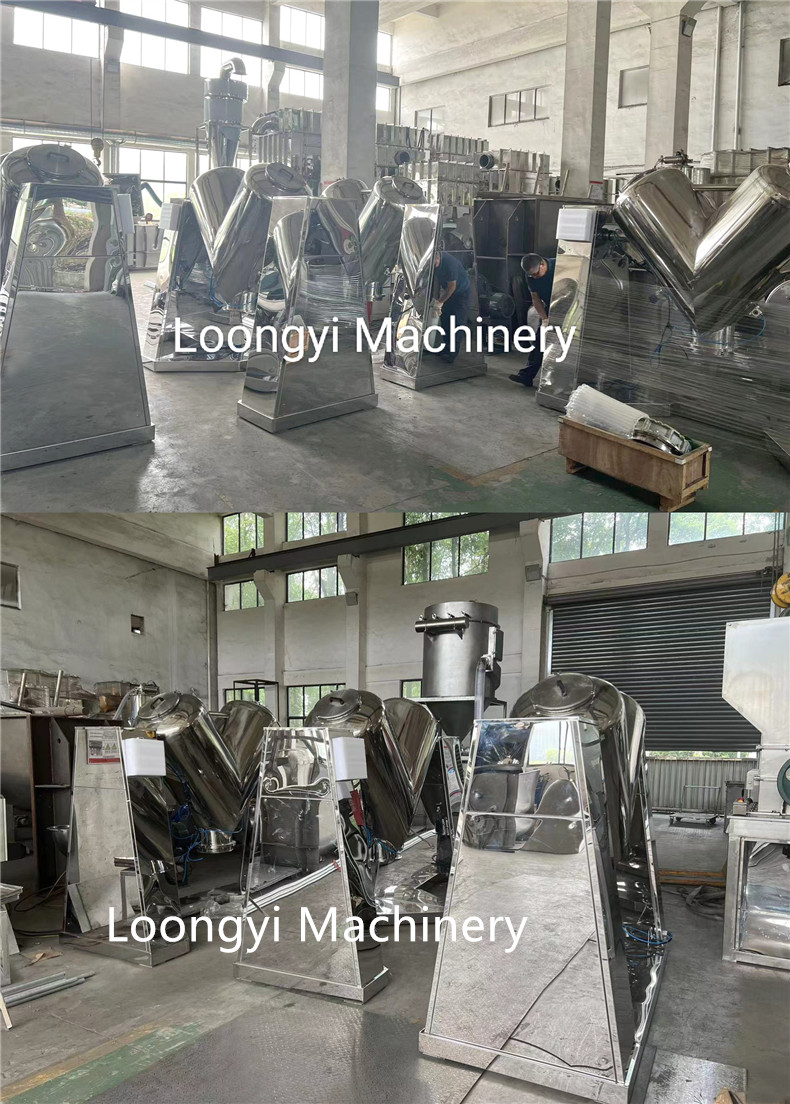

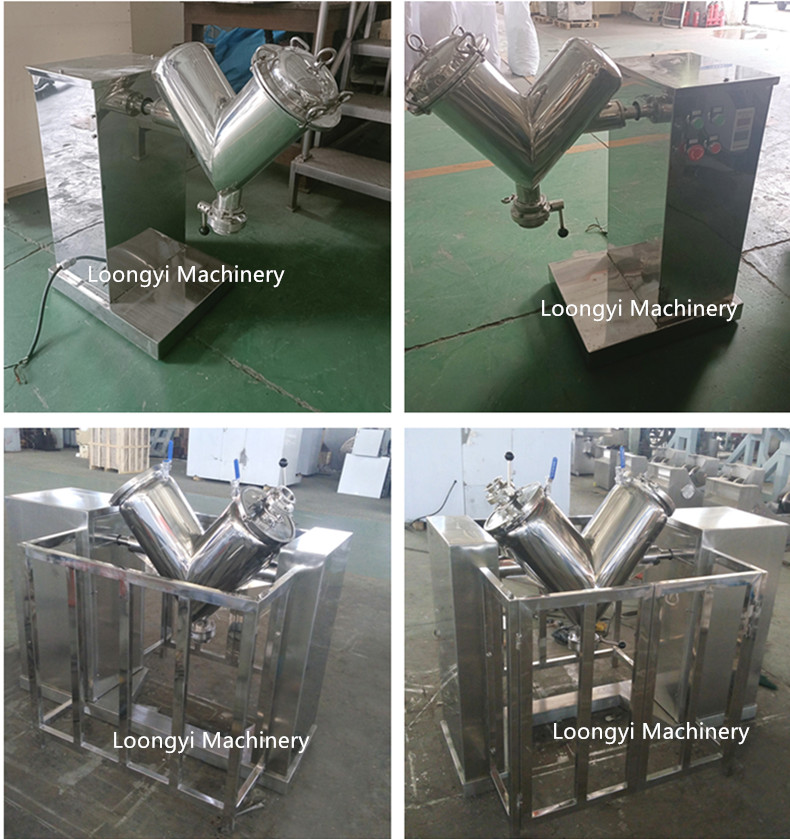

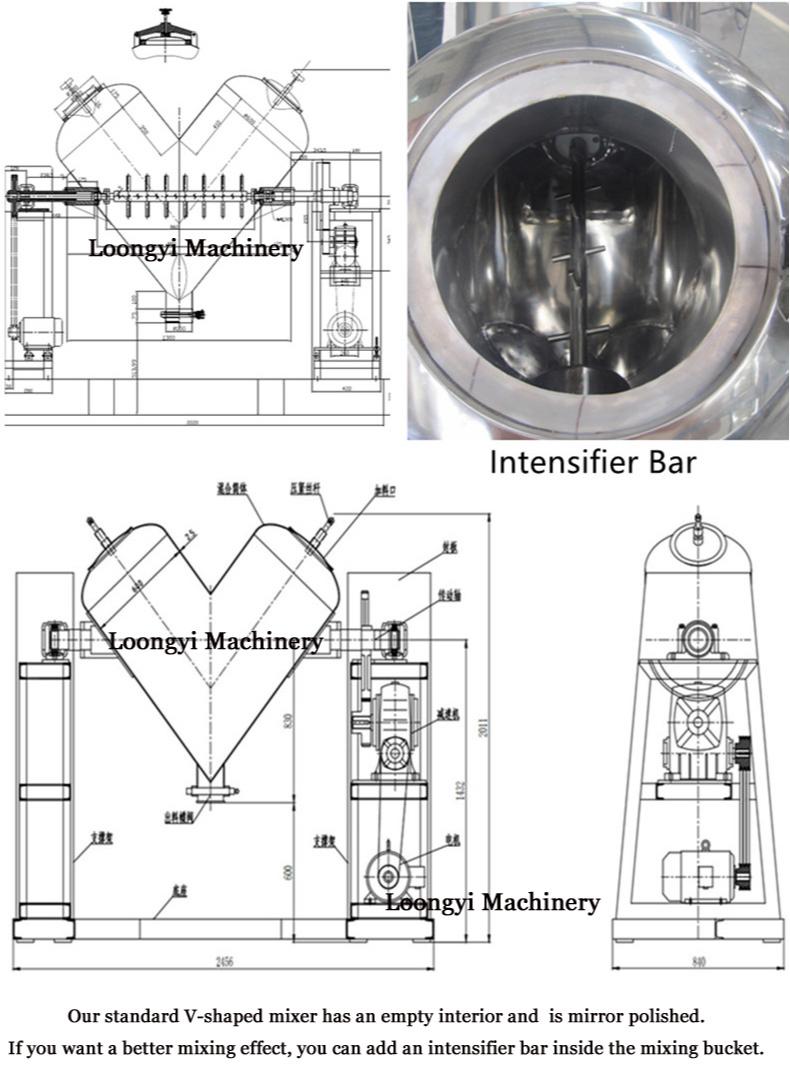

Product Pictures:

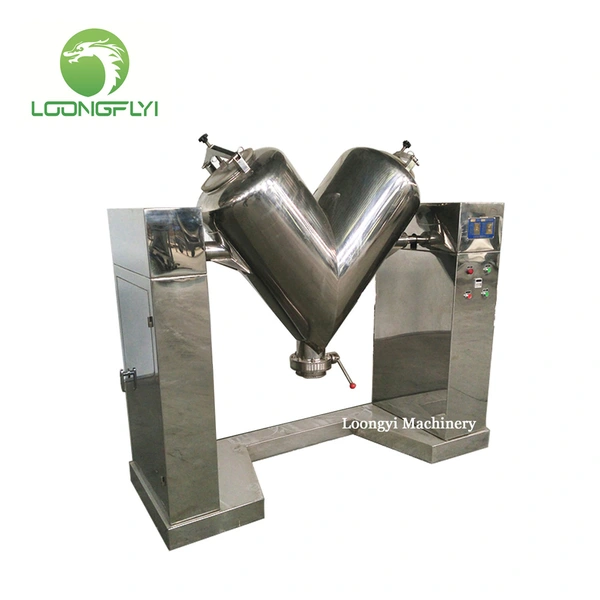

LYV Series V Type mixer
