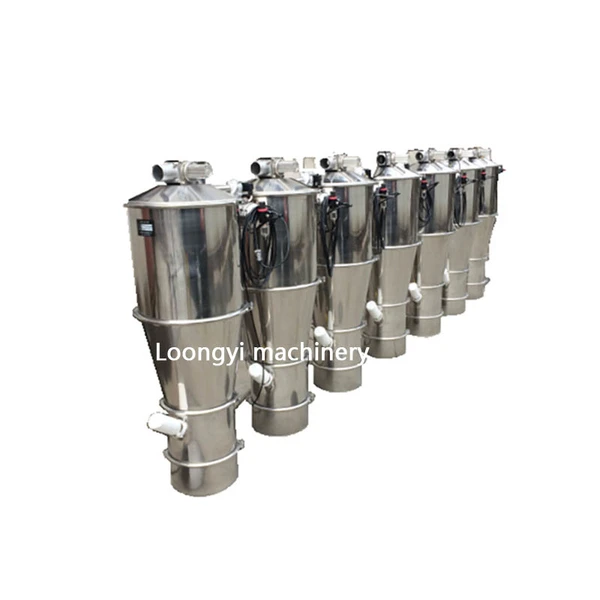

QVC Series Pneumatic Vacuum Feeder

QVC Series Pneumatic Vacuum Feeder

QVC Series Pneumatic Vacuum Feeder

inquiry

Description



Product Introduction:

Vacuum feeding machine can automatically convey materials to grinding machine, mixing machine,  sifting machine,packaging machines,

injection molding machine, and other equipment in the hopper.



Working Method:

Pneumatic vacuum feeding machine conveys material by compressed air through vacuum generator.

It doesn't need mechanical vacuum pump.



Technical Data:

Model

QVC-1

QVC-2

QVC-3

QVC-4

QVC-5

QVC-6

Capacity(kg/h)

350

700

1500

3000

6000

9000

Air   Consumption(L/min)

180

360

720

1440

2880

4320

Air   Pressure Supply(Mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Overall   Size

φ140×560

φ213×720

φ290×850

φ420×1150

φ420×1150

φ420×1350

Suction   pipe(mm)

φ51

φ51

φ64

φ64

φ64

φ64


send inquiry to us
