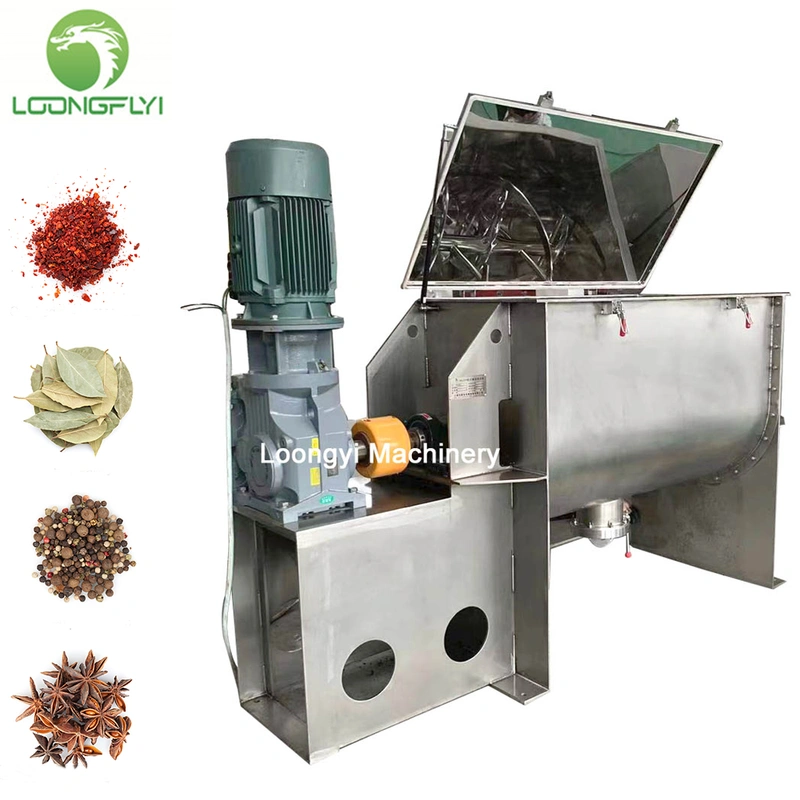

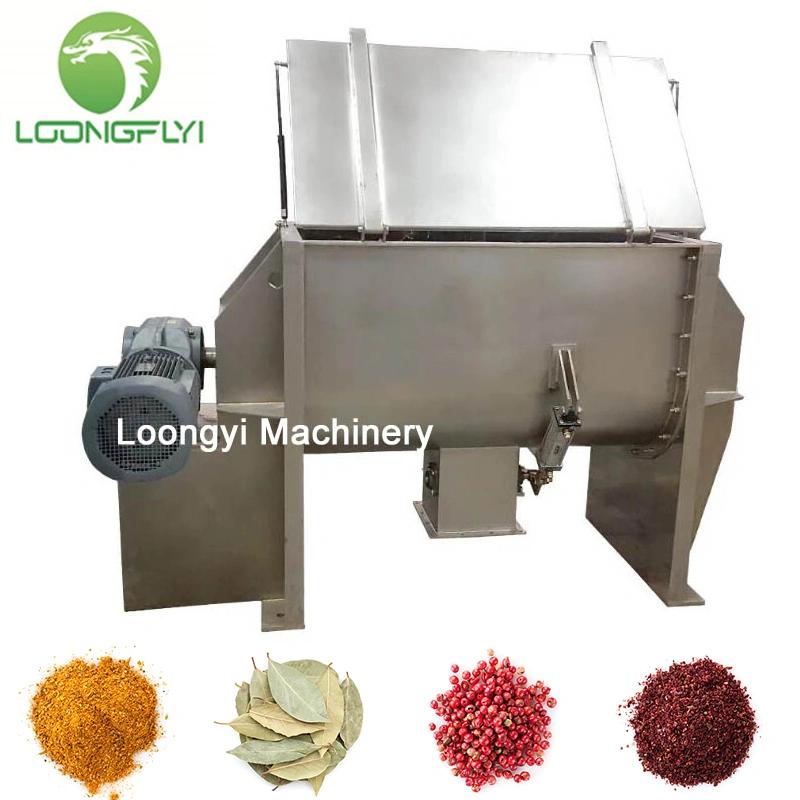

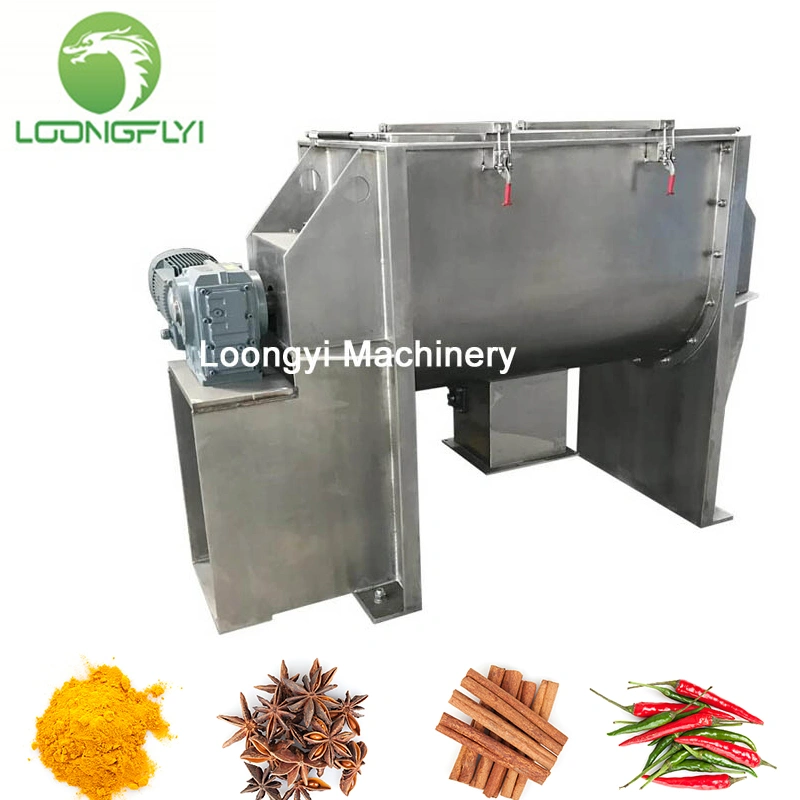

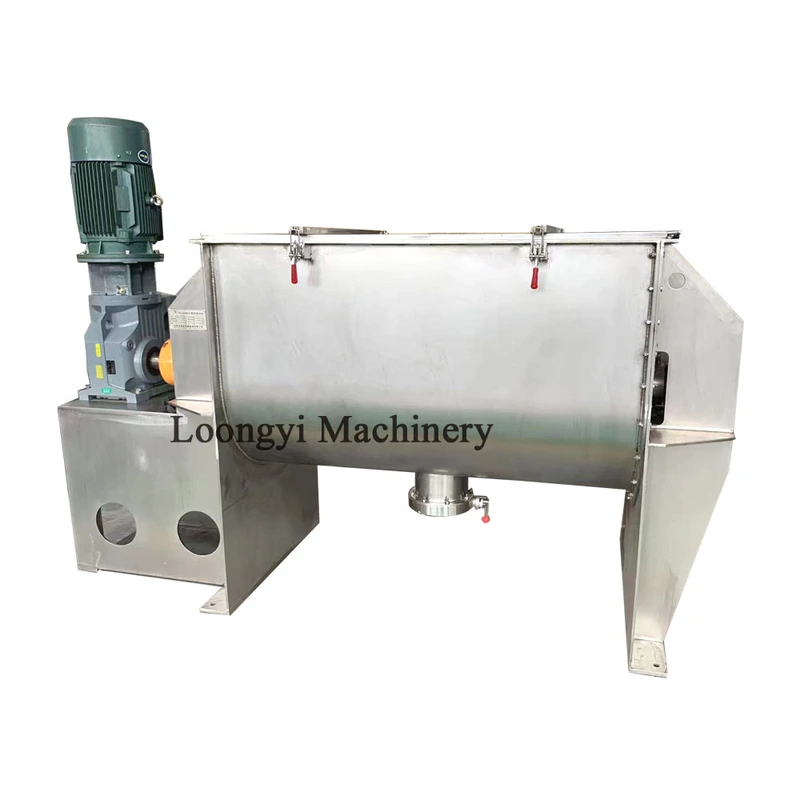

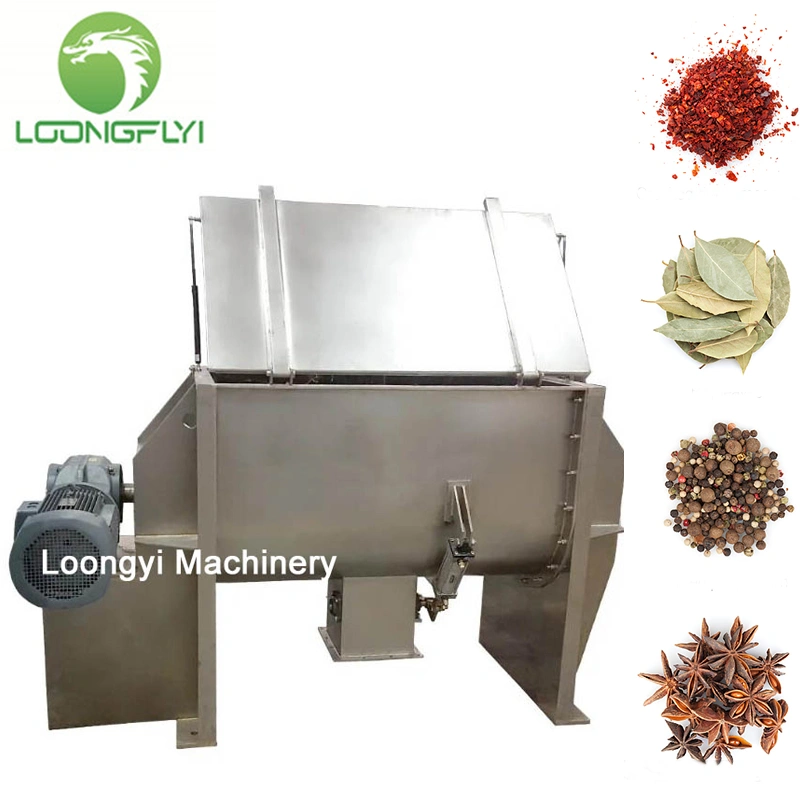

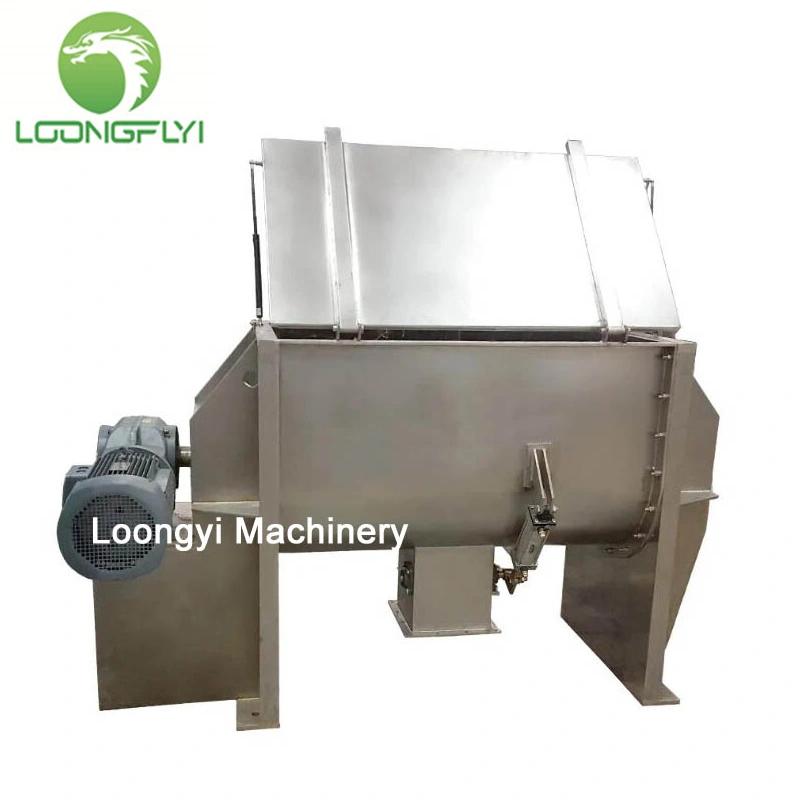

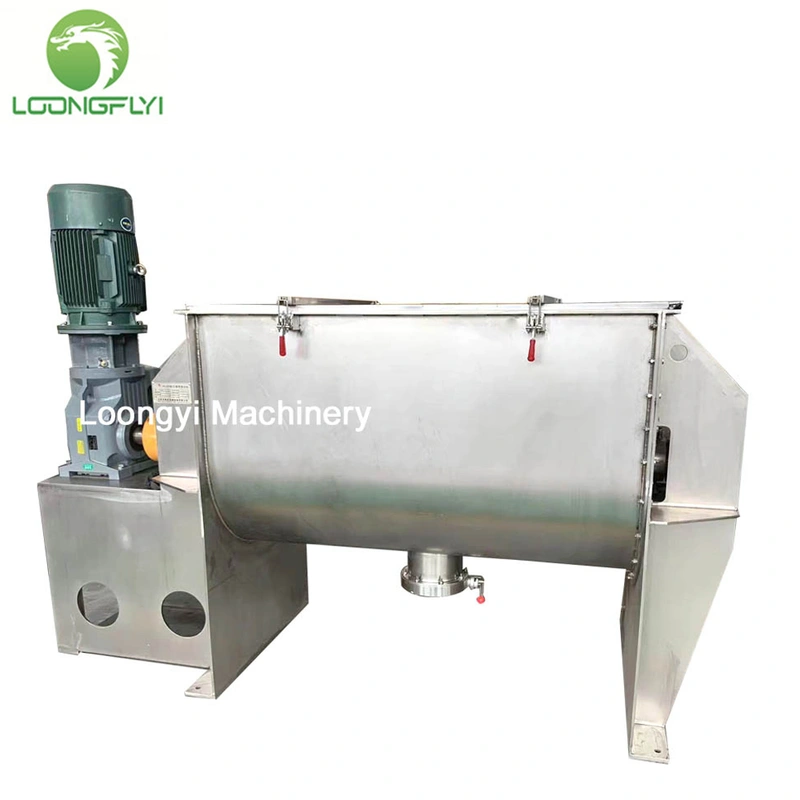

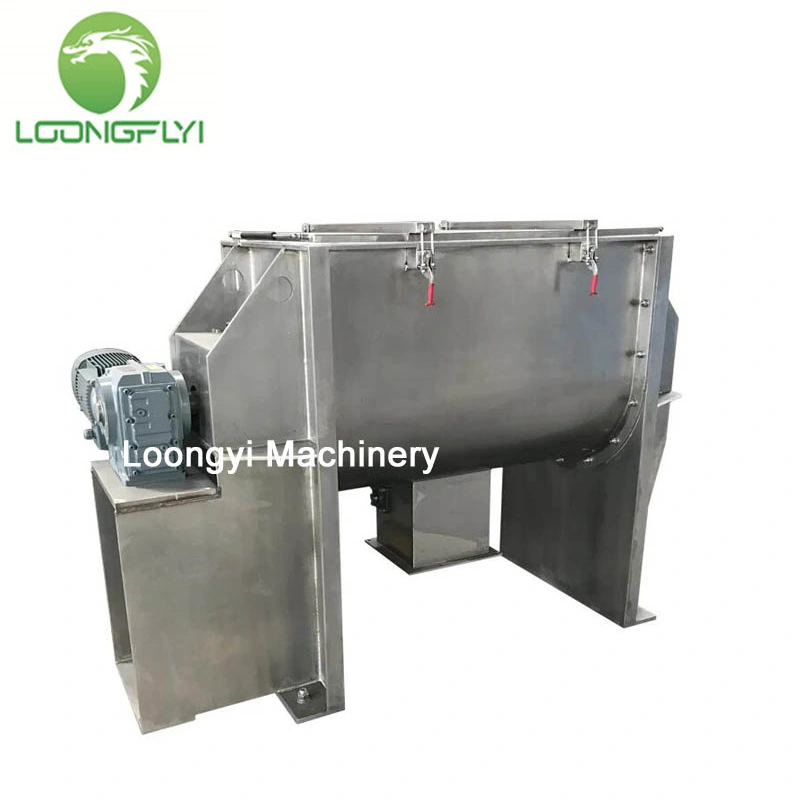

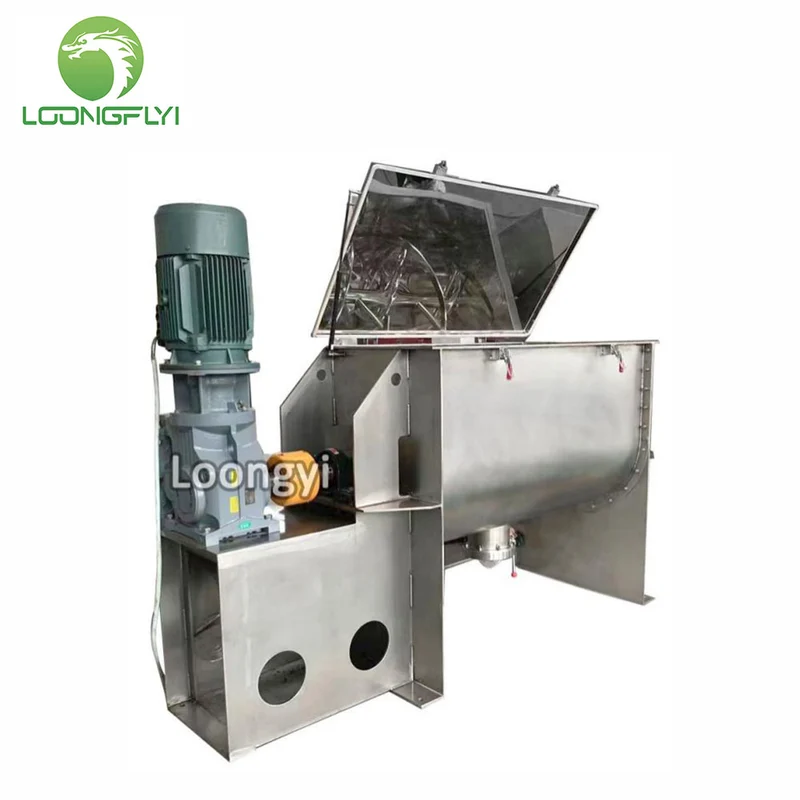

Industrial horizontal ribbon blender mixer fertilizer mixing equipment

Description

Product Introduction:

This machine is a new type of high efficiency, high precision of mixing equipment,widely used in pharmaceutical, food, chemical, and other industries for a variety of powder or paste material of high uniformity mix.

Working Principle:

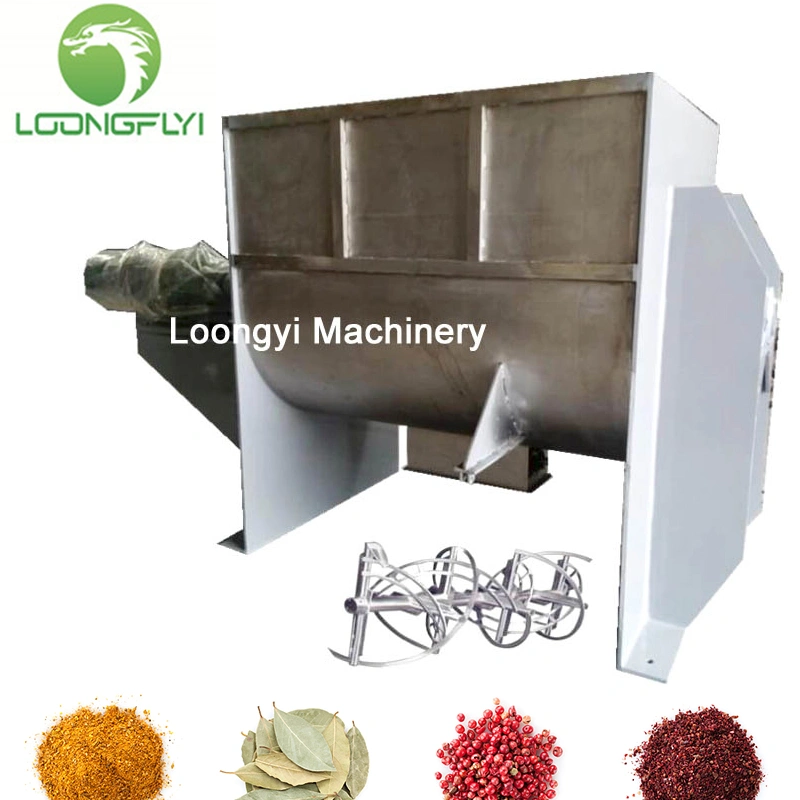

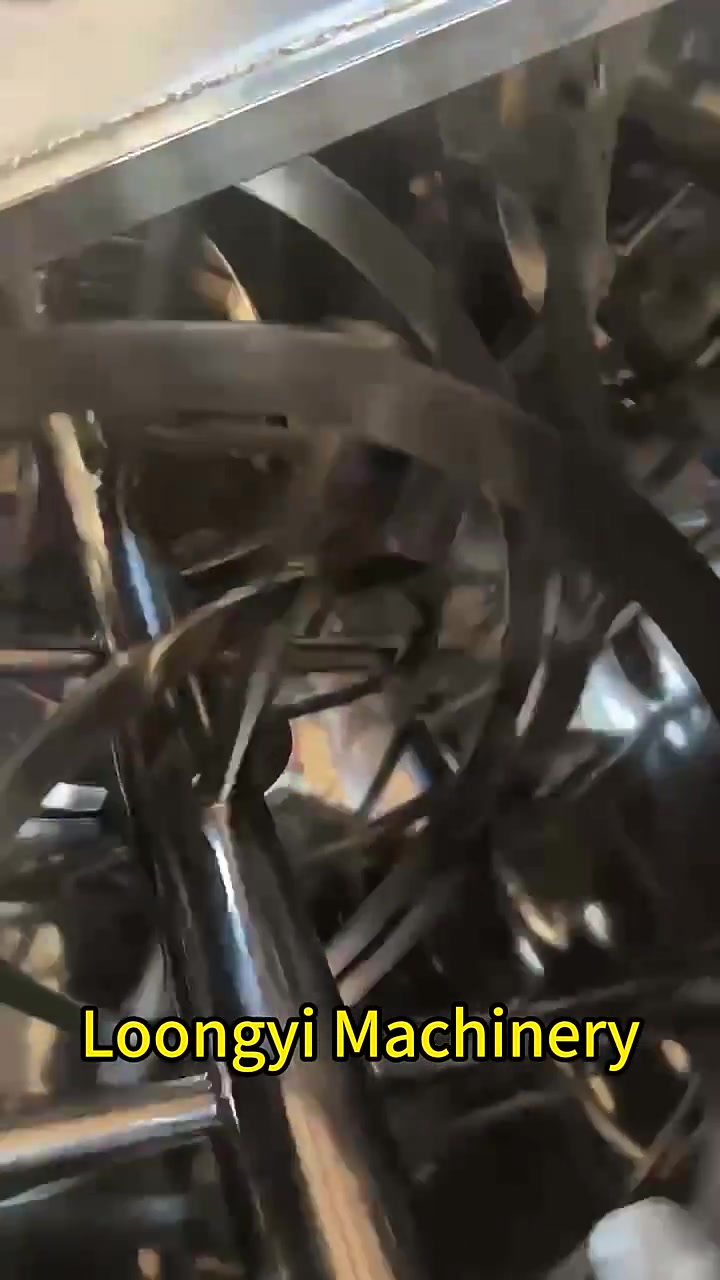

This machine by the mixing barrel, spiral agitating vane and transmission parts,such as spiral blade made of the second floor, the outer spiral material from two side to the central pool,on both sides of the inner spiral material from the central to shunt,make the material in a mixed mix, in a very short so as to achieve the high mixture uniformity.

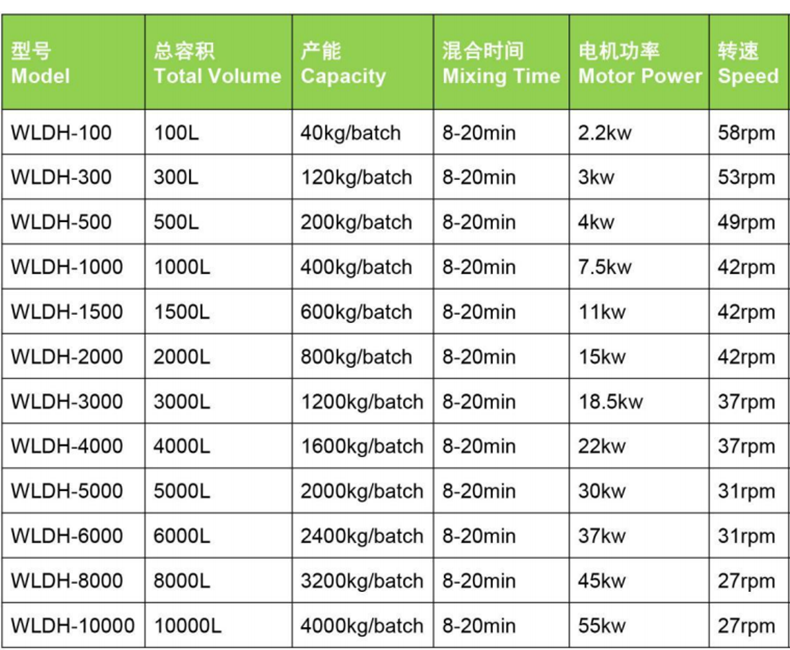

Technical Data:

Model	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Volume (L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Loading capacity(L)	30-60	100-180	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
Motor Powder(kw)	3	4	5.5	11	11	18.5	22	22	37	45	55
Overall Size (mm)	1080 × 758 × 615	1550 × 812 × 1015	1675 × 1142 × 1300	1970 × 1497 × 1550	2200 × 1470 × 1635	2480 × 1651 × 1805	2880 × 1896 × 2055	3026 × 1946 × 2205	3905 × 1882 × 2179	3978 × 2160 × 2516	4500 × 2270 × 2667
Equipment weight (kg)	330	780	955	1400	2000	2500	3300	3600	5300	6880	8900

WLDH Series Horizontal Ribbon Mixer
