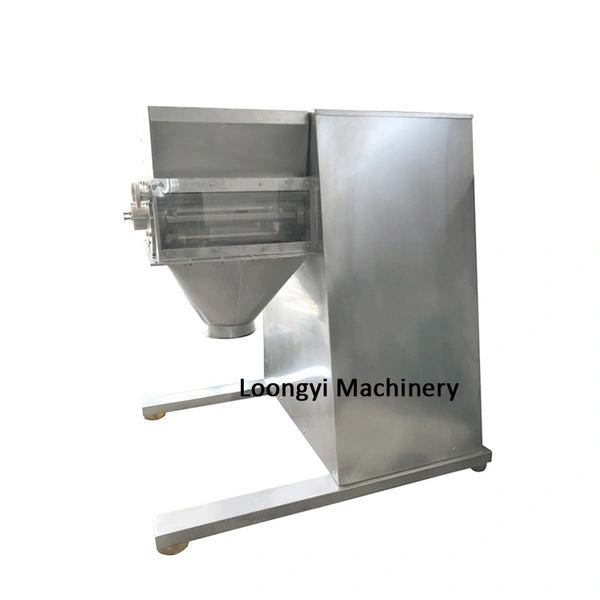

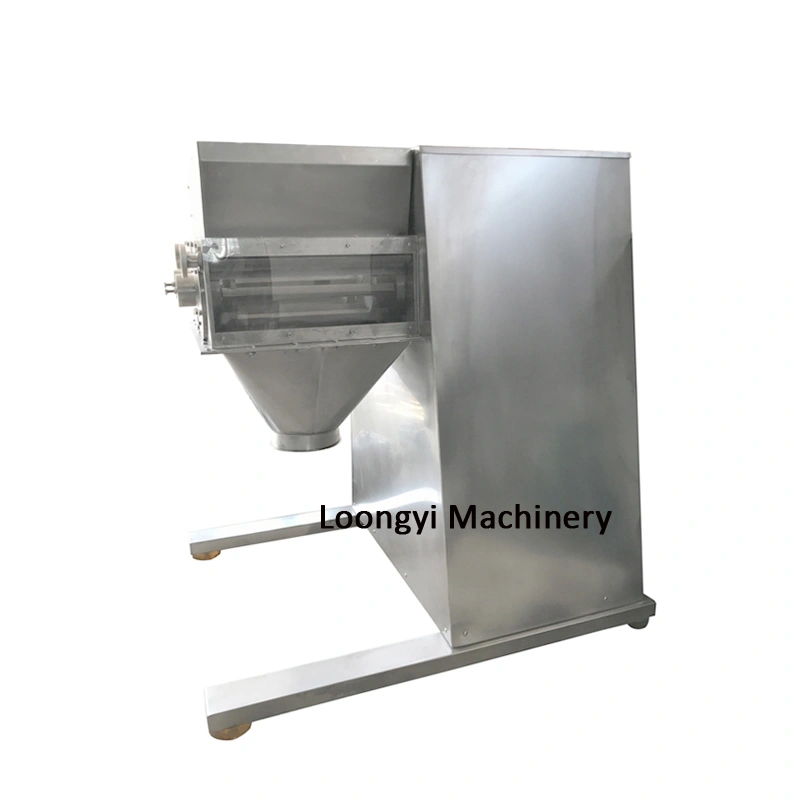

Granule granulation Machine tabletop swing Granulator

Description

Product Introduction:

This machine can make granules from wet powder materials or break down the dry lumpish materials. It is widely used by the industries of pharmacy, chemical, and foodstuff etc.

Working Method:

By driving of mechanism, the cylinder is swing to-and fro to force the target materials squeezed from sieve to make out granules or to smash it as granules.

Technical Data:

Model	YK-60	YK-90	YK-100	YK-160	YK-250
Capacity(kg/h)	20-25	40-50	30-200	100-300	150-400
Power (kw)	0.37	0.37	1.1	2.2	5.5
Speed of cylinder(rpm)	46	46	55	55	40
Swing angle	184°	290°	360°	360°	360°
Diameter of cylinder(mm)	Φ60	Φ90	Φ120	Φ160	Φ250
Overall size (LWH)(mm)	530400 530	700400 780	700400 1050	1000800 1170	1300920 1500
Weight(kg)	100	120	280	380	550

YK Series Swing Granulator
