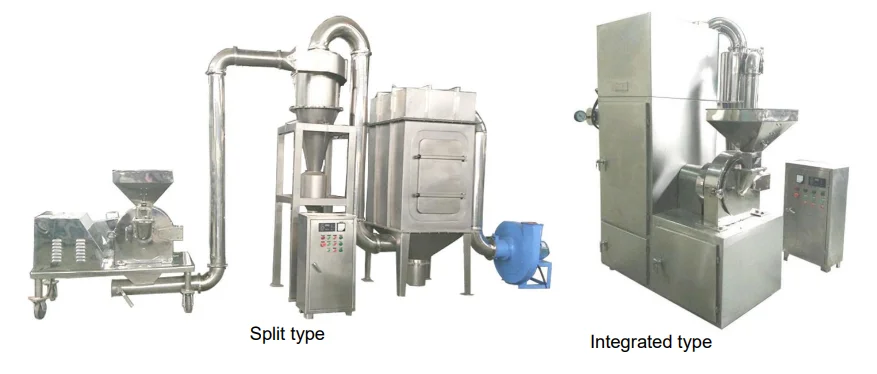

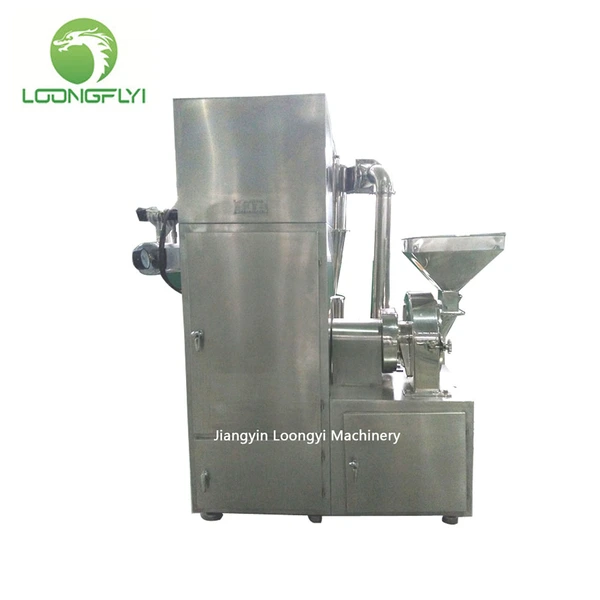

F Series Universal Grinder Unit

This machine is suitable for pharmaceutical, chemical, food, magnetic materials, powder, etc., is

crushing,vacuuming and continuous discharge as one of the new generation of grinding equipment.

Working Principle:

This machine utilizes the relative motion between the movable toothed disc and the fixed toothed

disc to crush the crushed material through the impact, collision, and friction of the cutting disc.

The crushed powder is subjected to the centrifugal force of rotation and the gravitational force

of the fan before entering the cyclone separator and being discharged from the fan. The ultra fine

dust then enters the pulse dust removal box. The ultra fine dust is shaken off at the bottom of the

dust removal box by the pulse meter and recovered through a stainless steel bucket.

The whole machine is designed according to GMP standards and made entirely of stainless steel

materials, with no dust flying during the entire production process.

Technical Data:

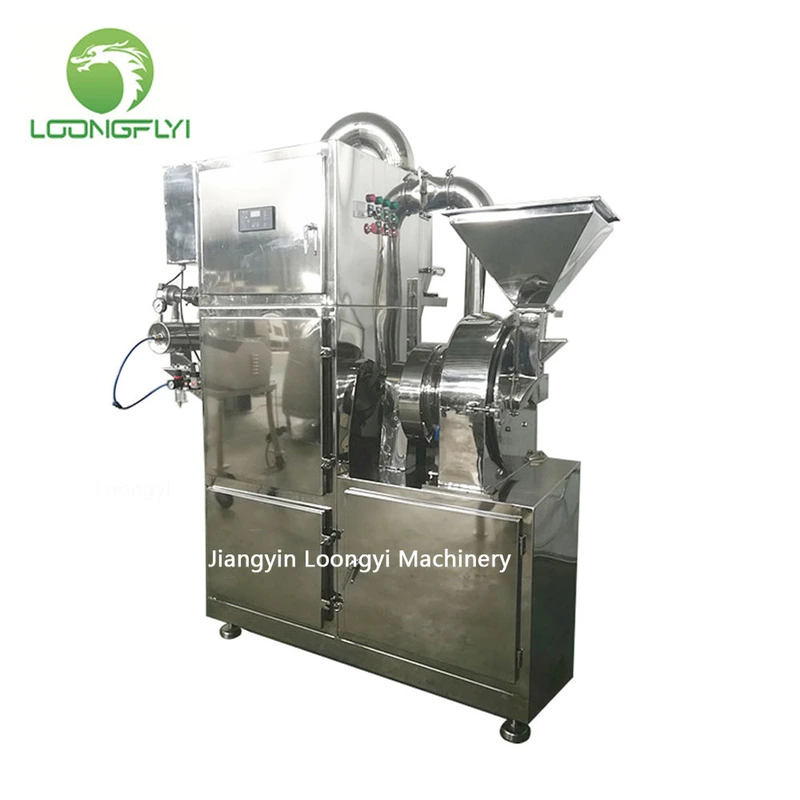

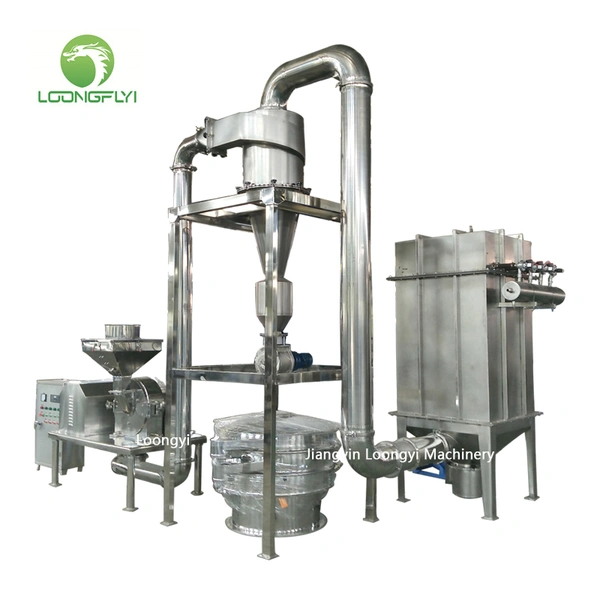

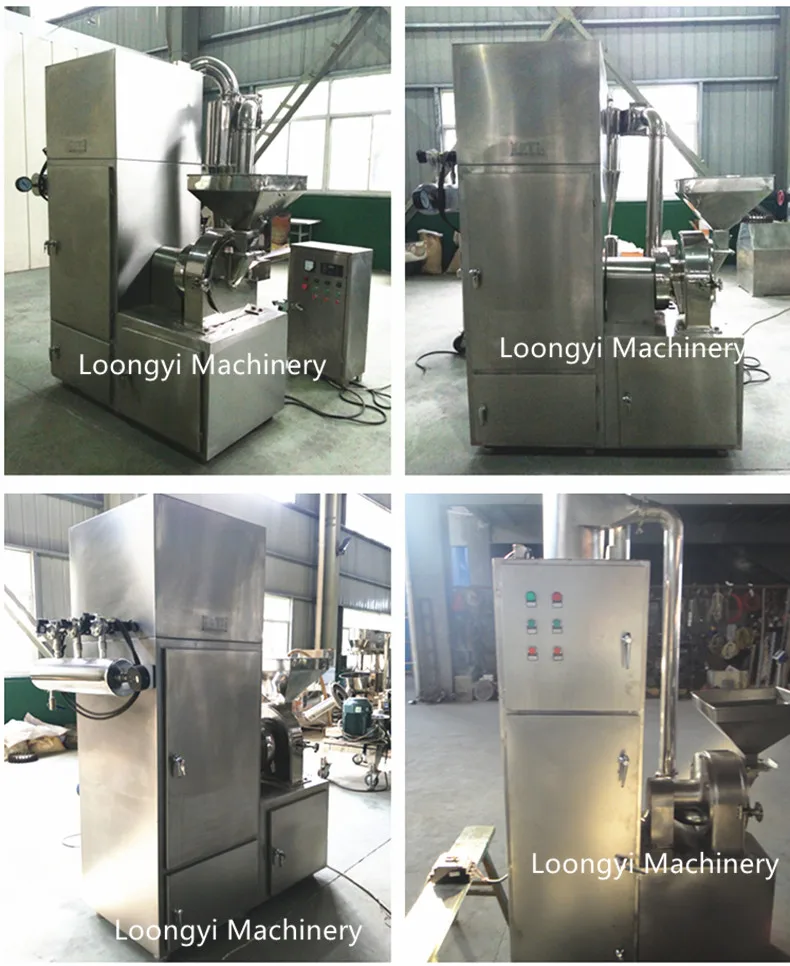

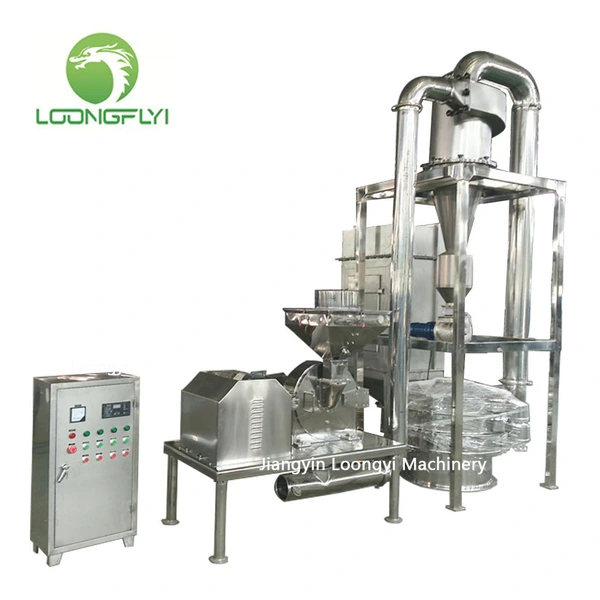

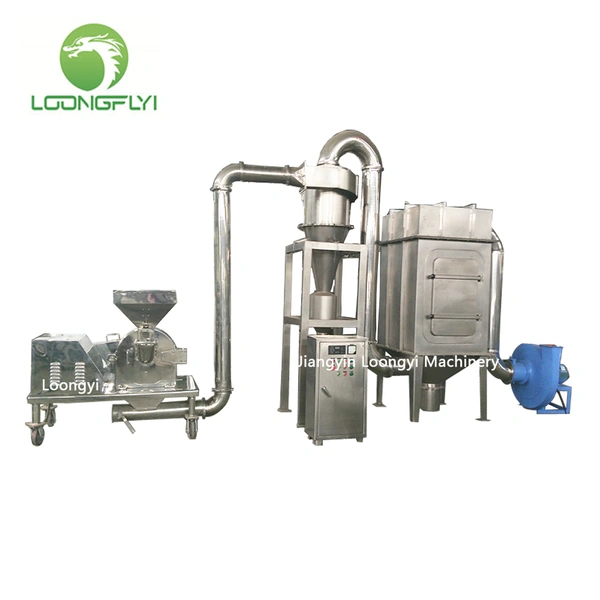

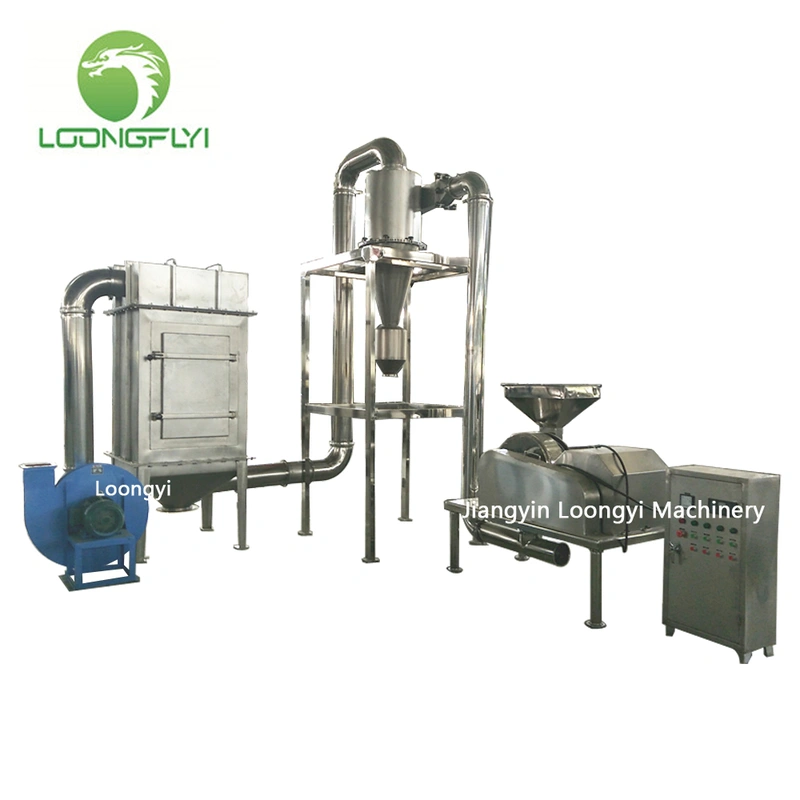

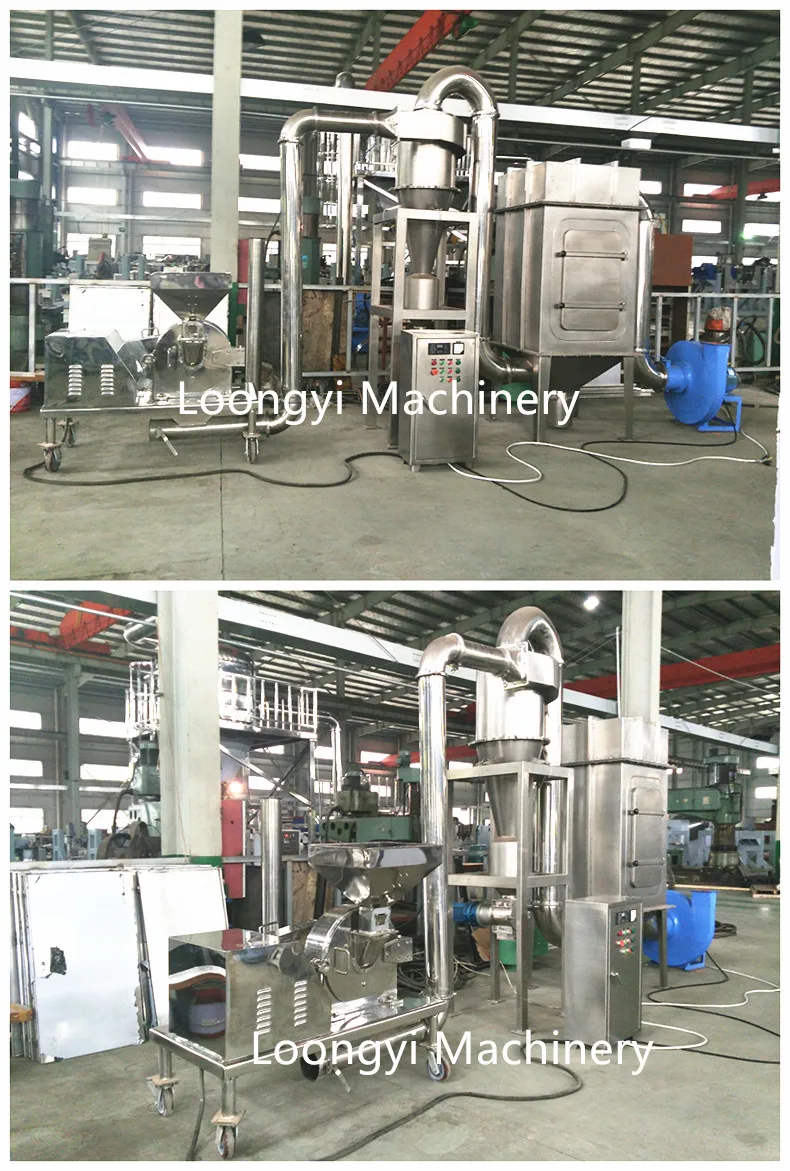

Product pictures:

Six Types Blades:
