Product Introduction:
This unit is applied for the drying of granule materials by the industries of pharmacy, chemical, and foodstuff, as well as for the drying of powder or viscous substance and thermal sensitive materials for multi-kinds of drying functions.

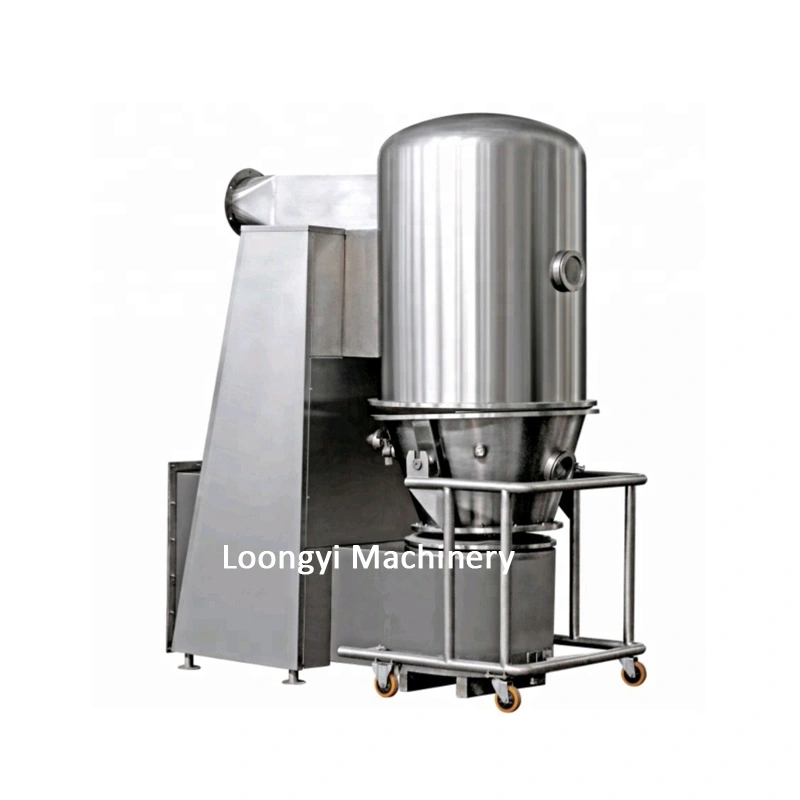

GFGQ Type High Efficient Fluidized Drier is the granule high-efficient drying equipment which is matched with YK Type Swing Granulator or SML Type High-speed Mixing Granulator.It has more fluidized range than traditional horizontal fluidized drier and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block, so it has special advantages for the high wet and sticky material.
It's widely used in:
A. the granule for troche, capsule and instant medicine;
B. big granule and micro-powder in foodstuff, chemical industry, etc.;
C. wet and sticky granule or powder with different sizes.
Working Principle:
Put the material (granule or powder) into the charging hopper. Meanwhile filter the dust in the air by the filter and heat the material to the demanded temperature by the heater. When the air gets through the Dutch sieve, the material is fluidized and dried. The steam is drawn by the fan through the dust bags. The superfine powder will be collected by the filter bags and can be shaken back to the container after fluidizing by the upper shaking cylinder.
Technical Data:
Model | GFGQ-60 | GFGQ-100 | GFGQ-120 | GFGQ-150 | GFGQ-200 | GFGQ-300 | GFGQ-500 |
Batch charging(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 |
Blower | Air flow(m3/h) | 2361 | 3488 | 3488 | 4901 | 6032 | 7800 | 10800 |
Air pressure(mm)(H2O) | 494 | 533 | 533 | 679 | 787 | 950 | 950 |
Power(kw) | 7.5 | 11 | 11 | 15 | 22 | 30 | 45 |
Agitating power(kw) | 0.4 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.5 |
Agitating speed(rpm) | 11 |
Steam consumption(kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 |
Operating time(min) | 15-30 (According to the material) |
Height(mm) | Square | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
Round | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 |
