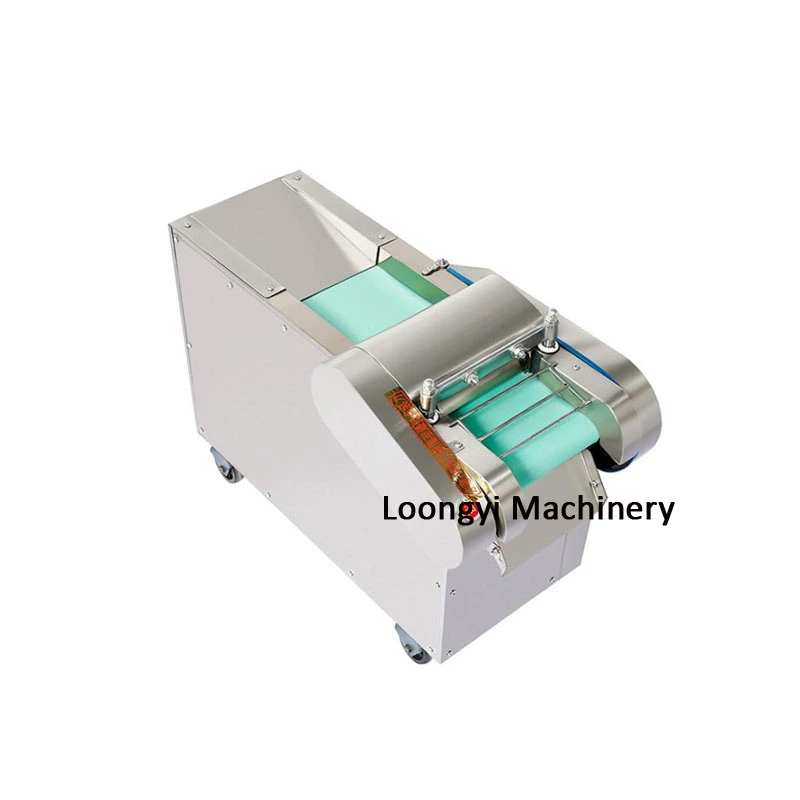

Product Introduction:
This machine is suitable for slicing, shredding, dice and granulating of leaf vegetables, rhizomes, Chinese herbal
medicines, dried fruits and peppers. The multi-function vegetable cutter is designed by using the national standard
copper wire motor, food grade stainless steel and imported cutting tools to simulate the principle of manual vegetable cutting.
It adopts the food grade conveyor belt for conveying, the vegetable pressing belt is fixed, and the vertical knife cuts the material quickly.
The conveying speed of the conveyor belt determines the length of the cutting section. The conveying speed can be adjusted by changing t
he eccentric position of the side bar of the synchronous ratchet.
Application Fields:
LYBS cutter machine are widely used for cutting and processing various roots, stems, leafy vegetables, kelp and bean products, such as cucumbers,
radishes, bananas, etc. By changing different cutters, you can cut root vegetables into slices, shreds, cubes, rhombus, can also cut slender vegetables (celery, beans, etc.)
into segments, and cut leafy vegetables into shreds. Thus the machine can be used to process various fruit and vegetable products like salads, chips, french fries,
freeze-dried fruits, candied fruits, etc. This machine is easy to operate. All you need to do is placing materials on the conveyor belt and turning on the machine.
This machine simulates manual vegetable cutting and is developed by advanced technologies such as "stepless speed regulating" and "centrifugal slicing device"
(with the centrifugal drum). The cut vegetables are not damaged and high in freshness, which retains the original flavor and nutrition to the greatest extent.
Technical Data:
Model | LYBS-660 | LYBS-1000 |
Capacity (kg/h) | 100-600 | 200-1000 |
Motor power (kw) | 0.75 | 1.5 |
Transmission size (mm) | 1200*217 | 2200*318 |
Overall Size (mm) | 900*460*740 | 300*570*1020 |
Weight (kg) | 95 | 180 |
