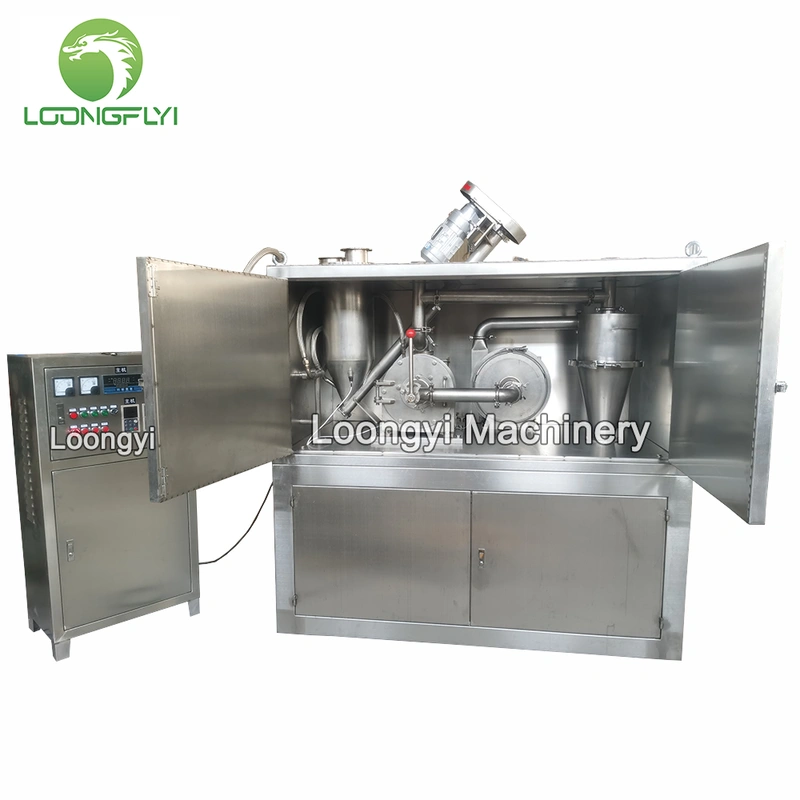

LYCM Cryogenic Mill

Product Introduction:

Our cryogenic mill uses the liquid nitrogen as the cooling medium, achieving a wide temperature

control range from -196℃-0℃, which can accurately match the embrittlement point of different

materials. This advanced cryogenic grinding technology avoids component loss, volatilization,

oxidation and denaturation of heat-sensitive and oxidizable materials during the cryogenic milling

process, fully retaining the active ingredients, natural flavor, nutrition and core properties of raw materials.

This machine is widely used in industries such as pharmaceutical, food, chemical, and health health

care products. It is particularly suitable for pulverizing heat-sensitive, high-oil, high-sugar, and high-fiber

materials, as well as materials that are flammable or explosive at ambient temperatures. Such as

spices, fruits and vegetables, herbs, medicines, plastics, rubber, nylon...etc. The temperature and

output size are controllable and adjustable.

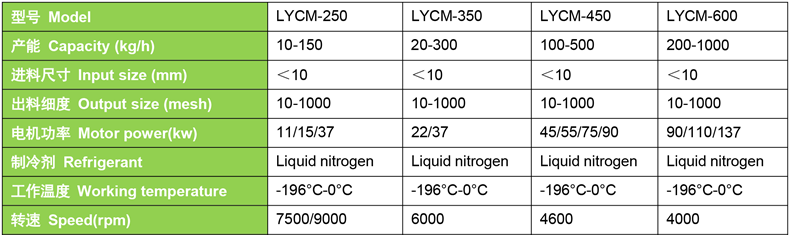

Technical Data:

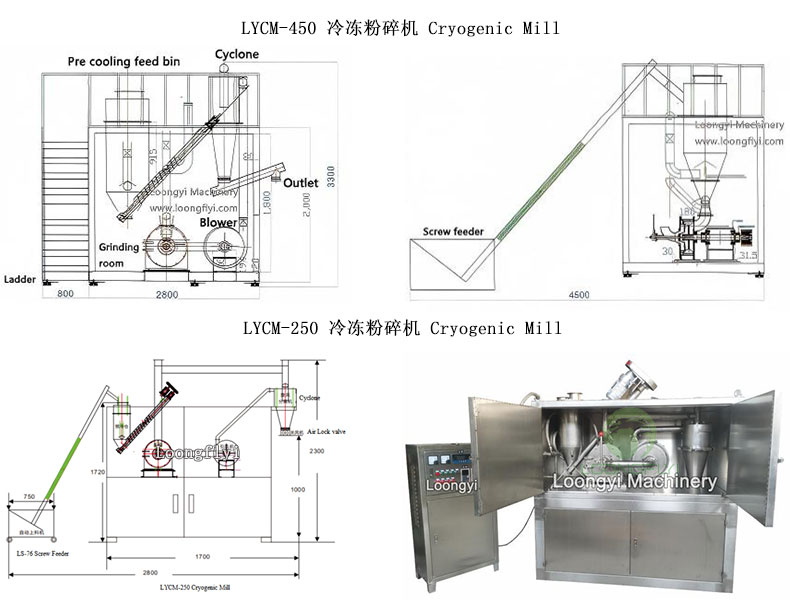

Machine composition:

1. Feed hopper (pre cooling silo)

2. Screw conveyor

3. Grinding room

4. Blower

5. Cyclone and screw feeder/Cyclone and air Lock valve (for discharge)

6. Electric control box

7. Connecting pipelines

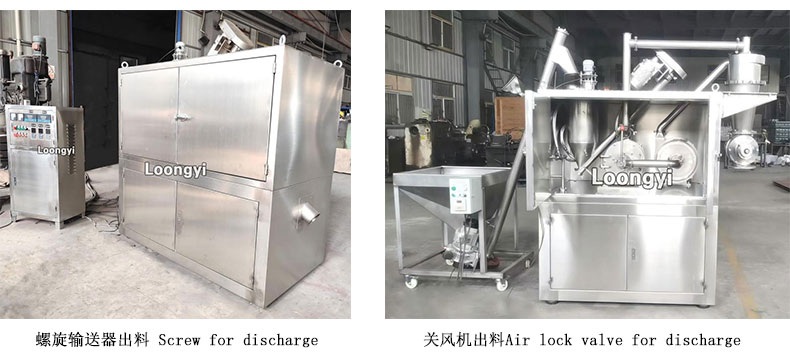

There are two ways of discharging:One is screw discharge, which requires connecting a cloth bag.

The other is air lock valve, which does not require the use of a cloth bag.
