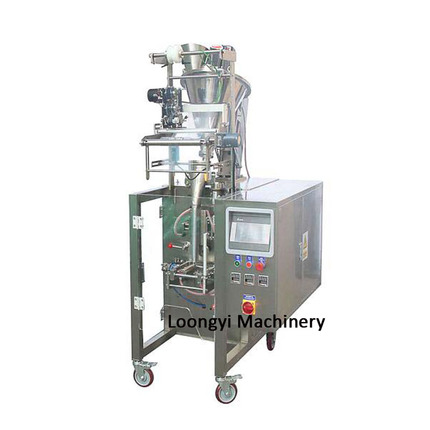

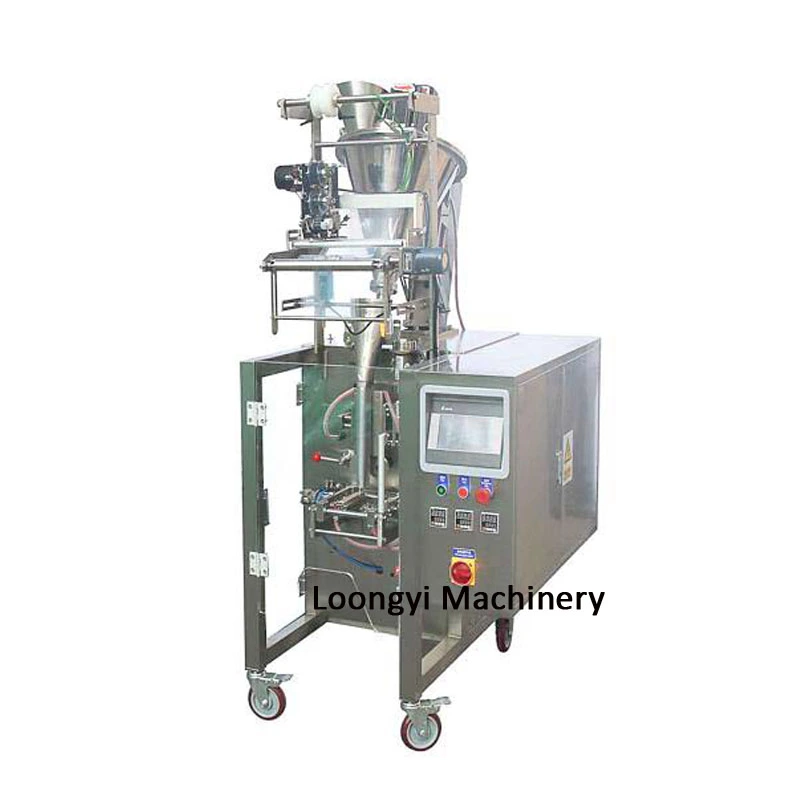

LYPM-F Sachet Automatic Powder Packing Machine

LYPM-F Sachet Automatic Powder Packing Machine

LYPM-F Sachet Automatic Powder Packing Machine

Description

Introduction:

LYPM-F is our small bag fully automatic filling machine,  used for packing powder or granules into super small bags.

It can do dosing and filling work for food, chemical,  and pharmaceutical industry. With automatic weighing function,

different size bags can be filled. Certainly,  the packing bag size has a limit, the size should be within 30-100mm in

width and within 30-165mm in length.

Advantages:

1.The machine is composed of filling equipment, dosing hopper, column and electronic control system.

2.There will be Chinese/English operation instruction displayed on the touching screen for operation convenience.

3. Screw conveyor machine can be added for the realization of automatic feeding process.

4. The packing machine is fully automatic, very convenient.


Technical Data:

Film   width

  50-240mm

Bag size

W:30-150mm    L:30-170mm

Packing   speed

35~65   packs/minute

Measure   method

auger   weighing

Sealing   type

3/4 side   seal, back seal

Measure   weight

5 ~100 g

Power

1.5KW

Power   supply

1P/220V/50HZ   (can be customized)

Machine   size

1100*850*1800mm

Weight

220kg
