Product Introduction:
Air Classifier Mill, its another name is Ultra Fine Powder Pulverizer, with a winnowing, no screen,
a variety of properties and uniform particle size, the production process is continuous.
Crushing operations in the host machine is not heating up, can crush all kinds of heat sensitive
materials.The overall performance has reached international advanced level, it is widely used in
pharmaceutical,chemical, food, Medicine, Health care...etc. Food, such as, corn, rice, chili, pepper,
oil and wheat, soybean,garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, ginger,
garlic, sugar, sweeteners. grains,dried small shrimps, pumpkin powder, spices, seaweed, and other
industrial materials crushed.
Working Principle:

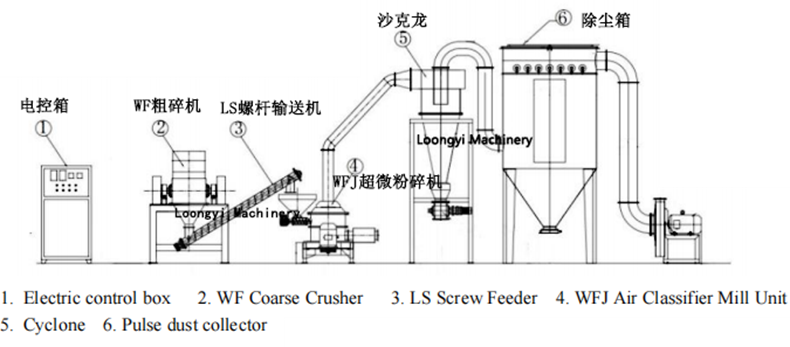

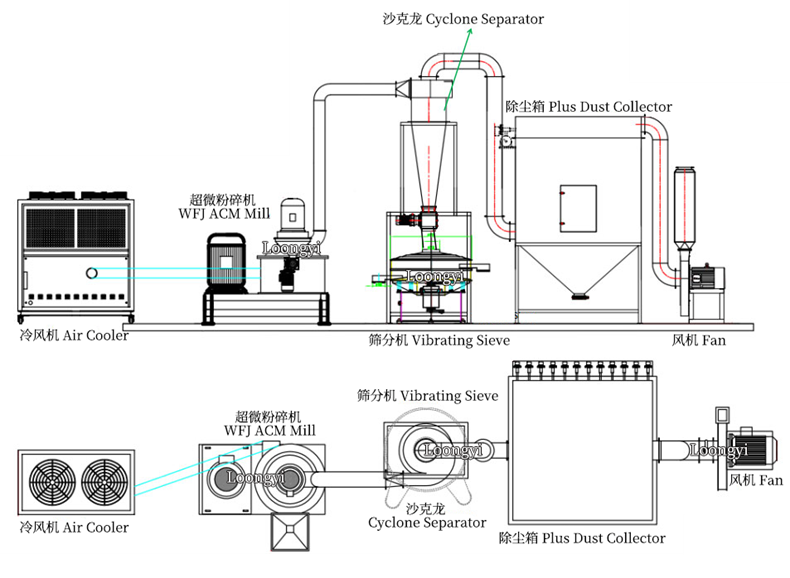

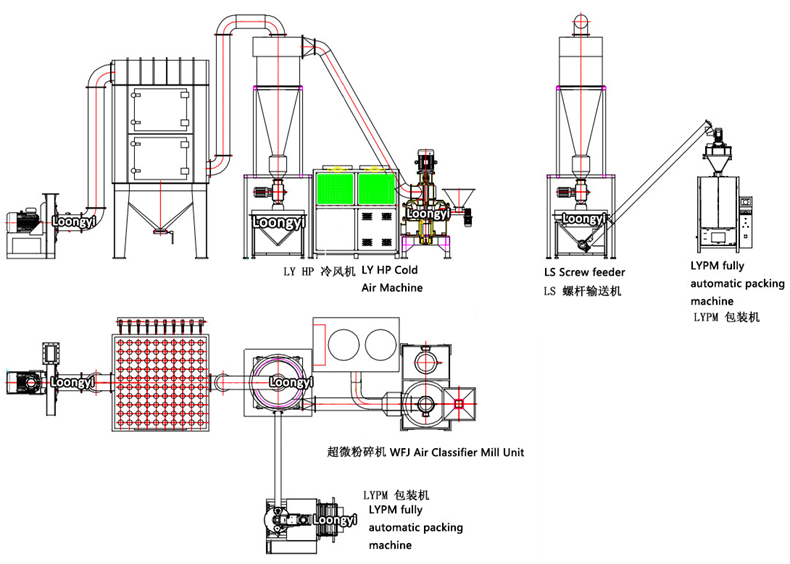

This mill is composed of grinding host, cyclone separator, pulse dust collector, blower, electric
control box,frame and pipes.
After materials are sent to the milling chamber by screw, it will be sheared and crushed by the
blade of high speed rotation. The powders will pass through the guide ring and enter the classifying
chamber.Under the action of aerodynamic and centrifugal force, powders larger than the graded
particle size will be thrown back to the milling chamber for further crushing. Powders smaller than
the critical diameter will enter the cyclone separator and a small part of the super fine dust will
enter the pulse dust collector.
Technical Data:
Model | Capacity kg/h | Feeding Size mm | Output Size mesh | Total Power kw | Main speed rpm | Overall size (LXWXH) mm | Weight kg |
WFJ-15 | 30-50 | ＜ 12 | 60-1000 | 15.2 | 5800 | 4200 × 1250 × 2700 | 850 |
WFJ-20 | 50-100 | ＜ 12 | 60-1000 | 25.1 | 4200 | 4700 × 1250 × 2900 | 1340 |
WFJ-30 | 100-300 | ＜ 12 | 60-1000 | 46 | 3800 | 6640 × 1300 × 3960 | 1800 |
WFJ-60 | 300-500 | ＜ 12 | 60-1000 | 84.15 | 3200 | 7500 × 2300 × 4530 | 3200 |
WFJ-80 | 500-800 | ＜ 12 | 60-1000 | 100.4 | 2800 | 8200 × 2500 × 4600 | 3800 |

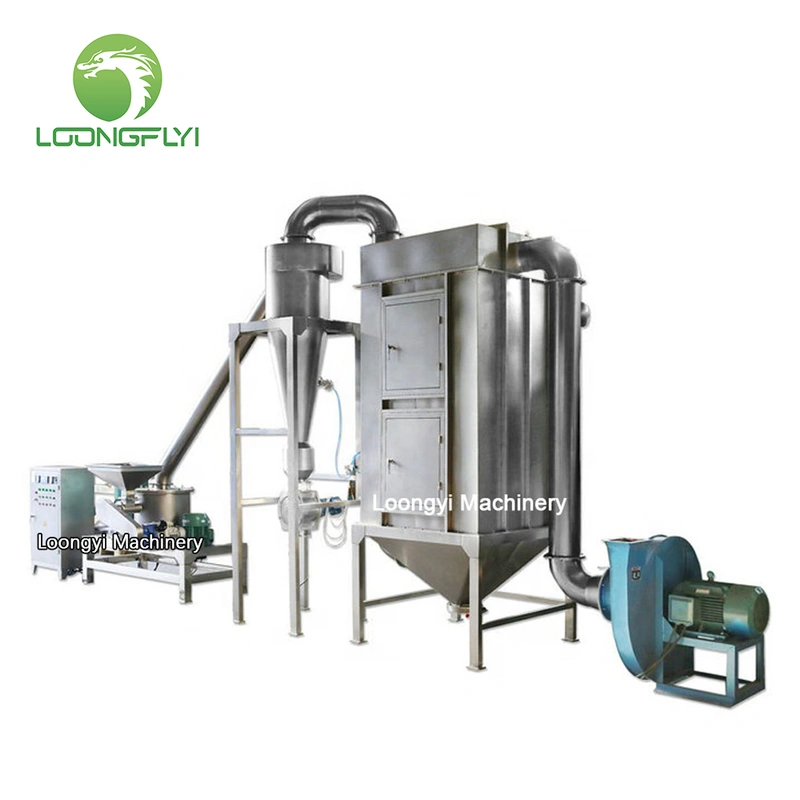

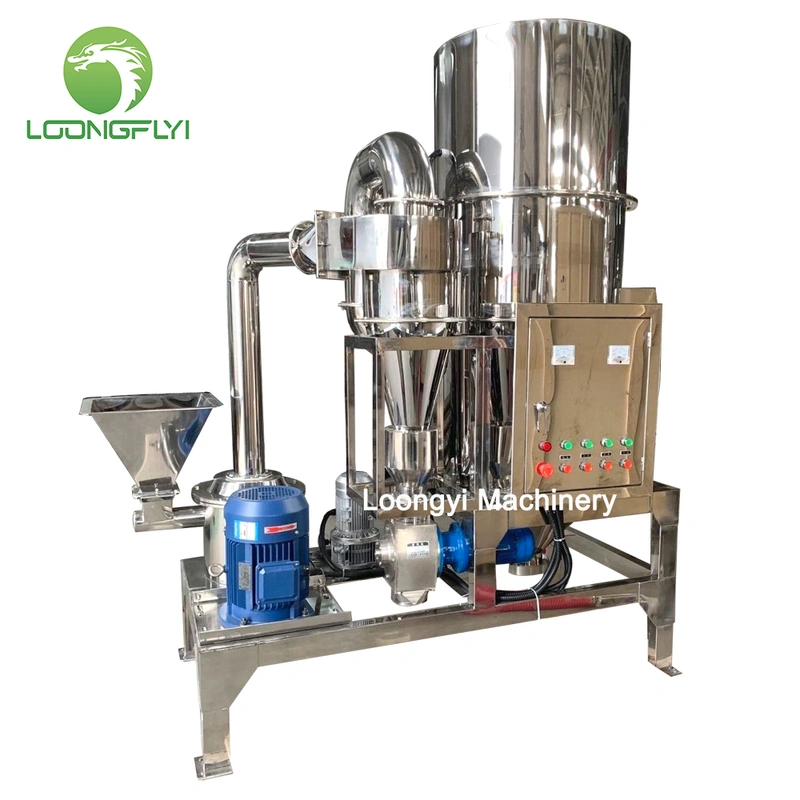

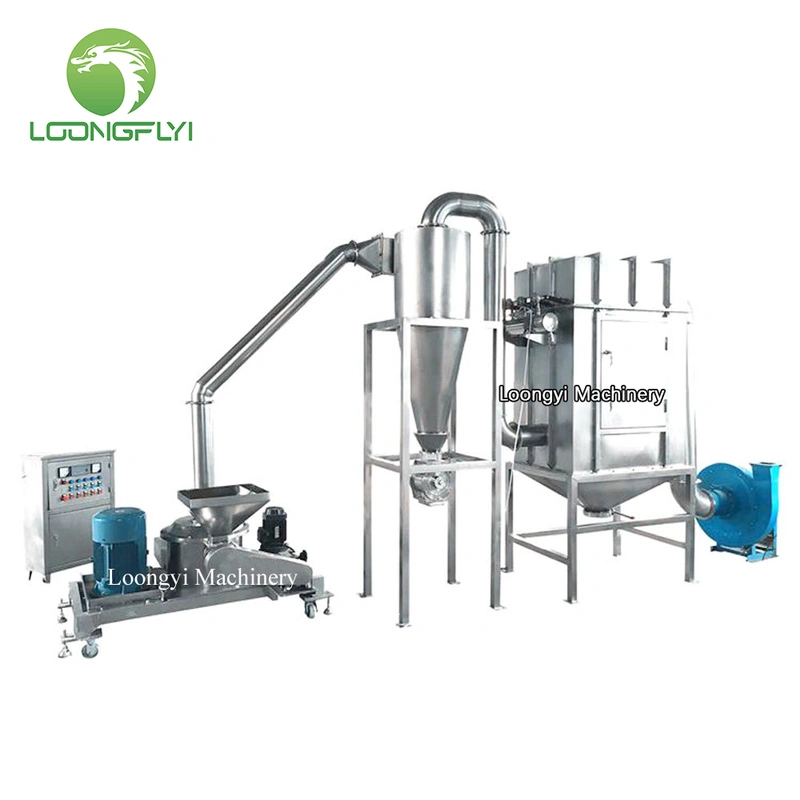

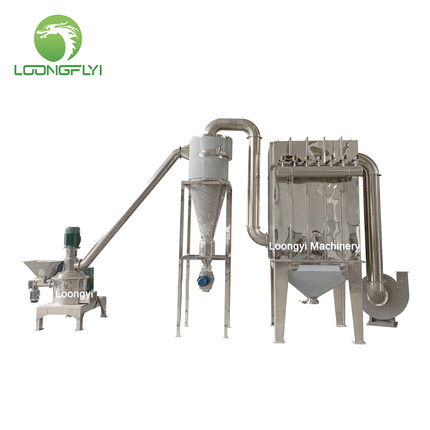

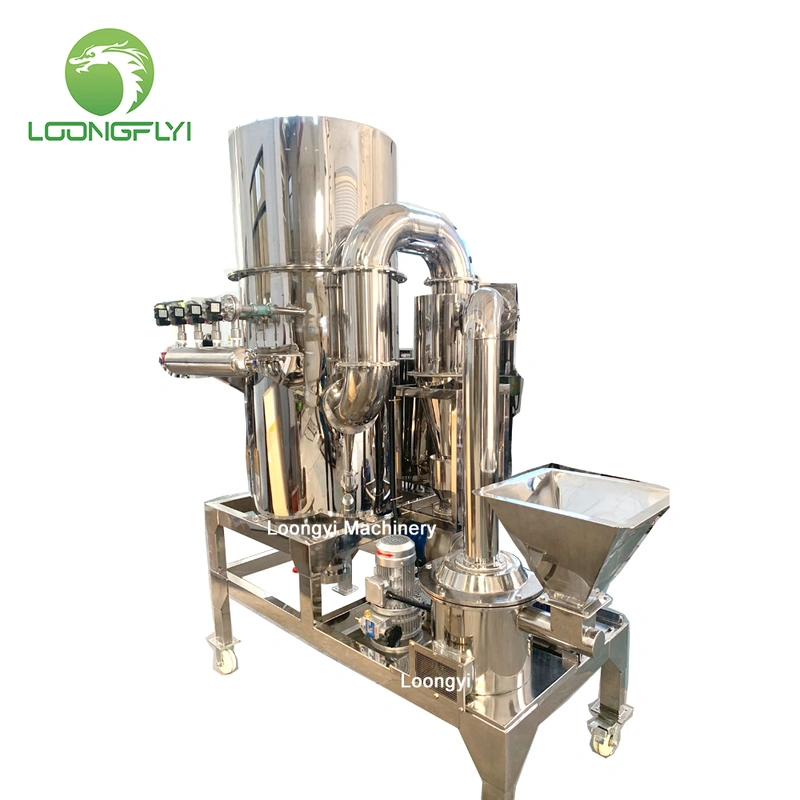

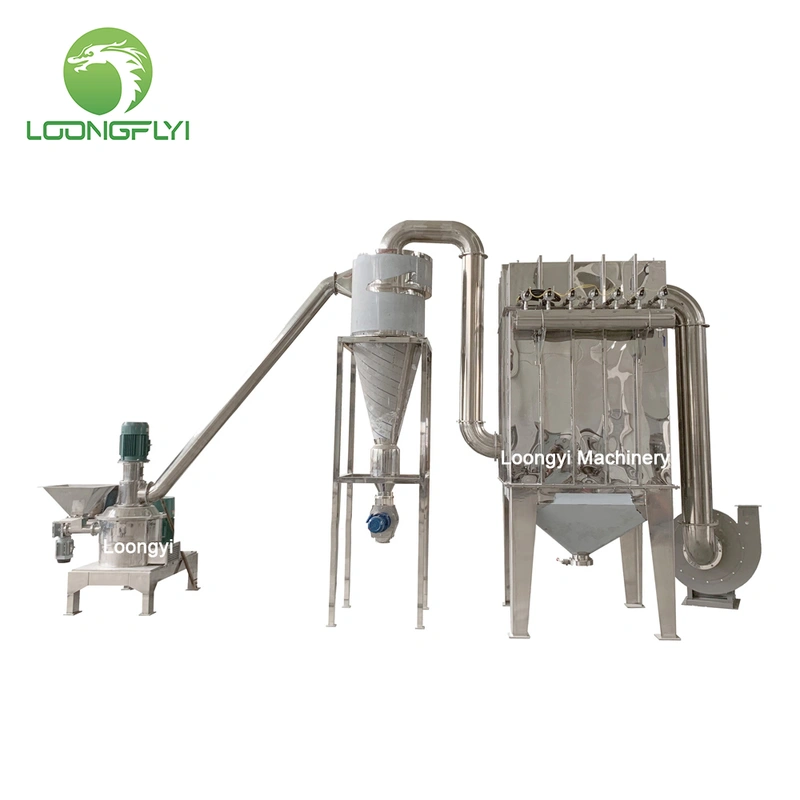

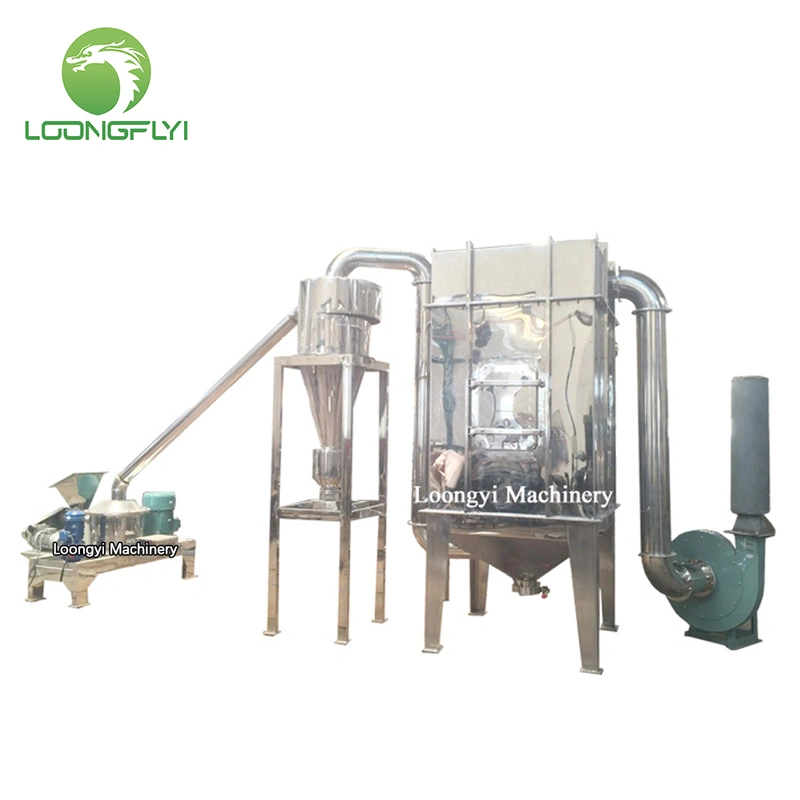

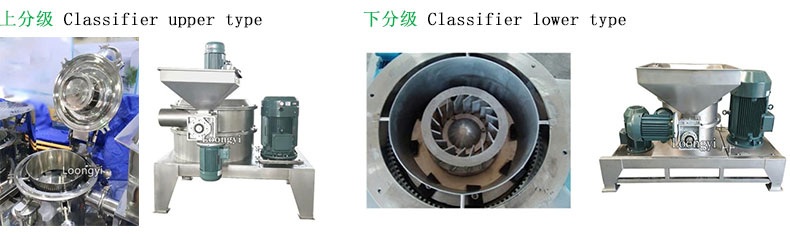

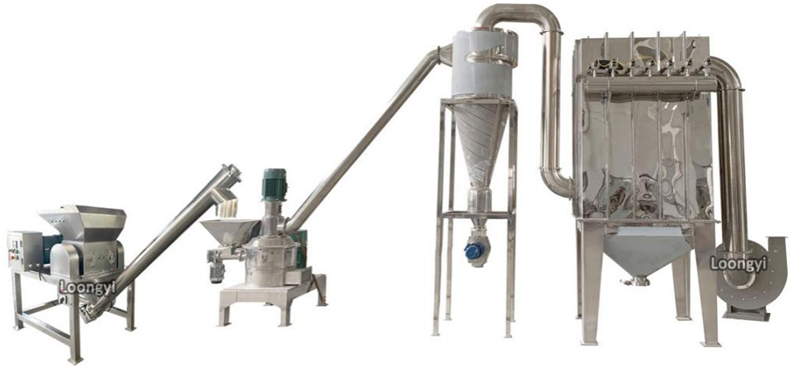

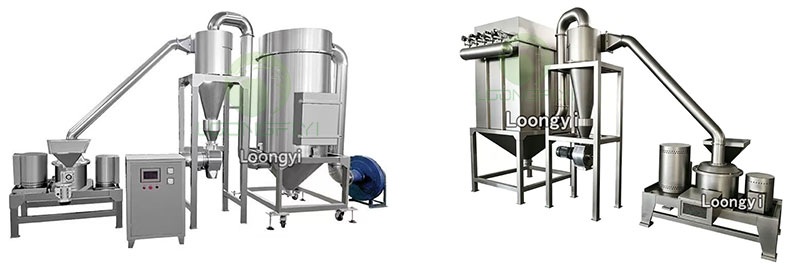

Product Pictures:

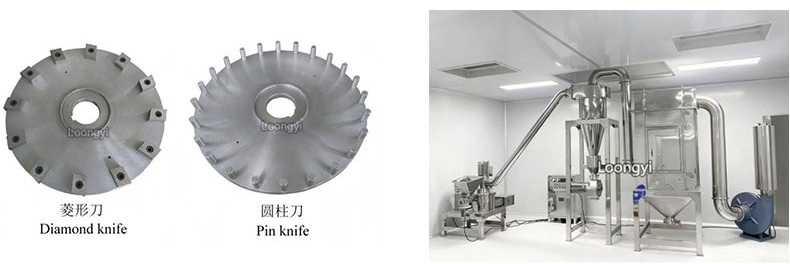

Two Types Blades:
